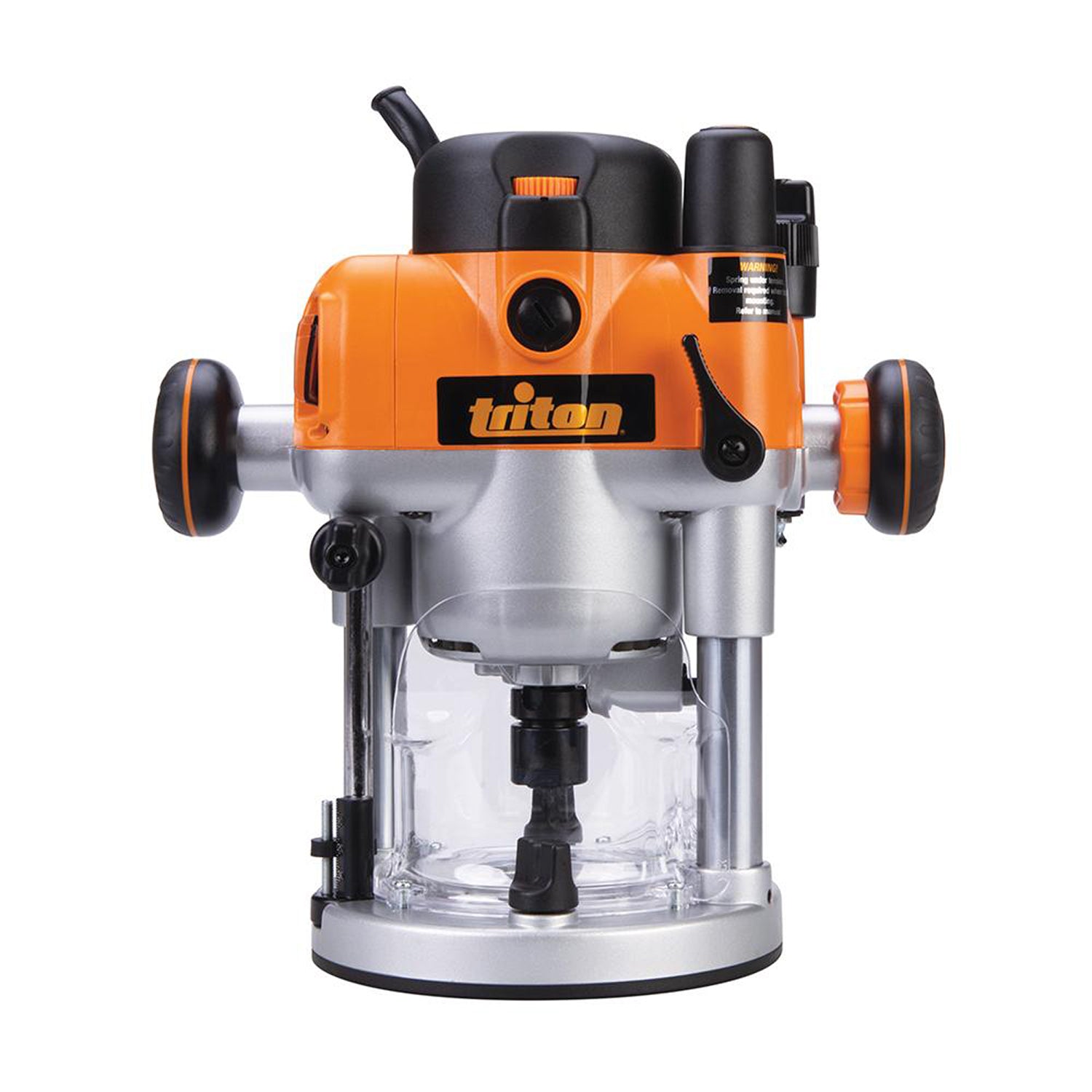

Dual Mode Precision Plunge Router 2400W
Powerful 2400W (3-1/4hp) electronically controlled motor.
- Single spanner ‘above table’ cutter changing.
- Automatic shaft lock and power lock-off during cutter change mode.
- Fast plunge depth adjustment with winder handle and
- fine depth adjustment with micro winder.
- Quick switching to conventional plunge mode.
- Removable plunge spring for easy lifting and adjustment.
- Effective dust port.
Product Features:
- 1/2' and 1/4' collet
- 2400Watt motor provides enough power for even the toughest timbers
- Automatic spindle lock engages only power switch cover is closed
- Soft start and variable speed provide the perfect speed for all cutter types
- Single button switches from plunge to fixed-based router with rack and pinion adjustment
- Micro winder enables continuous fine depth adjustment through the full plunge range
- Above the table, single wrench bit change for quick and easy bit changes
- Electronic speed control ensures a fine finish on all materials
- Removable plunge spring for easy bit adjustment when table mounted
- 3-stage turret with direct reading scales for precise pre-set cut depths
- Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
- Multi-function fence provides optimum control for hand-held use and circle cutting
- Quick-fit pins for fast fitment and removal from the fence and RTA300 Router Table
- Side air vents reduce the intake of dust into the motor casing when mounted upside-down in a router table
- Excellent dust extraction for a cleaner, safer working environment
- Easy access brushes allow the end user to change worn brushes
- Single wrench bit change through the base is achieved with the automatic spindle lock
- Safety Switch Shutter locks closed in bit-change mode to prevent router being switched on
| Description | Specification |
| Power | 2400W |
| No Load Speed | 21,000rpm |
| Speed Maintenance Under Load | 8,000 - 21,000rpm |
| Electronic Speed Maintenance | Yes |
| Power On Indicator | Neon |
| Plunge Range | 0 - 68mm |
| Depth Adjustment | Micro winder |
| Safety Power Switch | Yes |
| Sound Pressure LP | 89.8 dB |
| Sound Power LW | 100.8 dB |
| Compatible with: | DCA300 |
| RTA300 | |
| BJA300 | |
| Product Height | 310mm |
| Product Length | 180mm |
| Product Width | 300mm |
| Product Weight | 6.3kg |
