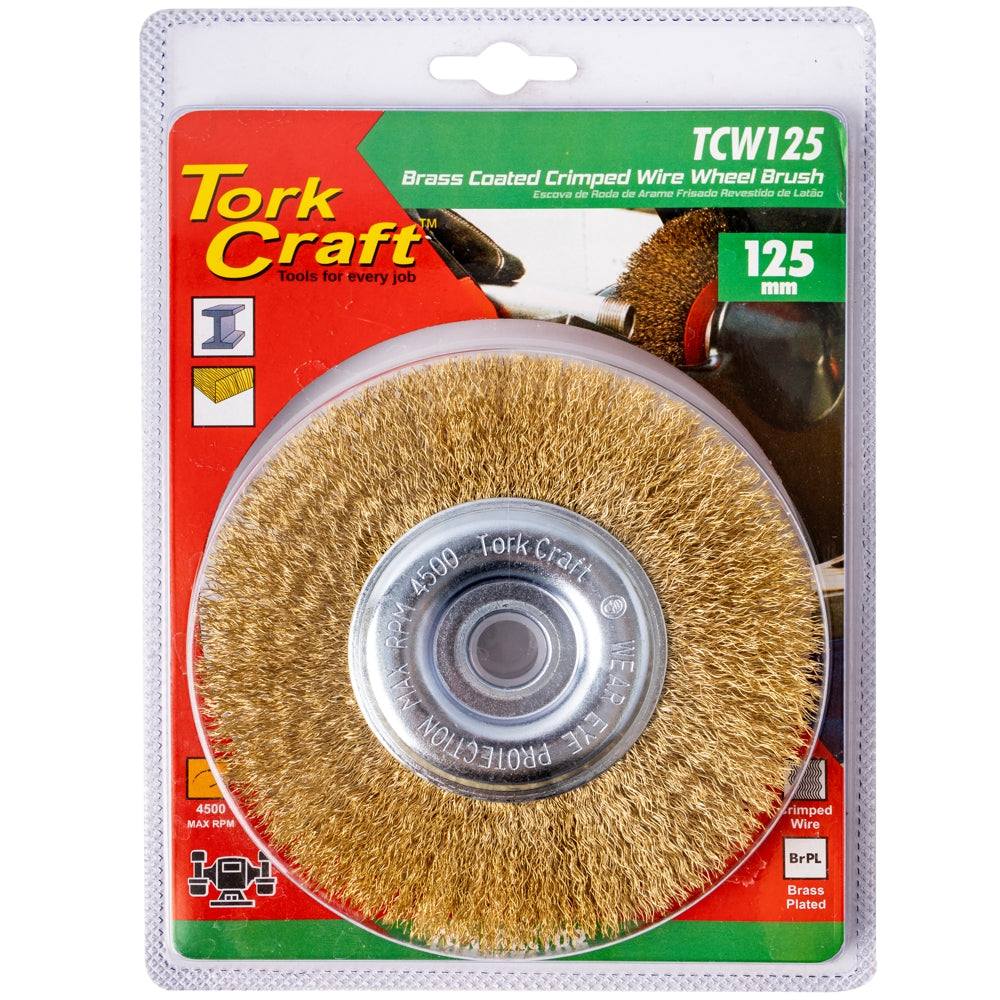

Wire Wheel Brush - Brass
Arbor: 16mm
MAX RPM: 4 500
For light duty cleaning, paint removal & rust removal.
Application:
- Light duty cleaning, paint & rust removal
- Automotive
- Construction
- Manufacturing
- DIY
Features
- Engraved graduations of 1mm on ruler.
- Metric measurements.
- Square and protractor head comes with a built-in level.
- Marking and angle verification.
- Square head has a screw in Scriber pin located in the square head.
How to assemble:
- Unplug the bench grinder from the power supply.
- Remove the side cover to gain access to the flange washers.
- Remove the flange washers by locking the axle on either side and loosening the hex nuts.
- Fit the reducing bushes if required on the wire wheel and mount on the spindle.
- Fit wire wheel on spindle and tighten properly.
| Description | Specification |
| Packaging Type | Hanging Double Blister |
| Package Dimensions | 220(L) x 160(W) x 30(H)mm |
| Package Weight | 200g |
| Wheel Weight | 185g |
| Material | Brass plated crimped wire |
| Compatible Tool | Bench Grinder |
| Wire wheel diameter | 125mm |
| Wire length | 29mm |
| Wheel Width | 14-16mm |
| Wire Thickness | 0.2mm |
| Reducing Bush | 16 - 12.7mm (1/2") |
| Arbor | 16mm |
| Max RPM | 4 500 |
