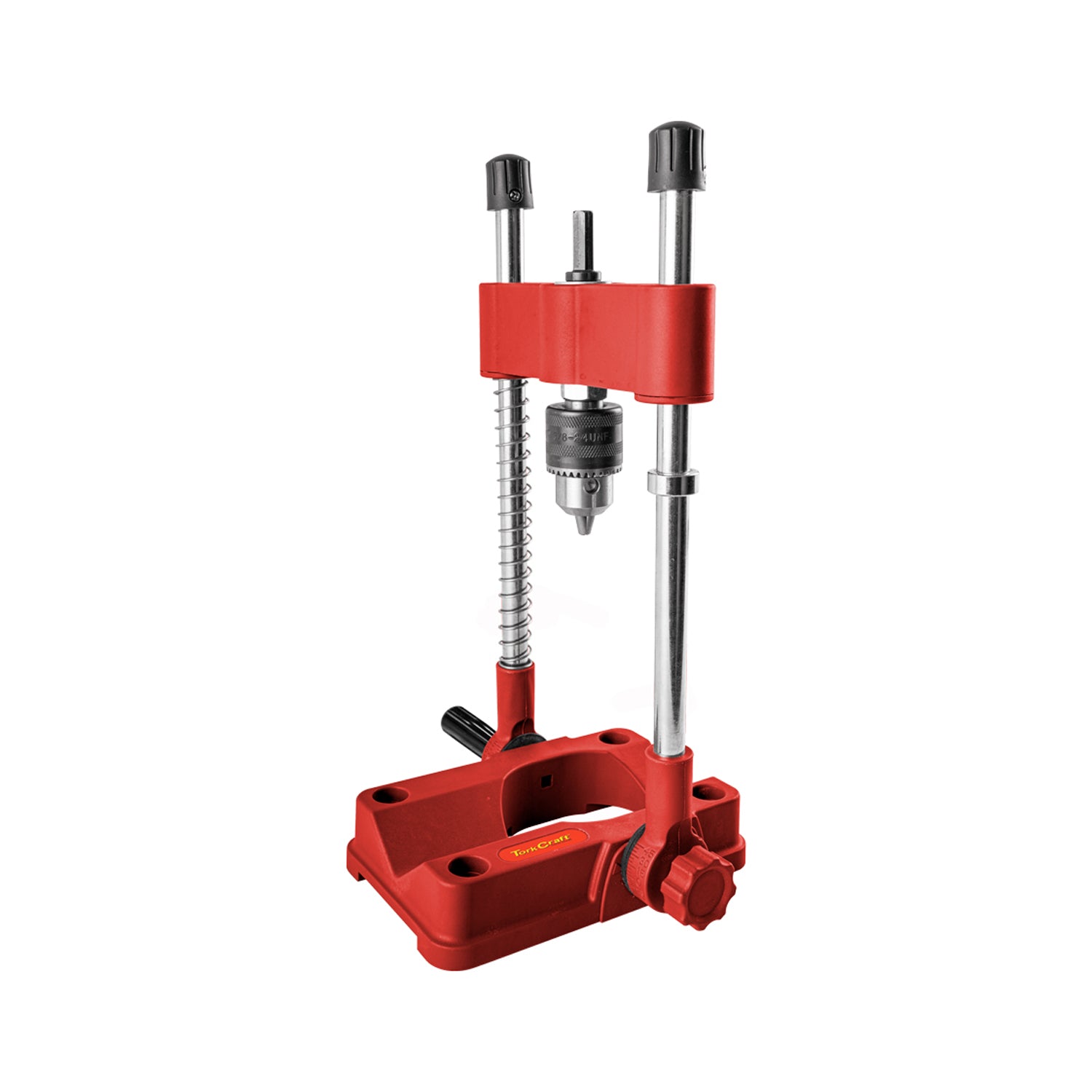

MULTI ANGLE PRECISION DRILL GUIDE WITH 10MM CHUCK
Features
- 10 mm chuck included for mounting standard drills or bits up to 10 mm diameter.
- Adjustable angle drilling — supports 0°, 15°, 30° and 45° drilling angles for versatility.
- Up to 160 mm plunge depth for deep holes in wooden, metal or pipe stock.
- V-groove base for secure positioning on round or cylindrical workpieces such as pipes.
- Portable and sturdy build — suitable for workshop, site or mobile use.
- Dual locking knobs to clamp drill securely and ensure stable, accurate drilling.
Benefits
- Consistent accurate holes: ensures straight or angled drilling with repeatable precision — perfect for joinery, metalwork or pipe-fitting jobs.
- Versatile across materials: works for wood, metal, PVC or pipework — ideal for workshops that handle different materials.
- Safe and controlled drilling: reduces the risk of bit wander or misalignment that comes with hand-held drilling, improving finish and reducing mistakes.
- Ideal for angled or awkward drilling positions: adjustable angles let you drill non-vertical holes without improvised supports or awkward setups.
- Portable convenience: compact enough for mobile work yet sturdy enough for workshop use — good for maintenance, on-site work or DIY.
Extra Information
- Chuck capacity: 1.5 mm to 10 mm (fits standard drill bits and 8 mm hex shank bits).
- Workpiece width capacity: up to approx. 95 mm at 0° angle — check fit before drilling.
- Includes all mounting hardware — bolts, nuts, washers, Allen key and chuck key — ready to use out of the box.
- Weight: approx. 1.48 kg; overall kit dimensions: 400 × 160 × 47 mm (for storage/transport reference).
- Suitable for both workshop bench mounting and portable use on-site or in field work.
Pro Tip
- Mount a 10 mm carbide-tipped or HSS bit when drilling metal or hard materials — helps maintain bit life and clean cuts.
- Use the V-groove base when working on round stock or pipes to prevent slippage and ensure perpendicular entry when drilling.
- Clamp the workpiece securely before drilling — the guide improves accuracy but any movement in the workpiece will still cause misalignment.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCV04043-1 |
| Product Type | Multi-Angle Precision Drill Guide with 10 mm Chuck |
| Chuck capacity | 1.5 mm – 10 mm |
| Supported drilling angles | 0°, 15°, 30°, 45° |
| Maximum plunge depth | Approx. 160 mm |
| Workpiece width capacity (at 0°) | Up to approx. 95 mm |
| Kit weight | Approx. 1.48 kg |
| Kit dimensions (transport/storage) | 400 × 160 × 47 mm |
| Included components | Drill guide body, 10 mm steel chuck, mounting hardware, chuck key, Allen key |
Safety
- Always wear eye, ear and dust protection when drilling — especially when working with metal or concrete.
- Clamp workpiece securely before drilling — never hold by hand while using the guide.
- Ensure drill guide is mounted firmly or base is stable before starting; avoid side-loading or forcing the drill bit.
- Use appropriate drill bits for material — carbide or HSS for metal, wood bits for timber/plastics.
