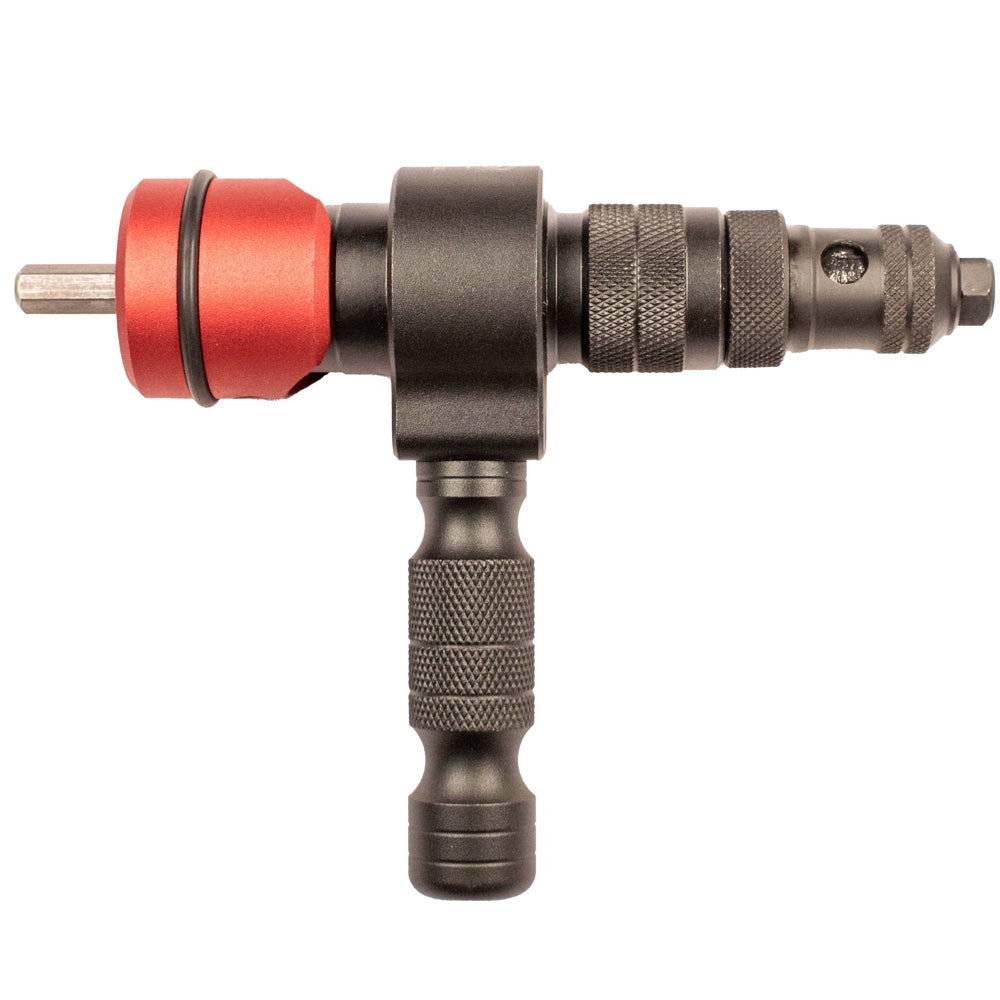

TorkCraft - Rivet Drill Adapter With Handle
Application:
Blind riveting in all materials
- Shank Size: Hex shank 8mm
- Robust ultra-heavy-duty design
- Set up to 6.4mm Stainless steel and structural rivets
- Side handle assists with tool handling and grip
- Recommended Drive Speed: <20 RPM
Contents Included
- 2.4, 3.2, 4.0, 4.8, 6.0, 6.4mm Nose Pieces
- 12mm Combination rachet ring wrench & open ended
- 17- & 12-mm flat wrench(combined)
Assembling
- Insert your riveter into the drill, ensure it is properly secured.
- Attach the right size nose piece depending on the size of blind rivet needed for the application.
- Tighten the nose piece with the wrench.
- Set the rivet not exceeding 20RPM.
WARNING: Make sure the material is
properly fixed or clamped before
riveting.
Features
- Four rivet sizes, including 2.4 mm, 3.2 mm, 4.0 mm and 4.8 mm nose pieces, cover a wide working range.
- 8 mm shank. Fits most cordless and corded drills without adapters.
- Durable construction, Heavy-duty body with hardened steel nose pieces for long service life.
- Side handle improves control and stability during riveting.
Benefits
- Cost-effective: Use your existing drill instead of a dedicated riveter.
- Fast and efficient: Quick rivet installation improves workflow and productivity.
- Versatile: Suitable for metal fabrication, repairs, installations and workshop use.
- Reliable performance: Consistent pull action delivers clean, secure rivets every time.
Extra Information
- Recommended to operate at low speed to prevent damage to the rivet or mandrel.
- Select the correct nose piece for the rivet diameter before installation.
- Always secure the workpiece before riveting to ensure accuracy and safety.
Pro Tip
- Label each nose piece with colour tape to speed up switching between rivet sizes and prevent mistakes during fast-paced work.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCRIV003 |
| Product Type | Drill Pop Riveter |
| Shank Size | 8 mm |
| Rivet Sizes | 2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm |
| Body Material | Aluminium alloy |
| Nose Piece Material | Hardened steel |
| Application | Blind rivet installation |
Safety
- Wear eye, ear and hand protection when installing rivets.
- Ensure the drill is switched off or battery removed before changing nose pieces.
- Operate the drill at low speed during rivet installation to avoid mandrel breakage.
- Keep hands clear of moving components during operation.
- Inspect nose pieces regularly and replace worn components promptly.
