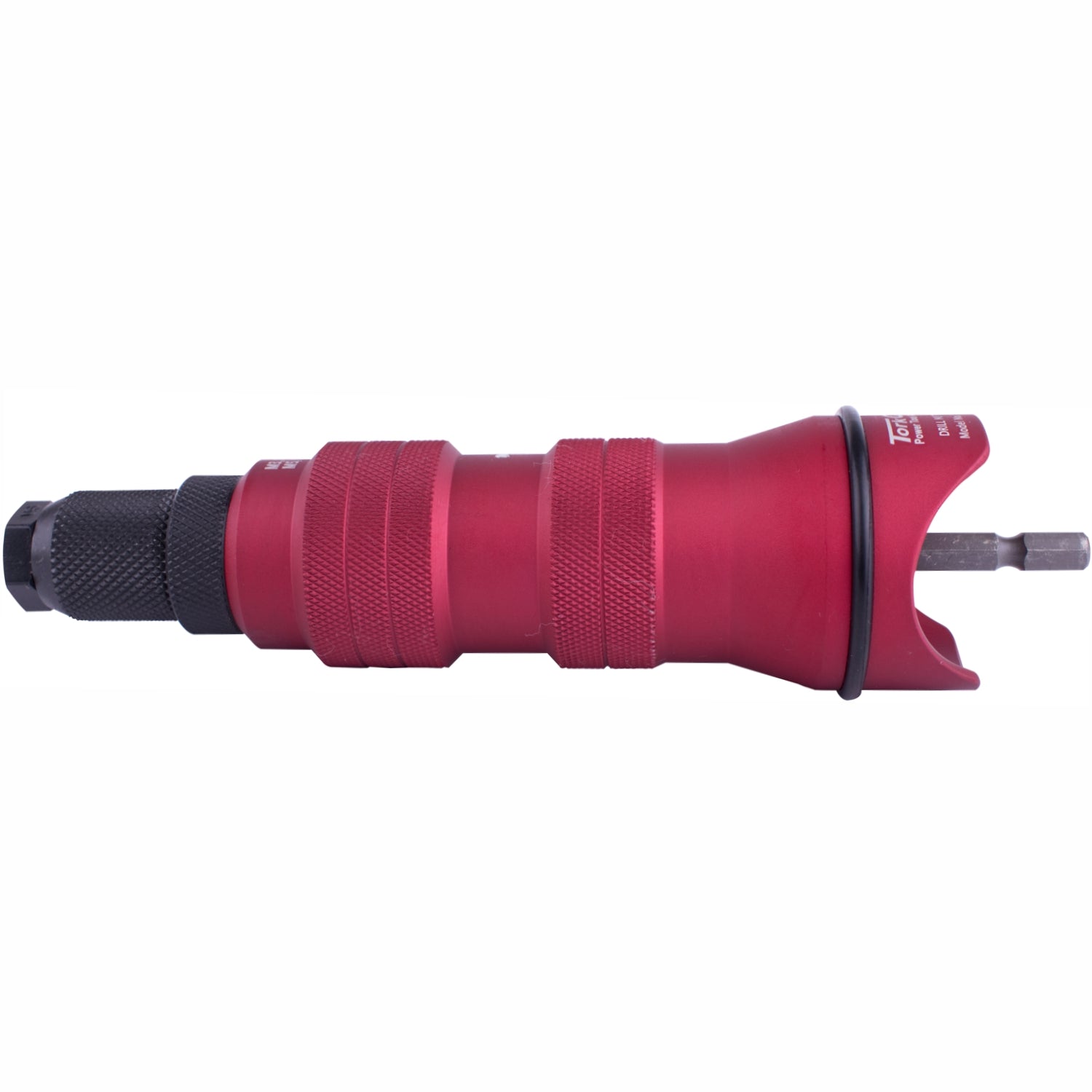

DRILL NUT RIVETER - M3/M4/M5/M6
A drill nut riveter is a specialized tool designed to quickly and efficiently install threaded inserts, known as rivet nuts, into various materials. It combines the functionality of a drill and a riveter. It is a powerful tool that simplifies the process of creating threaded holes in various materials.
Application:
- Can be used to join materials for both air riveting and electric riveting.
- Inserting a thread nut in thin material or tubing.
- Construction
- Automotive
- Aircraft maintenance
- Metal fabrication
- Electrical and electronics
- Furniture assembly
- DIY
Features
- Multi-size support (M3, M4, M5, M6) One tool covers the most common rivet nut thread sizes for metal fabricators, installers and maintenance teams.
- ¼″ hex shank (6.35 mm) Fits into standard drill drivers and chucks—no special tool holder needed.
- Low-speed recommendation (< 240 RPM) Ensures control and proper setting of rivet nuts without thread stripping or flange damage.
- Includes nose pieces & threaded mandrels Everything you need for the four sizes is typically included so you’re job-ready from the box.
Benefits
- Saves tool investment: Use your existing drill instead of buying a dedicated rivet-nut gun.
- Increases productivity: Rapid insertion of threaded inserts into multiple materials with one tool change-over.
- Improves fastening quality: Correct pull stroke and dedicated mandrels nose pieces minimise failure, loose threads or flares.
- Versatile for site or workshop: Portable, lightweight design fits into tight spaces and on-site maintenance tasks.
Extra Information
- Before operation, ensure the workpiece is securely clamped and the drill driver is set to low speed and correct torque. Charts provided in the manual help determine the working torque for each rivet size. :contentReference[oaicite:0]{index=0}
- Keep the mandrels and nose pieces clean and lightly lubricated between uses for smooth operation and extended component life. :contentReference[oaicite:1]{index=1}
- Ideal for metal fabrication, HVAC, electrical enclosures, maintenance and installation tasks where strong threaded inserts are needed in thin materials.
Pro Tip
- Mark and set your drill’s clutch or torque setting for each rivet-nut size (M3, M4, etc). Record a sample working pull for each size so you can switch sizes quickly with consistent results and less rework.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCRIV002 |
| Product Type | Drill Nut Riveter – M3/M4/M5/M6 |
| Shank Size | ¼″ Hex (6.35 mm) |
| Rivet Nut Sizes Supported | M3, M4, M5, M6 |
| Recommended Speed | < 240 RPM |
| Maximum Stroke | 18 mm |
| Body Material | Anodised aluminium, steel nose pieces |
Safety
- Wear eye, ear and hand protection when operating this tool and installing rivet nuts.
- Always clamp the workpiece securely—unclamped parts may rotate or eject under pull load.
- Use low speed and correct torque settings. Excessive torque or speed may strip threads, distort flanges or damage the tool.
- Inspect nose pieces, mandrels and body before use. Replace worn or bent components immediately.
- Follow the manufacturer’s instructions for tool setup, changing mandels/nose pieces and maintenance.
