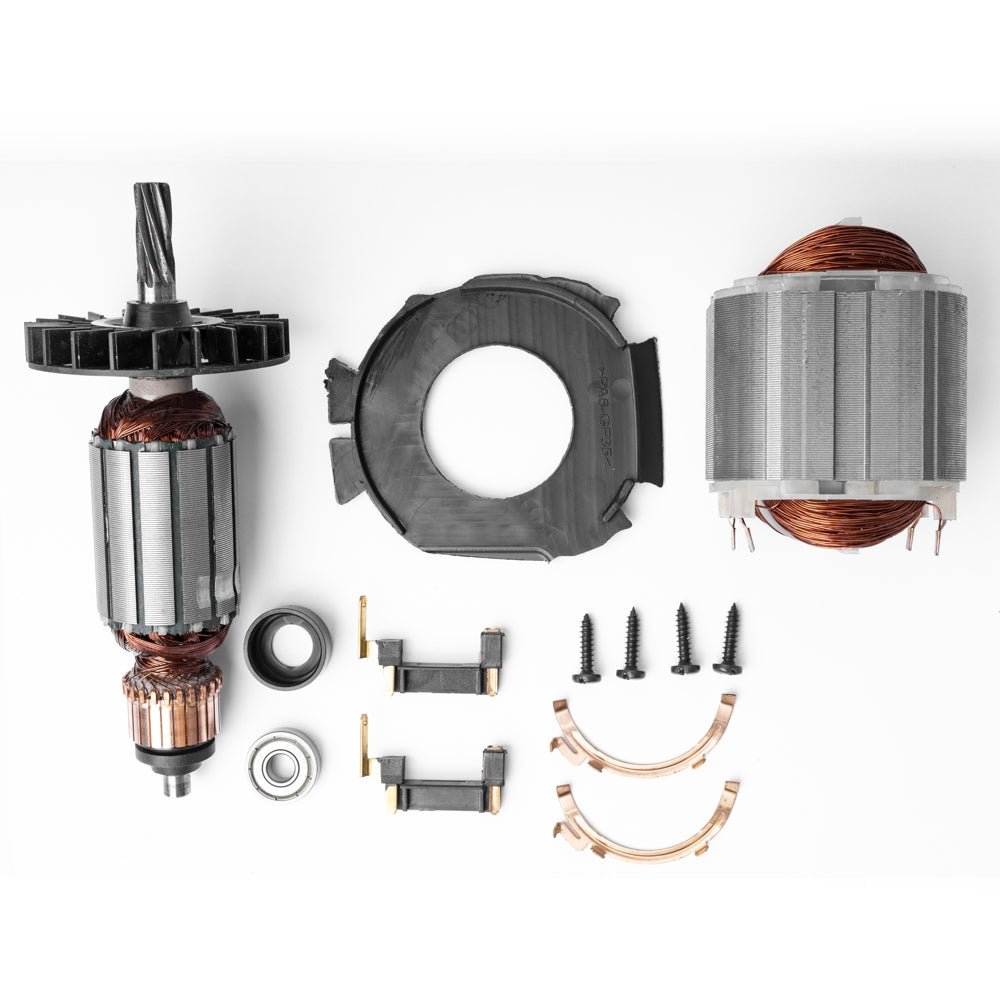

AMATURE & STATORE COMPL. (24-30/32) FOR TCRH0800

Features

• Complete armature and stator set Replaces the primary motor drive components as a matched service kit.
• Parts-diagram referenced fitment Covers reference parts (24–30 and 32) for accurate servicing on the TCRH0800.
• Rebuild-ready motor solution Ideal when the original motor shows burnt windings, heavy sparking, or significant power loss.

Benefits

• Restores motor performance: Helps bring back torque, speed stability and dependable drilling output.
• Reduces overheating and erratic running: Replacing damaged windings can improve efficiency and running behaviour.
• Supports a long-lasting repair: Refreshing both motor core components helps reduce the chance of repeat electrical failure.

Extra Information

• This service kit covers the armature and stator components referenced as parts (24–30 and 32) for the TCRH0800.
• Common replacement signs include burning smell, discoloured windings, loss of power, heavy brush sparking, or tripping under load.
• For best results, inspect and replace related wear items during the same service (bearings, carbon brushes, brush holders and wiring condition where applicable).

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or reassembly work.
• Wear eye, ear and dust protection when testing rotary hammers and when drilling masonry.
• Keep grease and oil away from electrical contact areas such as brushes and commutator surfaces.
• After reassembly, test the tool safely at no load first, then progress to light-duty work before returning to full operation.
