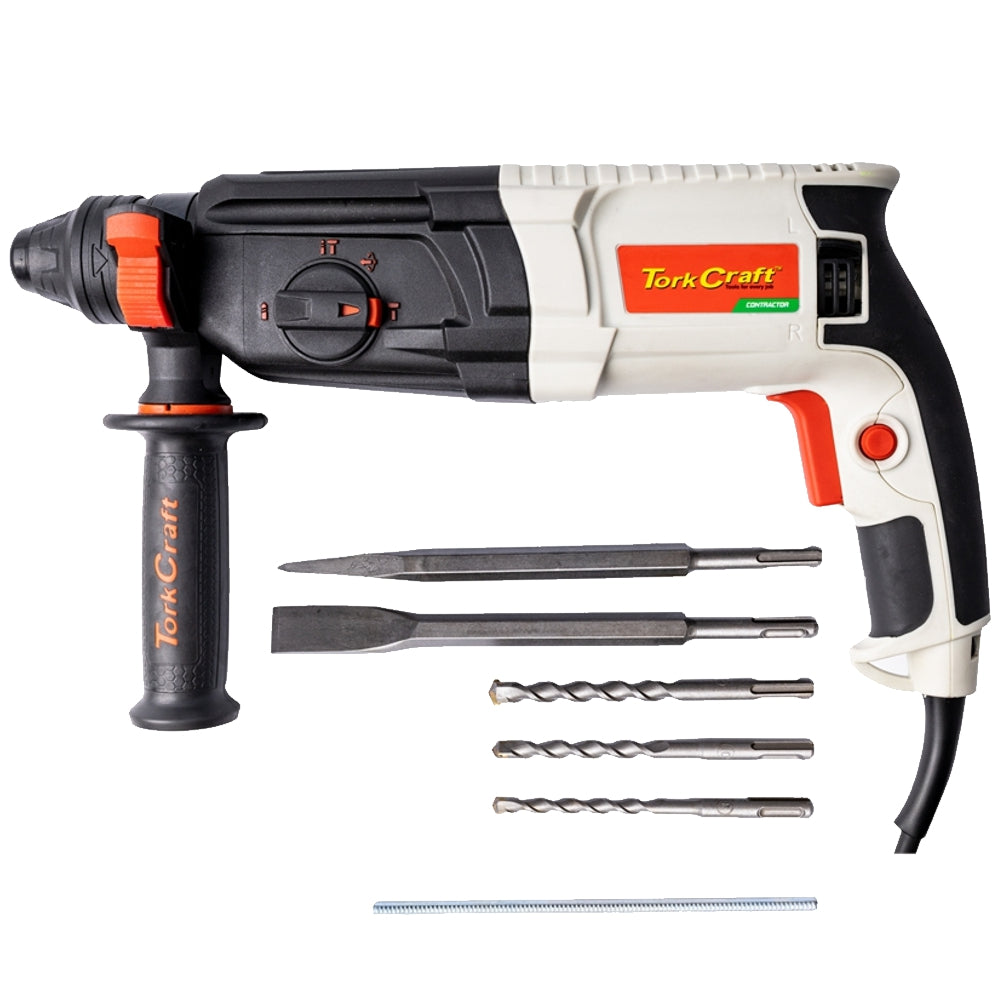

ROT. HAMMER 800W 220V 2.8J SDS-PLUS 4 FUNC 5500 IPM

Installing chisel bits and drill bits

• For assembly, pull back the fastening sleeve and hold. Push and rotate the dust-free accessory into the tool holder as far as it will go. The tool will lock automatically. Check that it has locked by pulling the tool.
• To remove the SDS accessory, pull back the fastening sleeve and remove the accessory.

Depth guide

• Insert the required drill bit. Fit the depth stop into the hole of the auxiliary handle and set the required depth.

Rotation setting

• R-BOTTOM (Forward) = To select reverse rotation, push the lever down on the top side of the handle.
• L-TOP (Reverse) = to select forward rotation, release the on/off switch and push the lever up on the top side of the handle.

Fitting the auxiliary handle

• Loosen the auxiliary handle by unscrewing it. Slide the auxiliary handle clamp over the collar behind the bit holder. Rotate the side handle to the desired position and tighten the handle.

Specifications

WARNING: Never lay the drill down before the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power
tool out of your control or potentially damage the tool and work surface.
Regularly clean the hammer drill air vents, by using an air duster.
