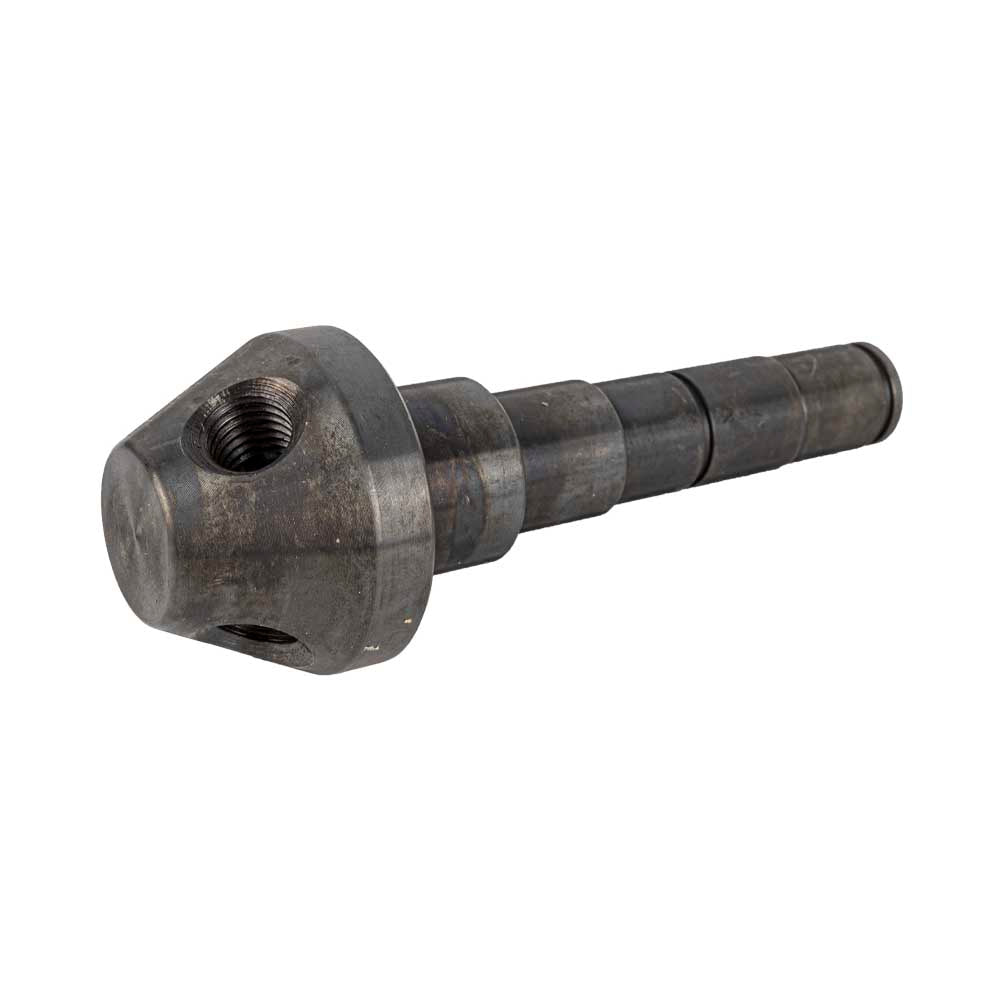

PINION SHAFT & KEY (17/18) STAND SERVICE KIT

Features

• Pinion shaft and key set Replaces core feed drive components specified in the stand service kit.
• Parts-diagram referenced fitment Covers stand reference parts (17 and 18) for accurate servicing.
• Service-ready replacement Ideal when the feed feels loose, skips, or shows wear in the pinion drive area.

Benefits

• Restores positive feed engagement: Helps eliminate skipping and improves consistent travel during drilling.
• Improves control and accuracy: A tighter feed mechanism supports smoother cutting and better hole quality.
• Reduces wear and chatter: Replacing worn drive parts can reduce vibration and knock-on wear in the stand system.

Extra Information

• This stand service kit covers the pinion shaft and key referenced as parts (17 and 18) on the applicable parts diagram.
• Recommended if you notice play at the feed handle, uneven travel, skipping teeth, or visible wear on the shaft/key interfaces.
• During installation, clean and lightly lubricate the feed mechanism to support smooth movement and reduce future wear.

Specifications

Safety

• Disconnect the tool from the power supply before servicing stand components or moving parts.
• Wear eye, ear and dust protection when cleaning parts and handling metal components.
• Keep fingers clear of gears and pinch points when checking movement—feed mechanisms can trap fingers.
• After reassembly, ensure all fasteners are secure and test movement with the tool off before returning to drilling.
