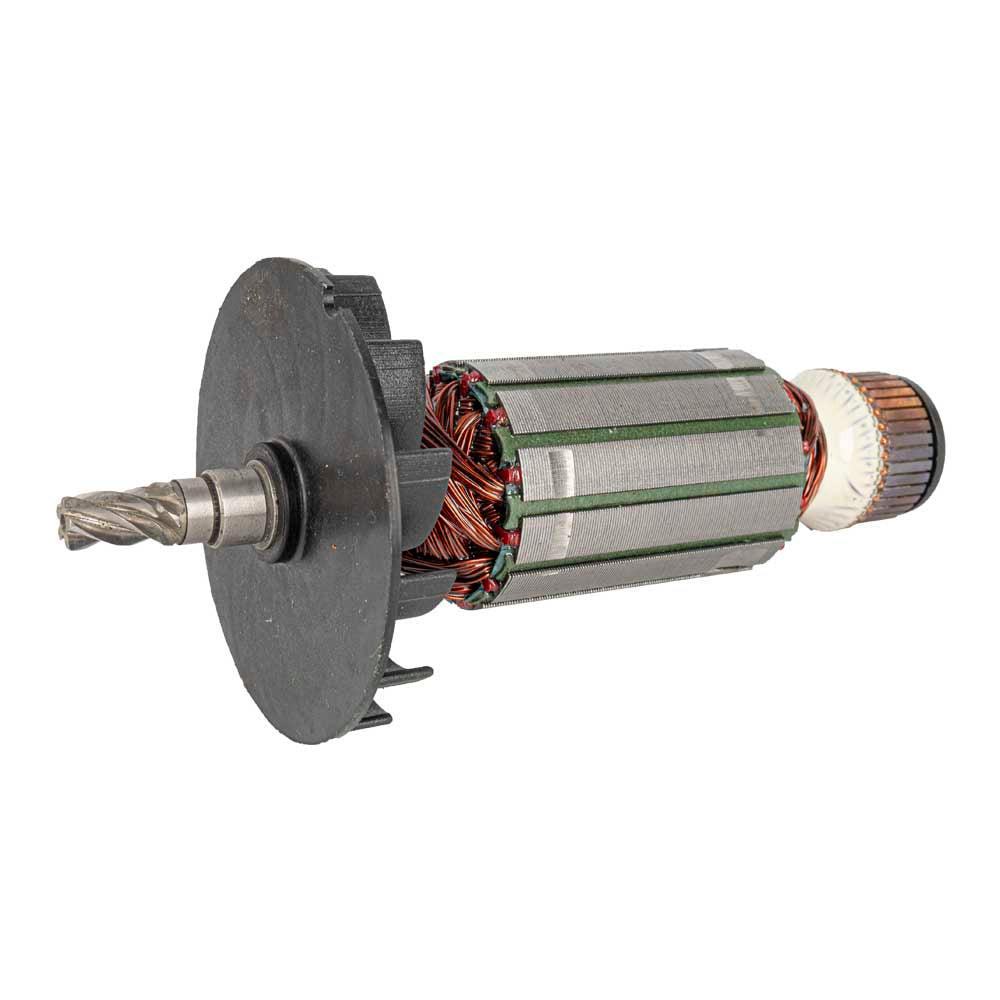

ARMATURE (48) MOTOR SERVICE KIT

Features

• Replacement armature component Designed to replace the motor’s rotating core referenced as part (48) on the applicable diagram.
• Rebuild and repair ready Suitable when the motor shows loss of power, rough running, overheating, or excessive sparking.
• TCMD0055QE fitment Intended for TCMD0055QE mag base drill motor applications where this armature is specified.

Benefits

• Restores motor performance: Helps bring back stronger, smoother rotation and more predictable drilling results.
• Reduces rough running symptoms: Replacing a damaged armature can help resolve vibration, noise and inconsistent drive.
• Supports reliable servicing: A fresh armature forms the foundation of a long-lasting motor rebuild.

Extra Information

• This motor service kit covers the armature referenced as part (48) on the applicable parts diagram.
• Common replacement signs include burnt/discoloured commutator, heavy sparking at brushes, loss of torque, or tripping under load.
• For best results, inspect/replace related wear items during the same service (bearings, carbon brushes and seals where applicable).

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or reassembly work.
• Wear eye, ear and dust protection when cleaning components and handling carbon dust or swarf.
• Keep oils/grease off the commutator and brush contact surfaces for proper electrical contact.
• After installation, test the tool safely with no load first, then progress gradually to confirm correct operation before heavy drilling.
