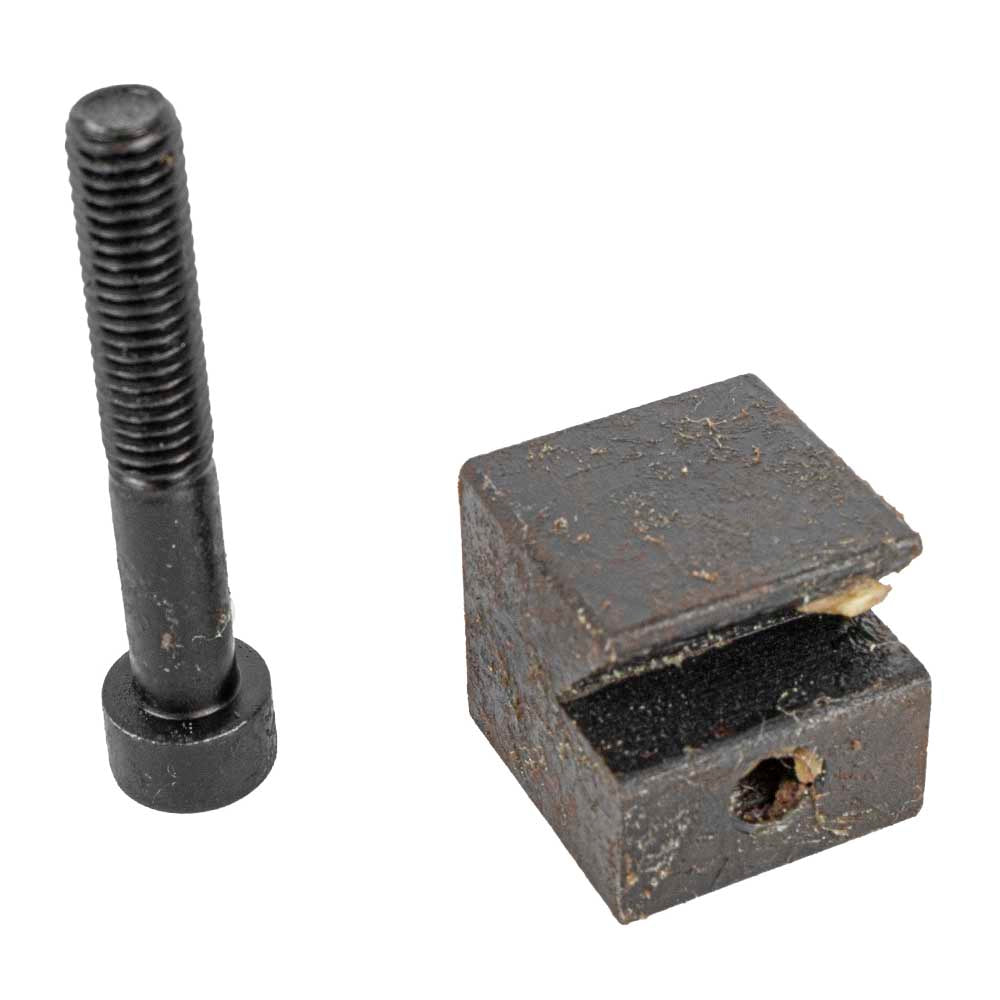

DOVE TAIL BLOCK WITH SCREW (41/42) MOTOR SERVICE KIT

Features

• Dove tail block with screw Replaces the locating/clamping block and fastening hardware specified in the motor service kit.
• Parts-diagram referenced fitment Covers reference parts (41 and 42) for accurate servicing.
• Service-ready replacement Ideal when adjustment won’t hold, the interface feels loose, or the screw is worn/stripped.

Benefits

• Helps improve stability: Restores a more secure fit to reduce unwanted movement during drilling.
• Supports better accuracy: A firm dovetail interface helps maintain consistent alignment for cleaner results.
• Improves adjustment feel: Replacing worn parts can reduce play and make clamping more predictable.

Extra Information

• This motor service kit covers the dove tail block and screw components referenced as parts (41 and 42) on the applicable parts diagram.
• Recommended when clamping is weak, movement is noticeable during operation, or the dovetail faces show scoring and wear.
• Clean mating surfaces before installation and ensure the screw tightens smoothly without cross-threading.

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or adjustment work.
• Wear eye, ear and dust protection when cleaning parts and handling metal components.
• Keep hands clear of pinch points when checking sliding and clamping action—dovetail interfaces can trap fingers.
• After installation, ensure all fasteners are secure and test movement with the tool switched off before drilling.
