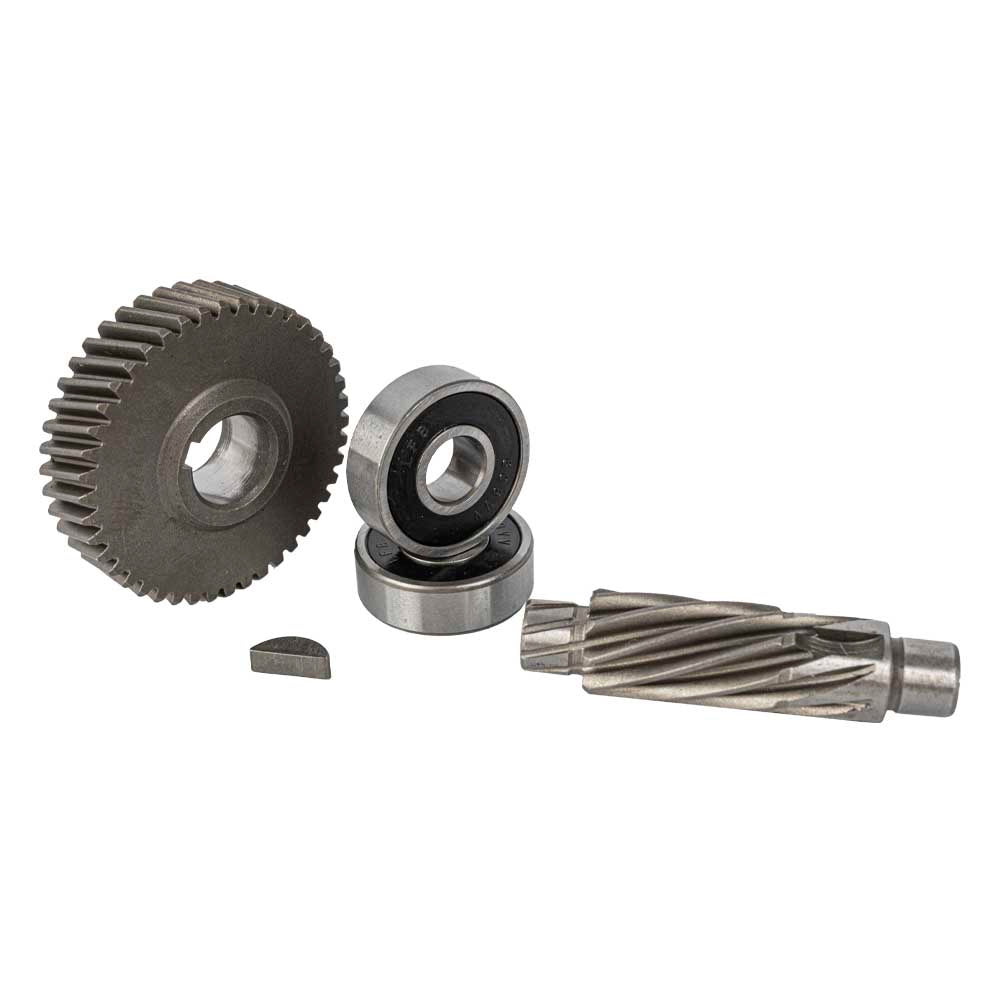

GEAR & SHAFT FOR ARMATURE COMPL. ( 25-29) MOTOR SERVICE KIT

Features

• Complete armature drive assembly Replaces the gear and shaft components as a matched set for correct fit and function.
• Diagram-referenced fitment Matches parts (25–29) in the TCMD0035 motor service layout.
• Restores gear engagement Helps eliminate slipping, grinding, and uneven power transfer caused by worn drive parts.
• Genuine Tork Craft service kit Proper-fit replacement parts for professional repairs and dependable results.

Benefits

• Improved performance: Restoring the drive assembly helps bring back smoother running and better torque delivery.
• Reduced wear elsewhere: Correct engagement reduces stress on bearings, housings and mating gears.

Extra Information

• Compatibility: For the Tork Craft TCMD0035 Mag Base Drill motor assembly (motor service kit components).
• Common symptoms to replace: Grinding noises, slipping under load, vibration, visible gear tooth wear, or damaged shaft components.
• Service note: Inspect the mating gears and bearings during replacement—worn companion parts can shorten the life of the new drive assembly.

Specifications

Safety

• Disconnect the drill from power before opening the motor housing or servicing internal components.
• Wear eye protection when removing retaining clips or press-fit components.
• Keep hands clear of pinch points and sharp gear edges during assembly and testing.
• After reassembly, run a brief no-load test before drilling to confirm smooth operation.
