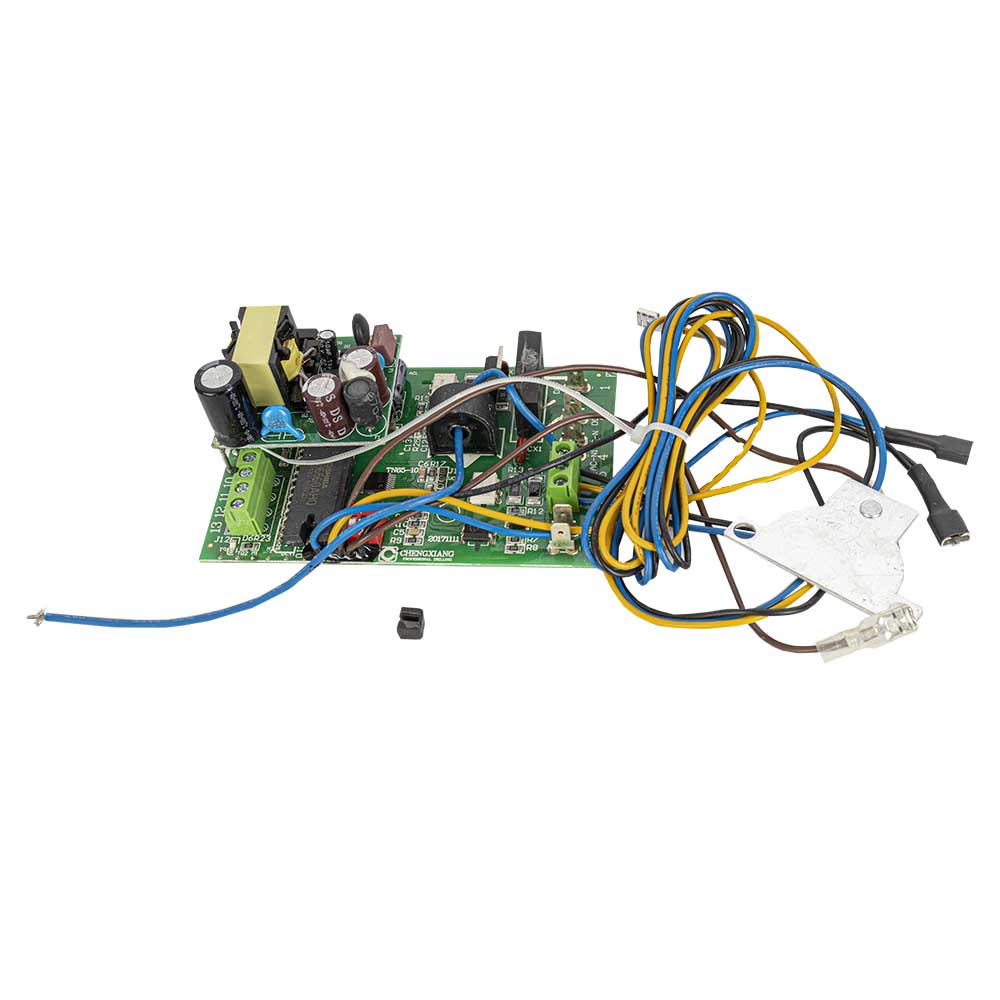

CIRCUIT BOARD WITH CLAMP RING (49/50) STAND SERVICE KIT
Features
- Replacement circuit board (PCB) Restores the tool’s electrical control function when the original board fails.
- Includes clamp ring Secures the electronics assembly in position for safer, more reliable operation.
- Diagram-referenced fitment Matches parts (49/50) in the TCMD0035QE service layout.
- Genuine Tork Craft service kit Proper-fit replacement parts for more straightforward maintenance.
Benefits
- More reliable operation: Helps resolve intermittent power, unexpected cut-outs, and inconsistent running linked to electronics issues.
- Secure component mounting: The clamp ring helps prevent movement and vibration-related problems in the control area.
Extra Information
- Compatibility: For the Tork Craft TCMD0035QE Mag Base Core Drill electrical assembly (service diagram parts 49/50).
- Common symptoms to replace: No power, intermittent operation, inconsistent speed/control, burning smell, or visible damage to the PCB.
- Service note: Electrical repairs should be done by a competent technician. Confirm wiring orientation and insulation before reassembly.
Pro Tip
- Before fitting the new board, inspect the housing for coolant/moisture ingress and clean out dust. Electronics failures often repeat if the original cause (moisture, dirt, loose connections) isn’t fixed.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCMD0035QE-SK023 |
| Product Type | Stand Service Kit |
| Assembly | Circuit Board With Clamp Ring |
| Diagram Reference | (49 / 50) |
| Compatible Model | TCMD0035QE Mag Base Core Drill |
| Application | Electrical Control / Electronics Service & Repair |
Safety
- Disconnect the drill from power before opening any covers or touching electrical components.
- Keep coolant and moisture away from electrical connections and use an RCD/earth leakage protected supply.
- Use only correct replacement parts and ensure all wiring is properly insulated and secured before re-powering.
- If you are unsure about electrical repairs, use a qualified technician to prevent shock or fire risk.
