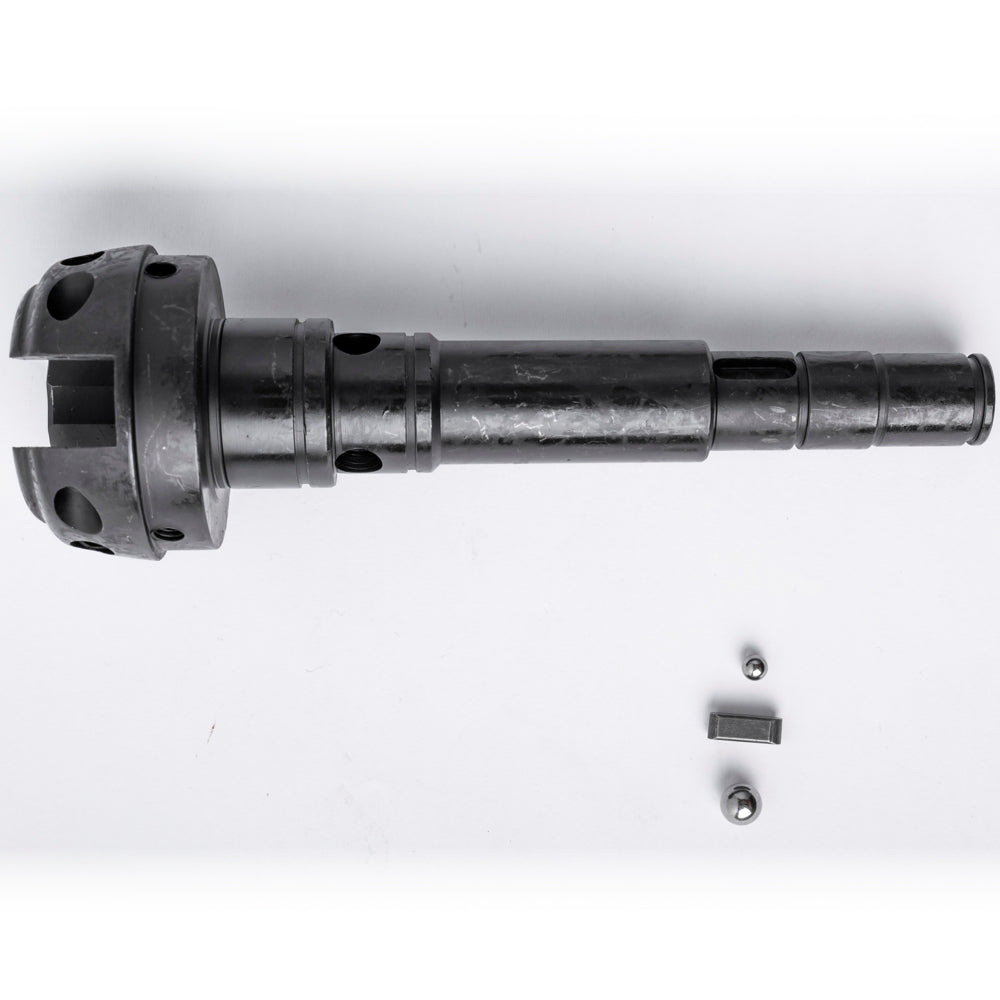

PINION SHAFT & KEY (10-13) STAND SERVICE KIT
Features
- Pinion shaft replacement Restores the shaft that transfers handle input into feed movement.
- Includes key components Supports correct drive transfer and helps prevent slippage at the keyed connection.
- Diagram-referenced fitment Matches parts (10–13) in the TCMD0035QE stand service layout.
- Genuine Tork Craft spare kit Proper-fit service parts for dependable maintenance.
Benefits
- More reliable feed control: Helps eliminate slipping and improves smooth, predictable travel.
- Protects related components: Replacing worn drive parts can reduce stress on gears and bearings in the mechanism.
Extra Information
- Compatibility: For the Tork Craft TCMD0035QE Mag Base Core Drill stand feed mechanism.
- Common symptoms to replace: Slipping feed, excessive play, uneven engagement, clicking under load, or visible wear/damage.
- Service note: Inspect mating gears and bearings during installation—worn companions can shorten the life of a new shaft/key.
Pro Tip
- After fitting, lightly grease the gear contact points and cycle the feed through full travel with no load first—smooth engagement now saves headaches later.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCMD0035QE-SK019 |
| Product Type | Stand Service Kit |
| Assembly | Pinion Shaft & Key |
| Diagram Reference | (10–13) |
| Compatible Model | TCMD0035QE Mag Base Core Drill (Stand Assembly) |
| Application | Stand Feed Mechanism Service & Repair |
Safety
- Disconnect power and remove the cutter before servicing the stand or feed mechanism.
- Wear eye protection and gloves when handling gears and cleaning swarf/grease.
- Support the drill/stand head securely while working—avoid sudden drops or pinch points.
- Before drilling, confirm the magnetic base is firmly seated on a clean, flat surface and all locks are engaged.
