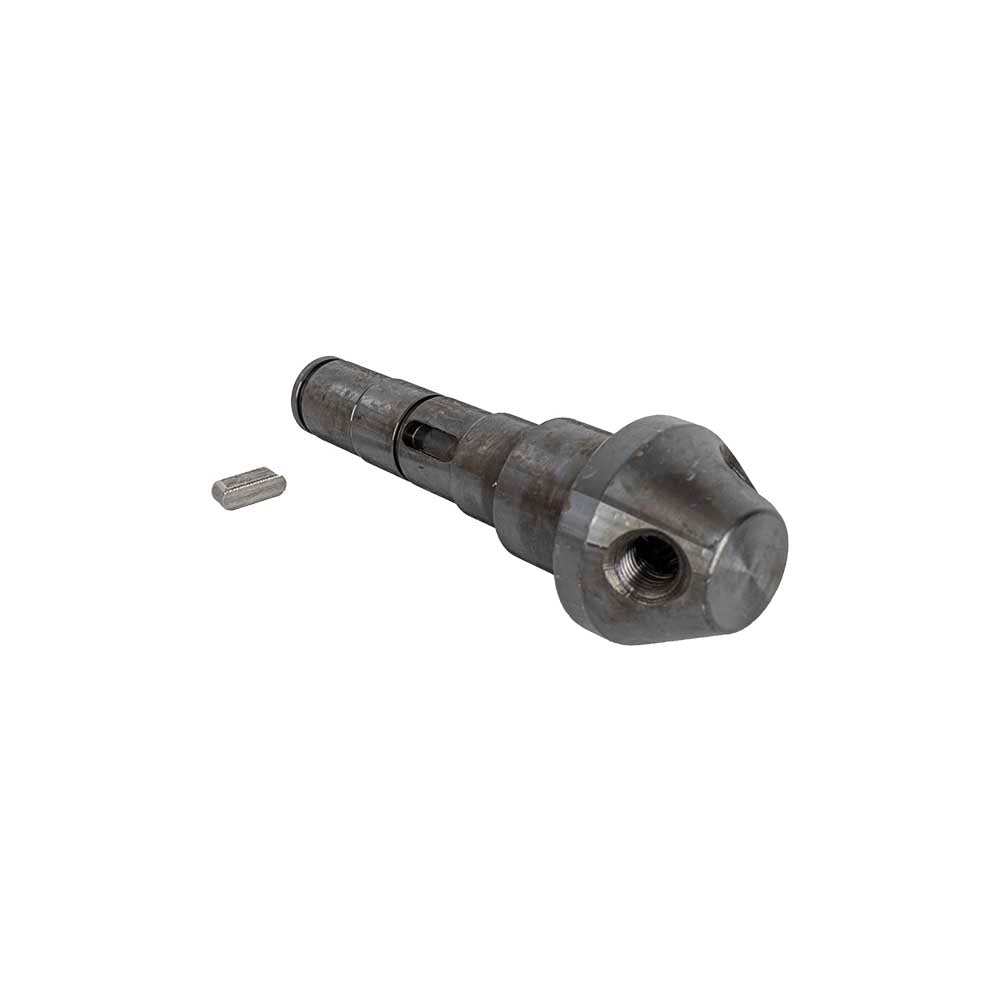

PINION SHAFT & KEY (24/25) STAND SERVICE KIT

Features

• Pinion shaft replacement Restores the shaft that drives feed movement through the gear train.
• Includes key Helps ensure proper drive transfer and prevents slippage at the keyed connection.
• Diagram-referenced fitment Matches parts (24/25) in the TCMD0035HD stand service layout.
• Genuine Tork Craft spare kit Proper-fit service parts for dependable performance and easier maintenance.

Benefits

• More reliable feed control: Helps eliminate slipping and improves smooth, predictable travel.
• Protects related components: Replacing worn drive parts can reduce stress on gears and bearings in the mechanism.

Extra Information

• Compatibility: For the Tork Craft TCMD0035HD Mag Base Core Drill stand feed mechanism.
• Common symptoms to replace: Slipping feed, excessive play, uneven engagement, clicking under load, or visible wear/damage.
• Service note: Inspect mating gears and bearings during installation—worn companions can shorten the life of a new shaft/key.

Specifications

Safety

• Disconnect power and remove the cutter before servicing the stand or feed mechanism.
• Wear eye protection and gloves when handling gears and cleaning swarf/grease.
• Support the drill/stand head securely while working—avoid sudden drops or pinch points.
• Before drilling, confirm the magnetic base is firmly seated on a clean, flat surface and all locks are engaged.
