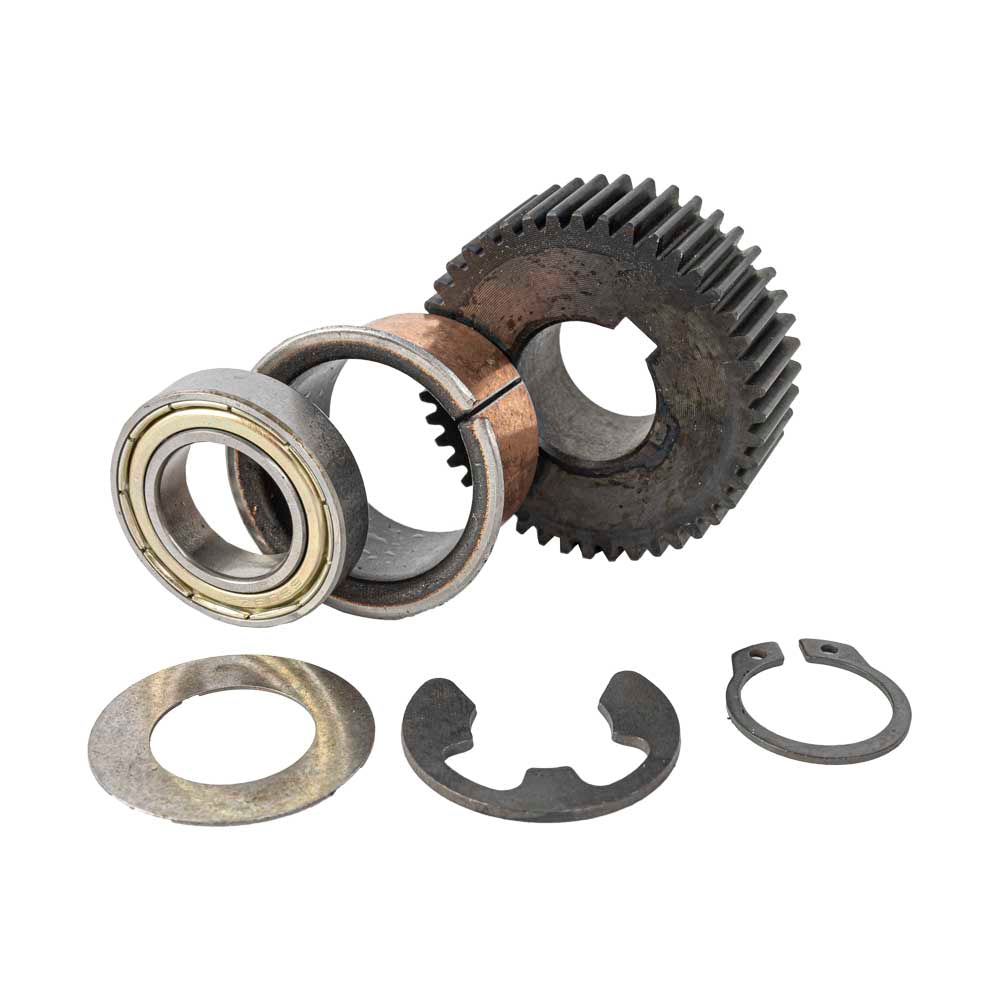

BEARING & GEAR SET (6-11) STAND SERVICE KIT

Features

• Bearing and gear set components Replaces the key stand drive parts specified in the service kit.
• Parts-diagram referenced fitment Covers stand assembly reference parts (6–11) for accurate servicing.
• Service-ready solution Ideal when the feed system is noisy, loose, rough, or skipping during operation.

Benefits

• Improves feed smoothness: Fresh bearings help reduce drag and rough spots through the feed range.
• Restores positive engagement: Replacing worn gears can reduce slipping and skipping under load.
• Supports better drilling accuracy: Reduced play and steadier movement helps keep cuts cleaner and more controlled.

Extra Information

• This stand service kit covers the bearing and gear set referenced as parts (6–11) on the applicable stand parts diagram.
• Recommended when you notice excessive play, uneven travel, grinding noises, or inconsistent engagement when turning the feed handle.
• While servicing, clean old grease and swarf from the stand drive area and inspect the rack/track for wear or damage.

Specifications

Safety

• Disconnect the tool from the power supply before any servicing or adjustment work on the stand.
• Wear eye, ear and dust protection during drilling operations and when servicing mechanical parts.
• Keep fingers clear of pinch points when checking gear engagement—moving gears and racks can trap fingers.
• After servicing, ensure all fasteners are secure and test feed movement with the drill switched off before returning to use.
