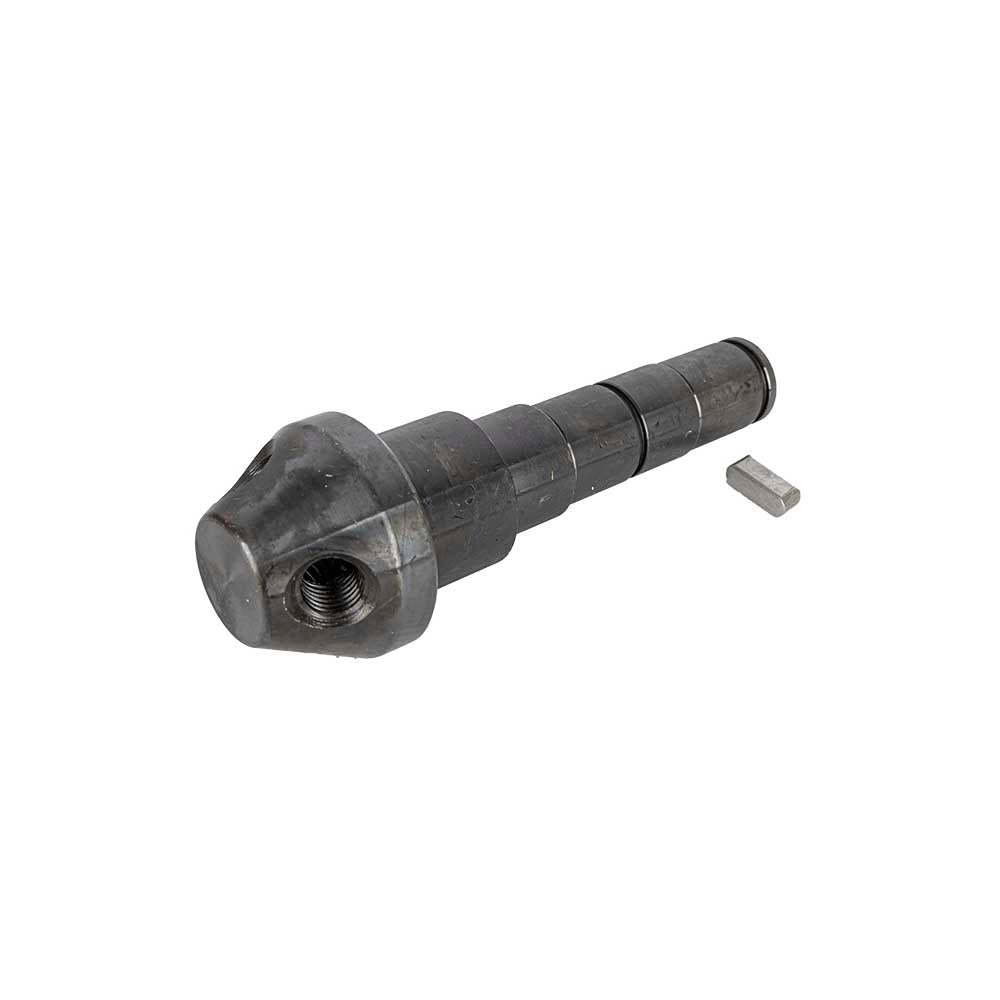

PINION SHAFT & KEY (4/5) STAND SERVICE KIT

Features

• Pinion shaft with key Replaces the core drive components that transmit handle movement to the feed system.
• Parts-diagram referenced fitment Covers stand assembly reference parts (4 and 5) for accurate servicing.
• Service-ready replacement Ideal when the feed action is rough, slipping, or develops play over time.

Benefits

• Restores smoother feed action: Helps bring back consistent, controlled movement during drilling.
• Improves accuracy and feel: Positive engagement reduces skipping and uneven pressure application.
• Reduces wear knock-on effects: Replacing worn drive parts can help protect associated feed components.

Extra Information

• This stand service kit covers the pinion shaft and key referenced as parts (4 and 5) on the applicable stand parts diagram.
• Recommended replacement signs include slipping feed, handle movement without consistent travel, rough engagement, or visible wear on the shaft/key.
• While servicing, inspect the rack/track and bushings for wear and clean out old grease and swarf for best performance.

Specifications

Safety

• Disconnect the tool from the power supply before any servicing or adjustment work on the stand.
• Wear eye, ear and dust protection during drilling operations and when servicing mechanical parts.
• Keep fingers clear of pinch points when checking feed engagement—rack and pinion systems can trap fingers.
• After servicing, test feed movement with the drill switched off and ensure all fasteners are secure before drilling.
