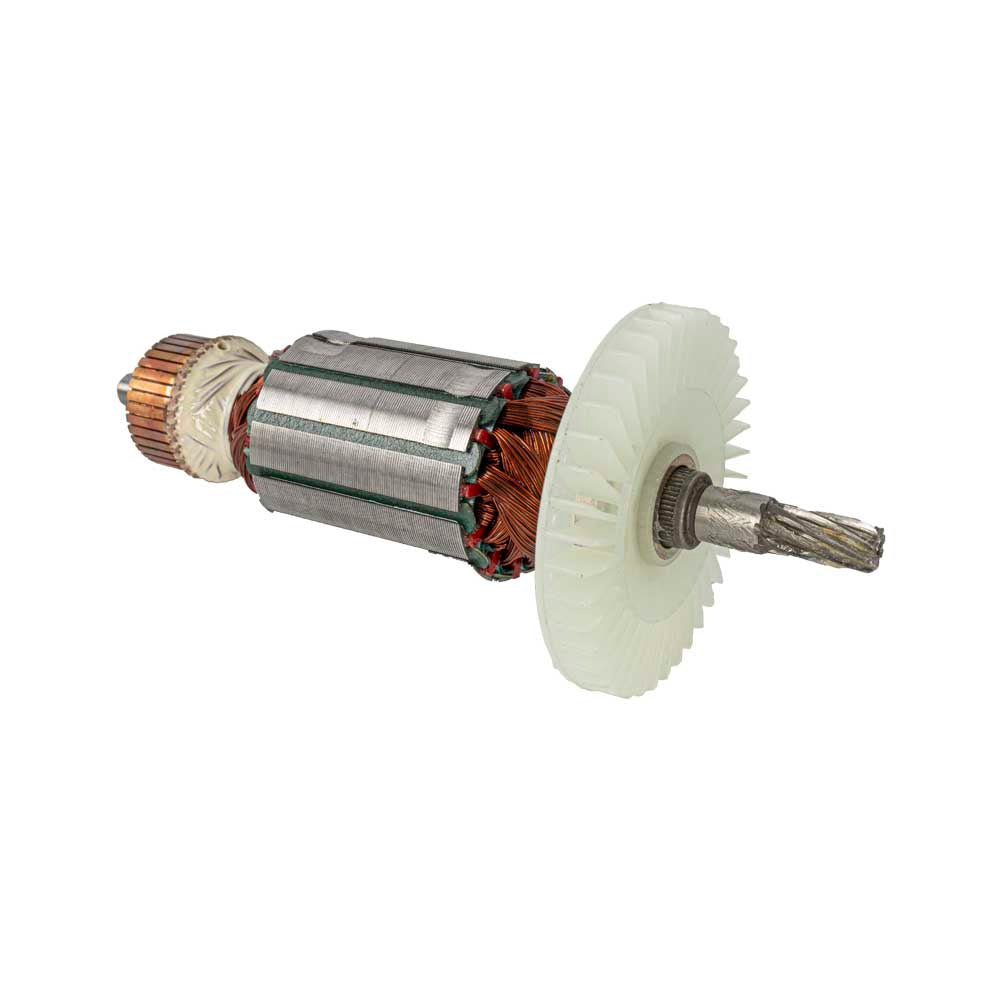

ARMATURE (31) MOTOR SERVICE KIT FOR TCMD0035QE/WO

Features

• Replacement armature component Designed to replace the motor’s rotating core referenced as part (31) on the applicable diagram.
• Service and rebuild ready Suitable for corrective repairs when the motor shows loss of power, rough running, or excessive sparking.
• TCMD0035 series fitment Intended for TCMD0035 mag base drill motor applications where TCMD0035QE/WO fitment is specified.

Benefits

• Restores motor performance: Helps bring back stronger, smoother rotation and more predictable drilling results.
• Reduces rough running symptoms: Replacing a damaged armature can help resolve vibration, noise, and inconsistent drive.
• Supports reliable servicing: A fresh armature is a key step in a proper motor rebuild for long-term uptime.

Extra Information

• This motor service kit covers the armature referenced as part (31) on the applicable parts diagram.
• Common replacement triggers include burnt commutator, visible overheating, heavy sparking at the brushes, or loss of torque under load.
• For best results, inspect/replace related wear items during the same service (bearings, carbon brushes, and seals where applicable).

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or reassembly work.
• Wear eye, ear and dust protection when cleaning components and handling carbon dust or swarf.
• Handle the commutator area carefully—avoid oils/grease on electrical contact surfaces.
• After installation, test the tool safely with no load first, then progress gradually to confirm stable operation.
