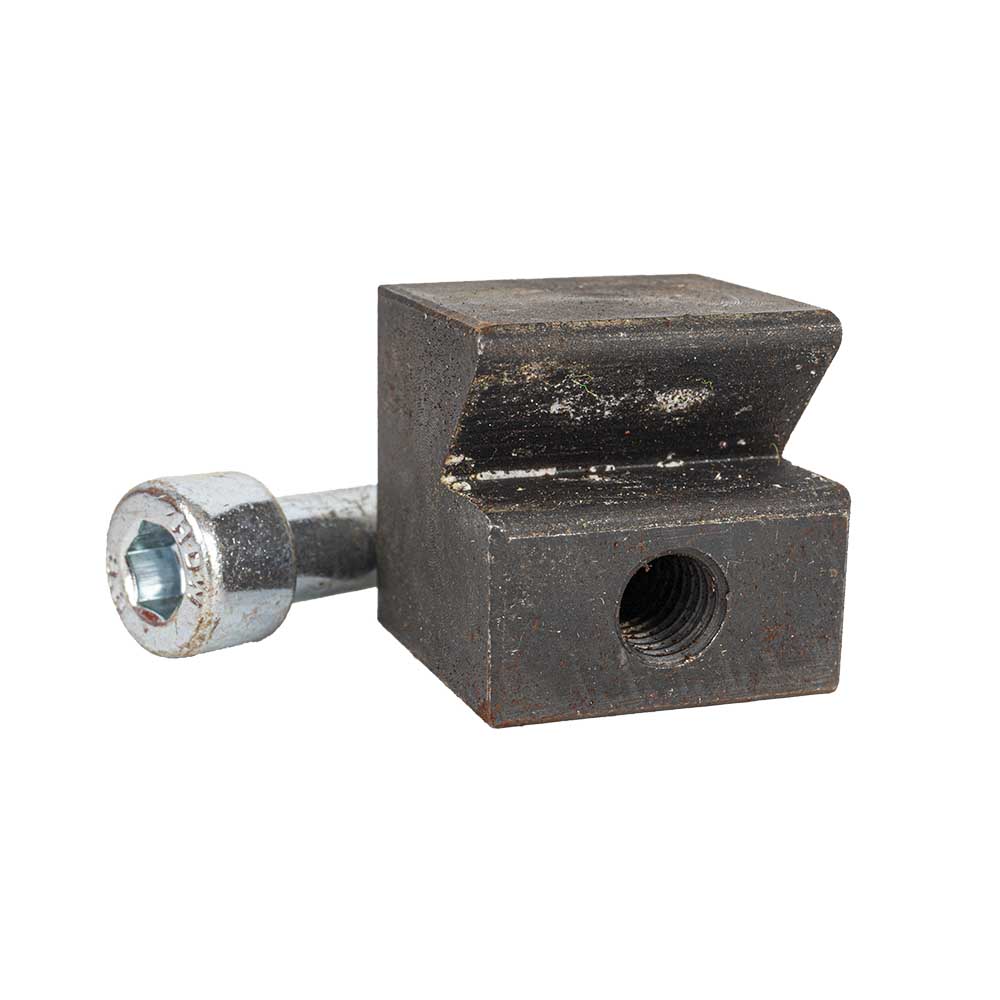

DOVE TAIL BLOCK WITH SCREW (22/23) MOTOR SERVICE KIT

Features

• Dove tail block with screw Replaces the block and fastening hardware used for locating and securing the relevant interface.
• Parts-diagram referenced fitment Covers motor assembly reference parts (22, 23) for accurate servicing.
• Service-ready replacement Ideal when wear causes looseness, poor adjustment holding, or inconsistent alignment.

Benefits

• Helps improve stability: Restores a more secure fit to reduce unwanted movement during drilling.
• Supports better accuracy: A firmer dovetail interface helps keep alignment consistent for cleaner results.
• Smoother adjustment feel: Replacing worn parts can improve the sliding/clamping action and reduce binding or play.

Extra Information

• This motor service kit covers the dove tail block and screw components referenced as parts (22 and 23) on the applicable parts diagram.
• Recommended when adjustment won’t hold, the interface feels loose, the screw threads are damaged, or the block shows visible wear.
• While open, inspect mating dovetail surfaces for scoring or burrs and clean thoroughly before refitting.

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or reassembly work.
• Wear eye, ear and dust protection when cleaning components or removing worn metal parts.
• Keep hands clear of pinch points when checking sliding and clamping action—dovetail interfaces can trap fingers.
• After installation, confirm all fasteners are secure before returning the tool to operation.
