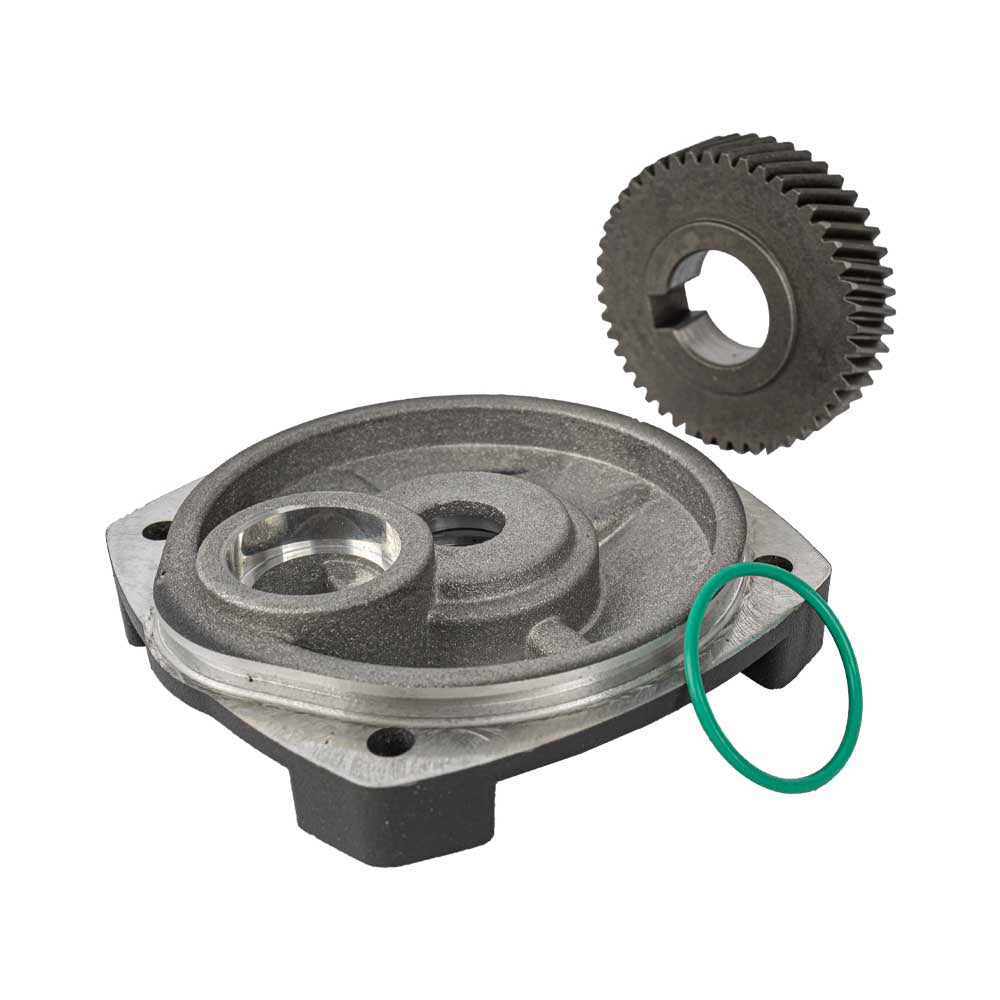

GEAR & GEAR COVER (15/19/20) MOTOR SERVICE KIT

Features

• Gearbox supplied with screws Includes the fasteners needed to secure the gearbox assembly during replacement.
• Parts-diagram referenced fitment Covers motor assembly reference parts (12, 24) for accurate servicing.
• Repair-ready solution Ideal for corrective repairs and overhauls on TCMD0035 series mag base drills.

Benefits

• Restores positive power transfer: Helps bring back consistent torque delivery and drive engagement.
• Reduces unwanted noise and play: A renewed gearbox can minimise knocking, vibration and rough running.
• Gets the tool back to work faster: Replacing the gearbox as a complete kit simplifies the repair process.

Extra Information

• This motor service kit covers the gearbox and screw set referenced as parts (12 and 24) on the applicable parts diagram.
• Recommended when the gearbox shows wear, cracked housings, stripped threads, abnormal noise, slipping drive, or damage from contamination.
• While the assembly is open, inspect bearings, seals and mating faces to prevent repeat failures.

Specifications

Safety

• Disconnect the tool from the power supply before any servicing, stripping, or reassembly work.
• Wear eye, ear and dust protection when cleaning components and handling metal parts.
• Use the correct tools to avoid stripping fasteners and to prevent hand injuries when loosening tight screws.
• After reassembly, test the drill safely with no load first, then progress to light-duty drilling to confirm correct operation.
