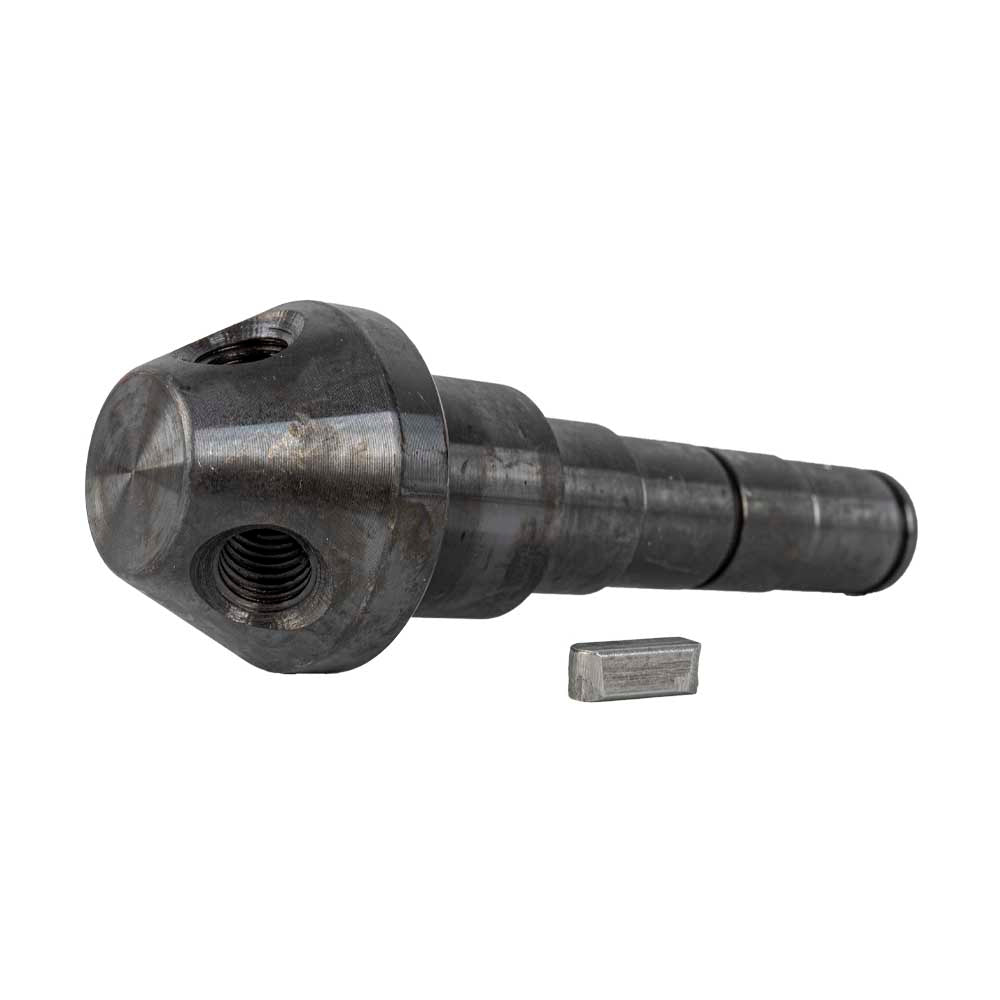

PINION SHAFT & KEY (24/25) STAND SERVICE KIT

Features

• Replacement pinion shaft Restores proper drive transfer through the stand’s feed mechanism.
• Includes matching key Helps ensure secure engagement without slipping or backlash.
• Diagram-referenced fitment Matches parts (24/25) in the TCMD0035-50HD stand service layout.
• Genuine Tork Craft stand service kit Proper-fit replacement parts for dependable maintenance and repairs.

Benefits

• More accurate feed control: Restoring solid engagement helps improve drilling control and consistency.
• Reduced wear and play: A fresh shaft and key helps minimise backlash that accelerates wear on mating gears.

Extra Information

• Compatibility: For the Tork Craft TCMD0035-50HD Mag Base Drill stand drive/feed assembly.
• Common symptoms to replace: Slipping feed, excessive play, notchy movement, uneven engagement, or visible wear/damage to the shaft/key.
• Service note: Inspect mating gears and bearings at the same time—worn companion parts can cause repeat issues.

Specifications

Safety

• Disconnect the drill from power before servicing the stand mechanism.
• Keep hands clear of pinch points when testing feed movement.
• Ensure all fasteners are secure and the stand moves smoothly before drilling.
• Always confirm the magnetic base is firmly seated on a clean, flat surface before operation.
