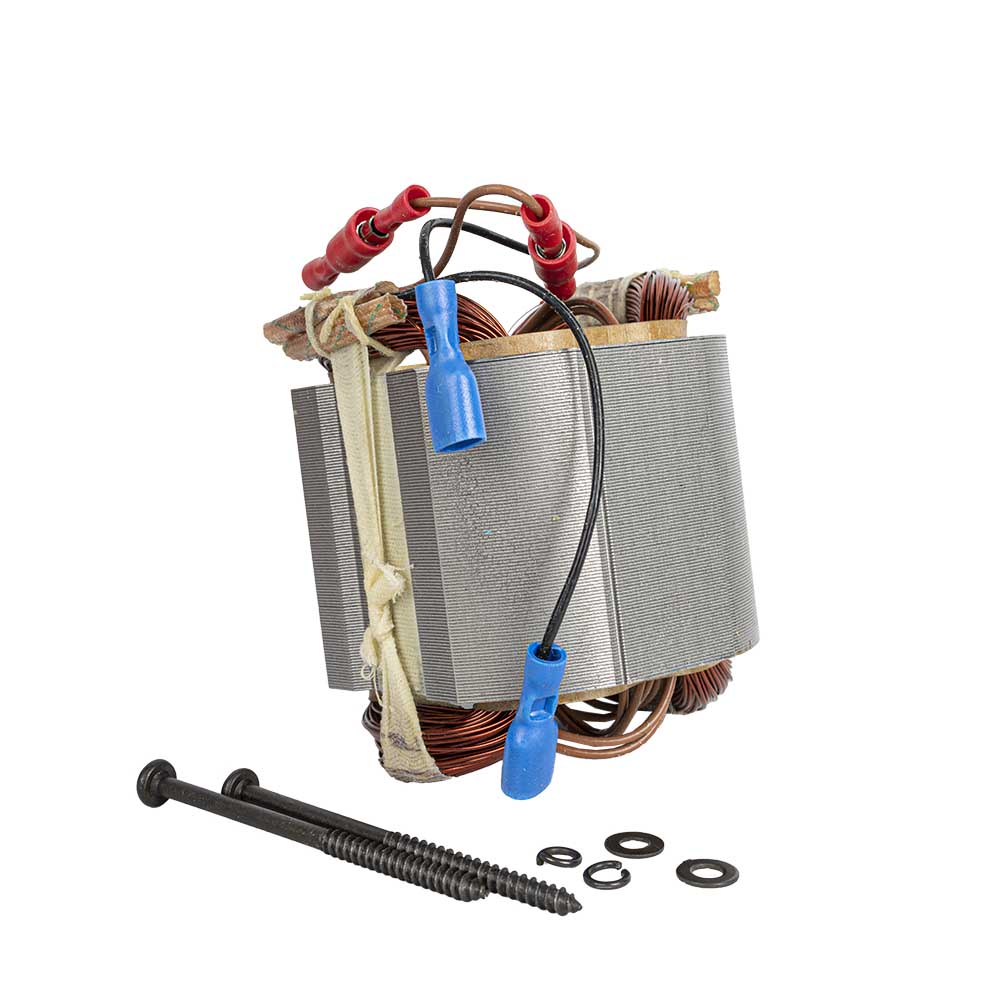

STATOR WITH SCREWS (29-32) MOTOR SERVICE KIT

Features

• Replacement stator (field coil) Restores the fixed magnetic field required for proper motor operation.
• Includes mounting screws Supplied with fastening hardware for secure, correct fitment.
• Diagram-referenced fitment Matches parts (29–32) in the TCMD0035-50HD motor service layout.
• Genuine Tork Craft motor service kit Proper-fit replacement parts for dependable rebuilds and repairs.

Benefits

• Restored power and stability: A healthy stator supports correct torque delivery and smoother motor behaviour.
• Reduced electrical issues: Replacing a damaged stator can help resolve tripping, overheating and erratic running linked to faulty windings.

Extra Information

• Compatibility: For the Tork Craft TCMD0035-50HD motor assembly (service diagram parts 29–32).
• Common symptoms to replace: Burning smell, loss of power, tripping/fuse blowing, overheating, or visible damage to windings/insulation.
• Service note: When replacing a stator, inspect the armature and carbon brushes as well—electrical failures often damage companion parts.

Specifications

Safety

• Disconnect the tool from power before opening the motor housing or servicing internal electrical components.
• Electrical motor repairs should be done by a competent technician to prevent shock or further damage.
• Ensure all wiring is correctly insulated and secured before reassembly and testing.
• After reassembly, perform a brief no-load test before drilling to confirm smooth, stable operation.
