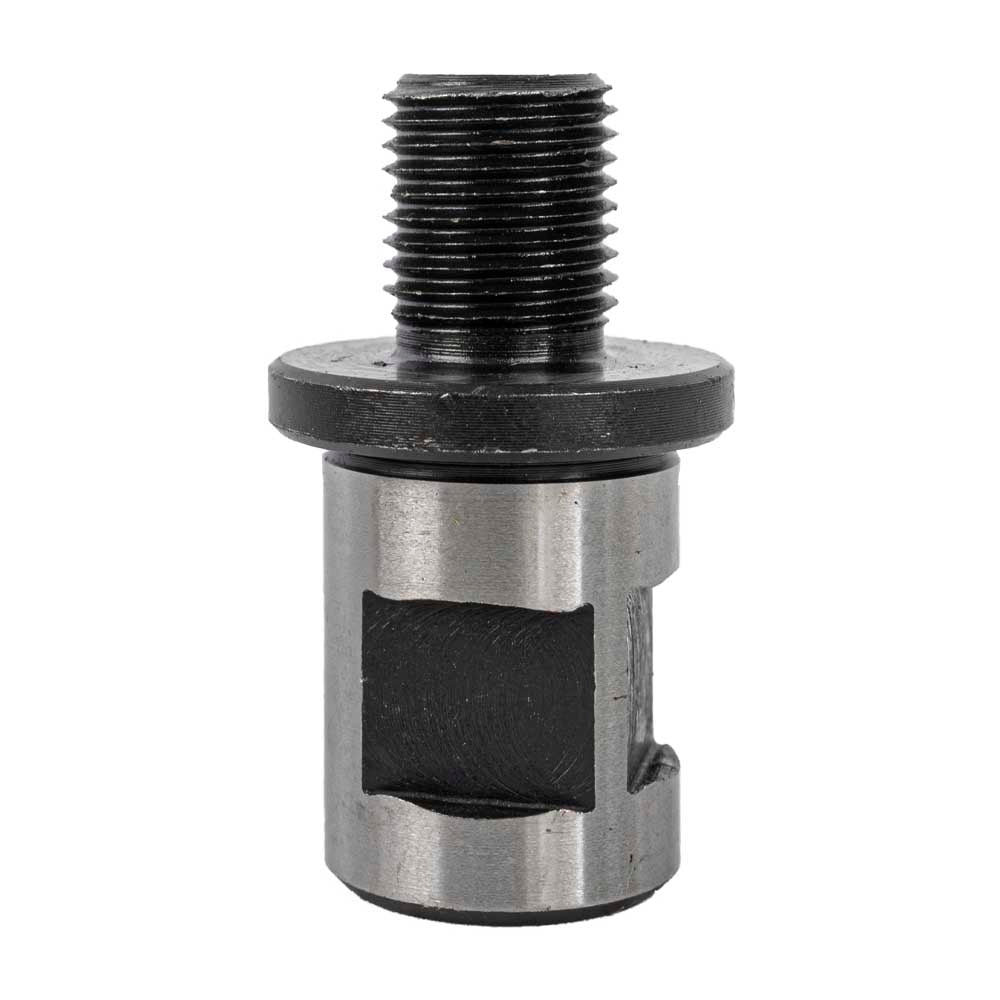

CHUCK ADAPTOR 19.05MM X 1/2' X 20UNF WELDON SHANK TCAC
CHUCK ADAPTOR 19.05MM X 1/2' X 20UNF WELDON SHANK TCAC
Available in Store
Available from Supplier
Sold Out
Regular price
R 266.00 ZAR
Regular price
Sale price
R 266.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share
CHUCK ADAPTOR 19.05MM X 1/2' X 20UNF WELDON SHANK TCAC
Features
- 19.05 mm (¾″) inner bore compatible with Weldon shank tooling and standard ½″ x 20 UNF thread chucks.
- ½″-20 UNF female thread allows the direct mounting of chucks with this common thread size.
- Weldon-style shank outer mount ensures a secure, rigid fit in machines designed for Weldon shank tooling.
- Precision-ground surfaces provide accurate alignment and repeatability when mounting chucks or tooling.
- Hardened alloy steel construction provides durability and maintains performance under heavy machining loads.
Benefits
- Tooling flexibility: Use your existing ½″-20 UNF chucks on machines or holders with Weldon shank mounts — no need to change all tooling.
- Improved clamping reliability: Weldon shank engagement ensures a rigid mount that supports accurate machining.
- Cost-effective upgrade: Rather than investing in entirely new chucks, this adaptor lets you reuse existing thread interface with ease.
- Reduced downtime: Quick changeover between tools and adaptation of standard chucks means less setup time on the shop floor.
Extra Information
- Ensure your chuck thread is clean and undamaged before mounting to avoid interference with the adaptor interface.
- Check that the Weldon shank mount in your machine is clean, free of debris, and properly locked to avoid vibration during use.
- Use appropriate draw-bar or locking mechanism recommended by your machine when mounting the adaptor and chuck combo.
- This adaptor is for machine tool applications; avoid high-temperature environments that may alter tempering or rigidity.
Pro Tip
- Label the adaptor with the thread size and compatible chuck series to assist operators with quick verification and prevent mismatches in busy production setups.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCMD002 |
| Product Type | Chuck Adaptor – 19.05 mm × ½″ x 20 UNF Weldon Shank |
| Inner Bore | 19.05 mm (¾″) |
| Thread Size | ½″-20 UNF |
| Shank Type | Weldon Shank |
| Material | Hardened alloy steel |
| Application | Machine tool adaptor for mounting ½″-20 UNF chucks on Weldon shank holder systems |
Safety
- Wear appropriate eye, ear and dust protection when setting up or using machine tools.
- Ensure the machine is switched off and isolated before mounting or removing the adaptor and chuck.
- Check that the adaptor is properly seated, clamped and secured before starting machining operations.
- Do not use the adaptor if it shows signs of cracking, scoring, or wear — replace immediately to maintain accuracy and safety.
