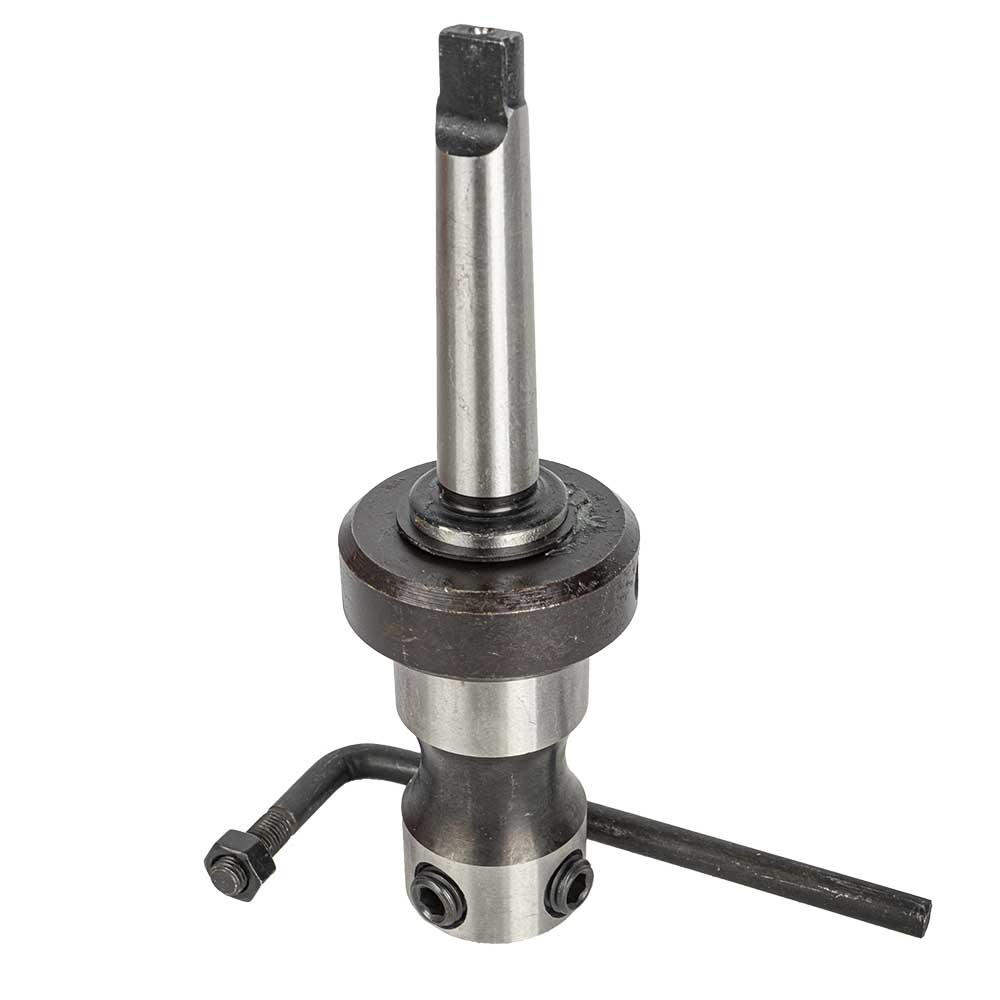

TOOL HOLDER MT2 X 19.05 (INNER) FOR WELDON SHANK MORSE TAPER
TOOL HOLDER MT2 X 19.05 (INNER) FOR WELDON SHANK MORSE TAPER
Available in Store
Available from Supplier
Sold Out
Regular price
R 1,102.00 ZAR
Regular price
Sale price
R 1,102.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share
TOOL HOLDER MT2 X 19.05 (INNER) FOR WELDON SHANK MORSE TAPER
Features
- MT2 taper outer shank standard Morse Taper 2 for broad machine compatibility.
- 19.05 mm (¾″) inner bore accepts Weldon shank tooling for secure clamping.
- Precision-ground surfaces for accurate alignment and repeatability in fitting and cutting.
- Hardened alloy steel construction for durability and resistance to wear and deformation under load.
- Black oxide finish provides corrosion protection and minimises glare in the workshop.
Benefits
- Improved tool stability: Secure clamping reduces vibration, improves surface finish and extends tool life.
- Faster tool changes: Compatible with standard Weldon shank tooling for quicker set-up and change-out cycles.
- Versatile usage: Suitable for lathes, milling machines and other workshop equipment needing MT2 tooling holders.
- Cost effective: High-precision tool holder helps maximise the value of your cutting tools by reducing downtime and refits.
Extra Information
- Ensure the spindle taper and holder taper are clean, dry and free from burrs before mounting for best accuracy.
- Always use the correct draw-bar or locking mechanism as recommended by your machine manufacturer when installing the holder.
- This holder is designed for use with Weldon shank tooling; ensure your tooling matches the 19.05 mm bore for secure clamping.
- Not designed for use in heat-treating ovens or quench tanks. Keep away from extreme high-temperature environments which may affect tempering.
Pro Tip
- Mark your tool holder and tool combinations using a colour-coded ring or label to speed up tool changes and prevent mismatches during production runs.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCMD001 |
| Product Type | Tool holder – MT2 × 19.05 mm inner for Weldon shank |
| Outer Taper | Morse Taper No. 2 (MT2) |
| Inner Bore | 19.05 mm (¾″) Weldon shank |
| Material | Hardened alloy steel |
| Finish | Black oxide |
| Application | Lathe and milling tool holding, Weldon shank tooling |
Safety
- Wear appropriate eye, ear and dust protection when installing or changing tooling in machine spindles.
- Ensure the machine is switched off and isolated from power before mounting or removing the tool holder.
- Check that the holder is properly seated in the spindle taper and fully secured before using the machine.
- Do not use holders that are damaged, cracked or show signs of excessive wear — replace immediately.
- Maintain and clean the taper surfaces regularly to ensure safe and accurate mounting.
