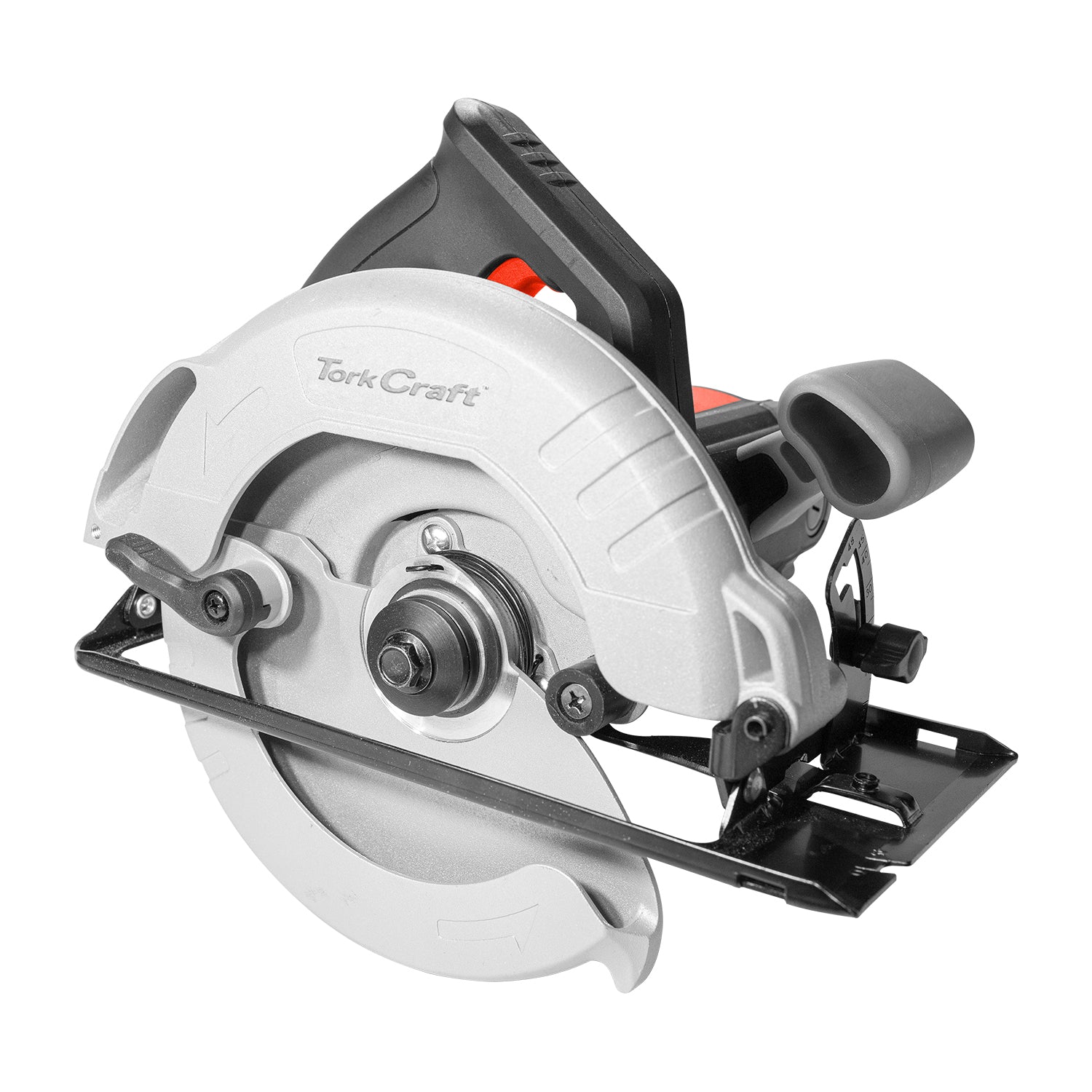

Portable pendulum cover 1500W circular saw
The 1500W motor provides ample power for efficient cutting for a variety of applications, including woodworking and other DIY projects. Designed to fit a Ø 185mm blade for a decent cutting depth of 60mm at 90°.
Precision and control The circular saw is supplied with quick adjustment levers for depth and angle adjustments. The pendulum cover protects you from the spinning blade and the safety trigger prevents accidental starting.
- Safety trigger
- Retractable pendulum cover protection guard
- Spindle lock button - To lock the spindle when replacing the saw blade
- Easy accessible carbon brush ports
- Cut-line guide marks for 0° and 45°.
- Comfortable grip and handle for added control
- Quick adjust levers for depth and angle adjustments
| Description | Specification |
| Max RPM | 5500 |
| Max blade Ø | 185mm |
| Max cutting depth at 90° | 60mm |
| Max cutting depth at 45° | 45mm |
| Power output | 1500W |
| Voltage | 220-240V (50Hz) |
| Miter cut adjustment | 0 - 48° |
| Depth of cut adjustment lever | 0 - 60mm |
| Arbor Ø | 20mm |
