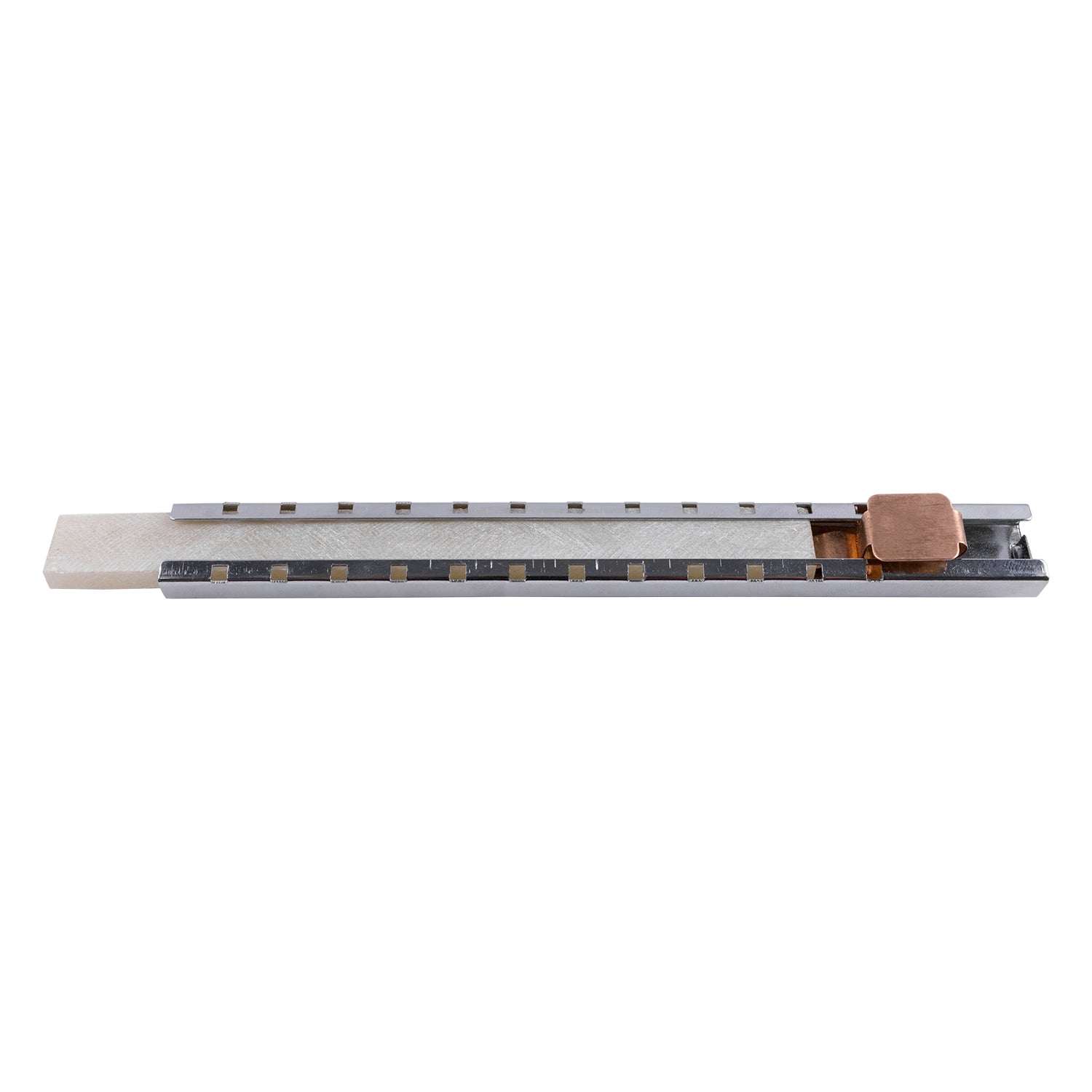

Boilermaker's Chalk & Holder
Boilermaker's chalk, also known as soapstone, is a soft, natural mineral that is primarily used for marking metal surfaces. It's a popular tool in industries like welding, fabrication, and construction due to its ability to create clear, temporary marks on various metals.
Application:
- Steel, iron and metal markings.
- Metal and steel fabrication
- Welding and construction
Features
- Compact design.
- Easy to replace.
- Prevents breakages when used with holder.
- Increments allows for chalk positioning.
- Push brass thumb slider for easy adjustments.
- Pocket clip for easy storage.
Installing the chalk in holder
- Hold the chalk in one hand and the chalk in another.
- Push the slider to the edge of the holder.
- Gently press the slider whilst inserting the chalk in the spring retention clip with another hand.
- Retract the slider holder whilst ensuring the chalk is moving in the grooves of the holder.
| Description | Specification |
| Packaging Type | Blister Card |
| Package Dimensions | 206(L) x 57(W) x 14(H)mm |
| Package Weight | 55g |
| Holder Dimensions | 142(L) x 15(W) x 11(H)mm |
| Holder Weight | 22g |
| Pocket clip dimensions | 56mm (L) x 6mm(W) |
| Number of increments | 12 |
| Chalk Dimensions | 125(L) x 12(W) x 5(H)mm |
| Chalk Weight | 19g |
| Material | Holder: Nickel Plated Steel Chalk: Soapstone Slider: Brass Pocket clip: Nickel Plated Steel and Brass rivet |
| Content | 1 x Chalk Holder 1 x Chalk |
