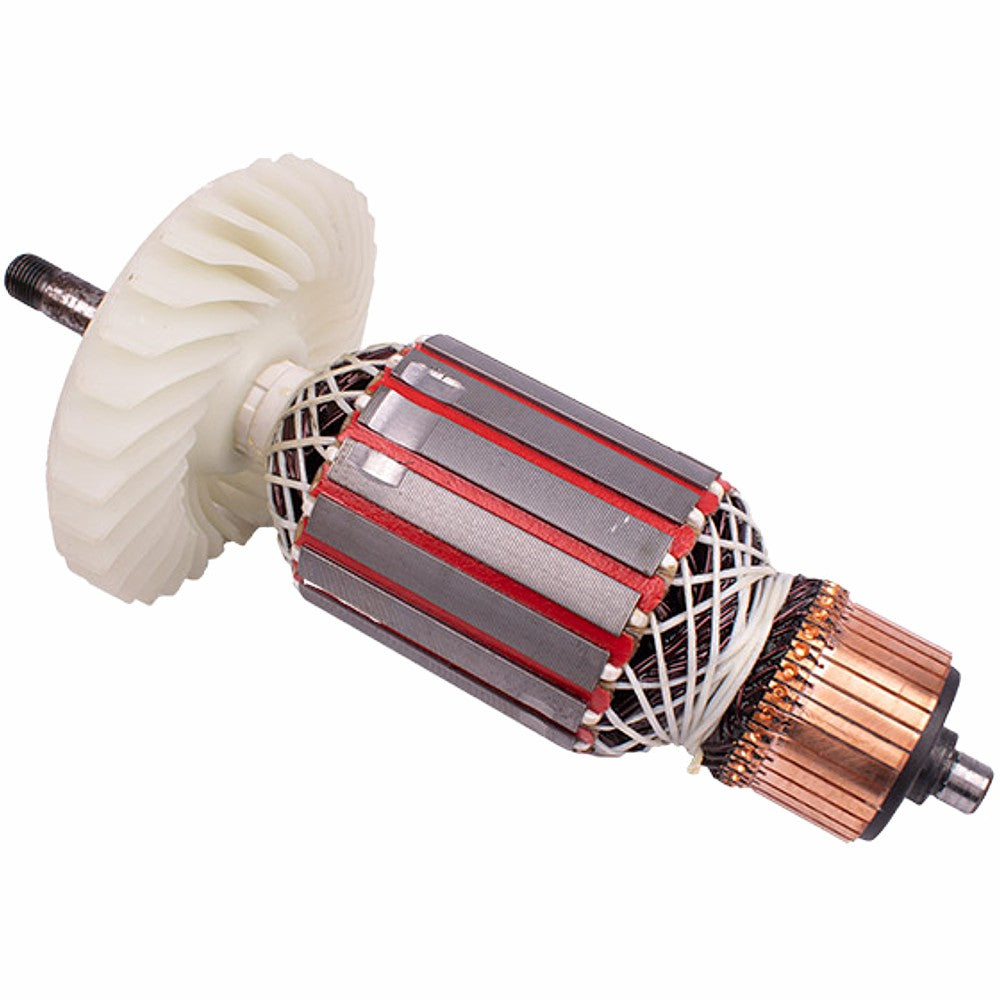

REPL. ARMATURE & MAGNETIC RING (27/33/34) SERVICE KIT

Features

• Motor repair service kit: Replaces the armature and magnetic ring component group used in the TCAG0230 motor assembly.
• Parts reference match: Covers parts 27, 33 and 34 as per the service diagram reference.
• Improves running smoothness: Helps correct roughness caused by worn or damaged rotating motor components.
• Model-specific compatibility: Intended for use with the Tork Craft TCAG0230 angle grinder.

Benefits

• Restore consistent performance: Helps bring back stable power under load for grinding and cutting.
• Reduce harshness and sparking: Fresh motor components can improve commutation and overall motor behaviour.
• Extend tool life: A proper motor rebuild helps protect brushes, bearings and electrical components from knock-on damage.

Extra Information

• Compatibility: Intended for the Tork Craft TCAG0230 angle grinder series.
• Recommended: When replacing an armature, inspect/replace carbon brushes and check bearings for play or noise.
• Clean out carbon dust during servicing — build-up can cause tracking, heat and premature wear.
• Ensure wiring is routed and secured exactly as original to prevent chafing against moving parts.

Specifications

Safety

• Wear eye protection and a dust mask when working with carbon dust and internal debris.
• Disconnect power before opening the tool or fitting any spare parts.
• Motor repairs should be done by a competent technician — incorrect assembly can cause electric shock or mechanical failure.
• After reassembly, confirm the guard is correctly fitted and the spindle rotates freely before use.
• Perform a no-load test run in a safe area and stop immediately if you hear rubbing, smell burning, or see excessive sparking.
