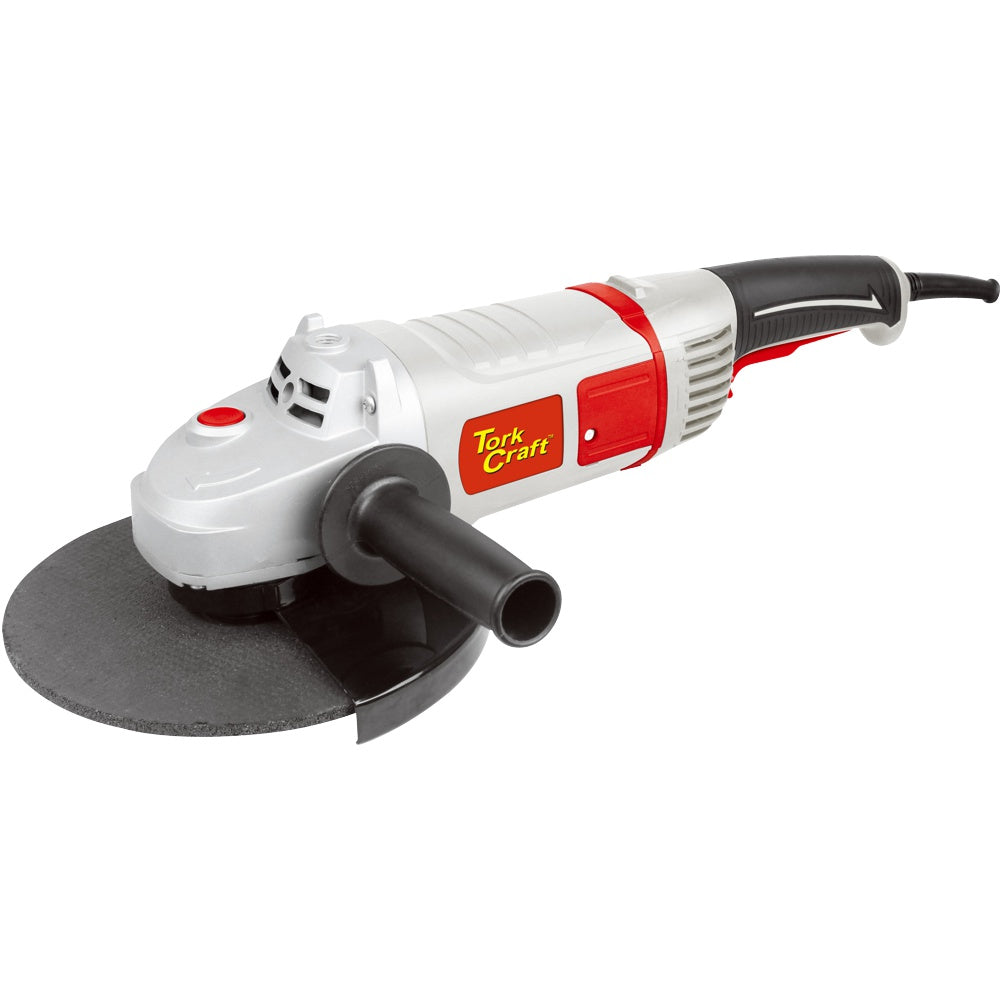

230mm ANGLE GRINDER 2400W
The 230mm angle grinder has a powerful 2400W motor and the handle can be rotated 90° for added ergonomics. Easily change accessories with the supplied wrench.
We have a multitude of different accessories that can be used with the angle grinder! From cutting/grinding steel to masonry.
FREE carbon brush set inside of the box.
Features:
- Supplied with pin wrench for quick and easy blade change by pressing the spindle lock button on top of the gearbox.
- The blade guard can be positioned for maximized protection when grinding or cutting. Always consider the disc rotation arrow on the gearbox.
- The auxiliary handle can be fitted on the left side,right side or on the top for great control.
- Standard M14 thread spindle
- Powerful 2400W motor
- 90° rotatable handle for added ergonomics
Angle grinder safety:
- Always wear proper safety PPE (Personal Protective Equipment).
- Use the proper wheel size. For a 115mm angle grinder, use 115mm accessories.
- Match the RPMs with your angle grinder and the accessory. For example, if the wire brush is rated for Max 6600 rpm, don't fit it on a 11000 rpm angle grinder
- Use the safety guard as designed. Consider the rotation direction on the angle grinder's gearbox. The guard is a barrier between your hands and the fitted accessory.
- Don't try to alter or modify the angle grinder in any way and only fit accessories that are designed to be used with an angle grinder.
- Always inspect the condition of the fitted accessory. If the disc is damaged, it is no longer safe to use it.
- The angle grinder relies on the fan fitted to the motor to cool it down during use. It is always recommended to have it run for at least a minute before using it
- Consider the work area where the angle grinder is used in. When cutting/grinding steel, sparks will fly and cause a fire if close to flammable materials and liquids.
- It is important to always have two hands on the angle grinder in the correct positions to have control of the machine. Try not to cover the vents.
| Description | Specification |
| Packaging Type | Cardboard Box |
| Material | Body and Auxiliary Handle: Plastic Gearbox: Aluminium Wheel Guard: Mild Steel |
| Package Dimensions | 570(L) x 120(T) x 120mm(W) |
| Package Weight | 6kg |
| Finish | Grey Plastic with red and black accents |
| Max RPM | 6600 |
| Wattage | 2400W |
| Voltage | 220~240V (50Hz) |
| Spindle Thread | M14 |
| Arbor size | 22.11mm |
| Safety Class | Class II |
| Disc Diameter | Max 230mm |
| Plug Type | Euro - VDE2 pin round |
| Cable Length | 2m |
| Trigger handle rotatable (Clockwise and Anticlockwise) | |
| Contents | 1 x Auxiliary handle 1 x Spare set of carbon brushes 1 x Pin wrench 1 x Hex wrench 1 x Protective blade guard |
