ANNULAR HOLE CUTTER HSS 65 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 65 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 2,694.00 ZAR
Regular price
Sale price
R 2,694.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

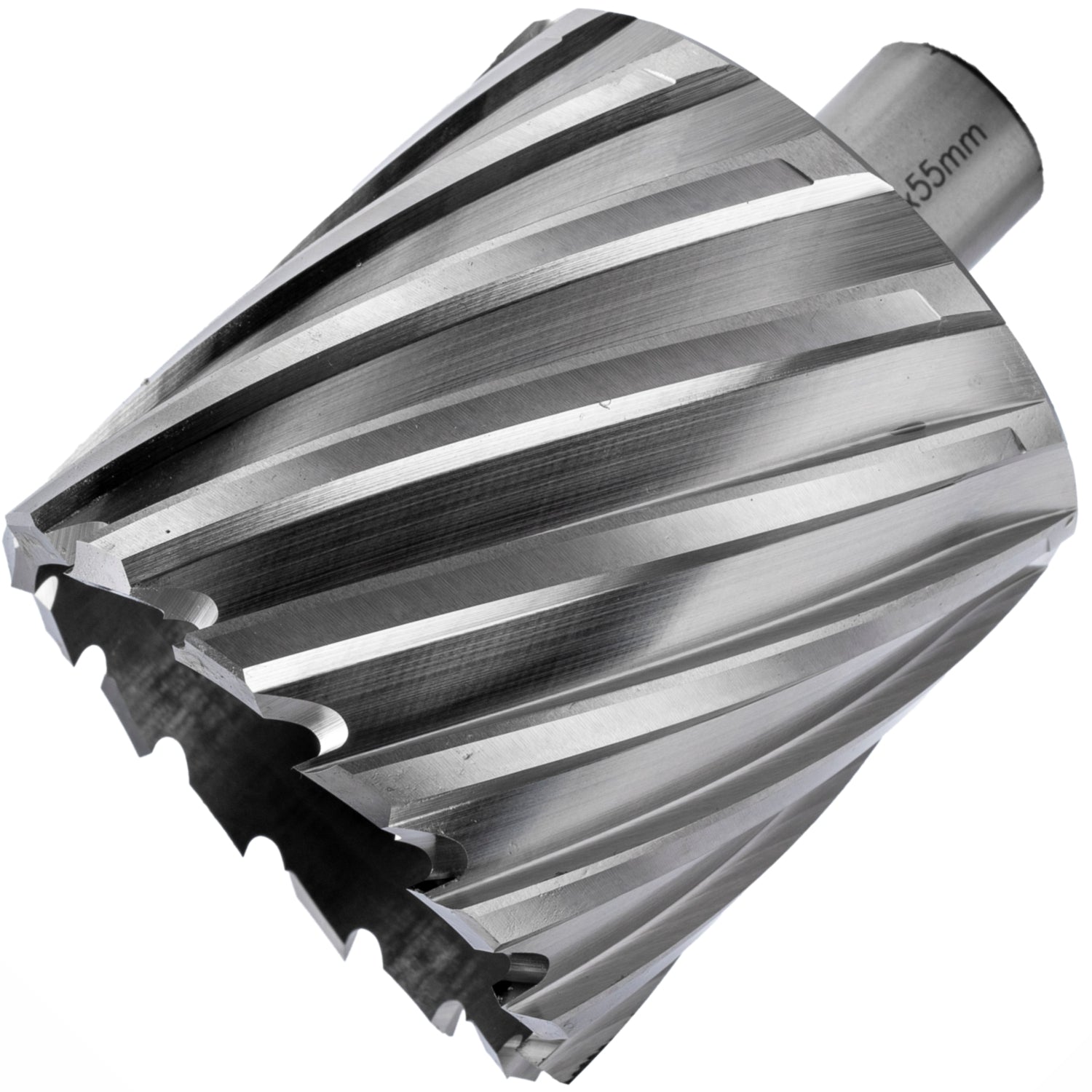

Tork Craft Annular Hole Cutter — HSS 65 × 55 mm, 19.05 mm (3/4') Weldon
Size: 65 mm x 55 mm [3/4' Weldon Shank]
The 65 mm diameter HSS annular cutter from Tork Craft is engineered for significant clearance holes in steel and cast-iron where both diameter and depth matter. With a 55 mm cutting depth and robust 19.05 mm (3/4″) Weldon shank, it delivers fast, clean broaches with minimal burrs, reduced feed force and consistent industrial performance.
Features
- 65 mm diameter — built for large bolt holes, bushings or pipe passages.
- 55 mm cutting depth — handles deeper plate and stacked structural material.
- 19.05 mm (3/4') Weldon shank — two-flat drive ensures secure clamp in magnetic drills.
- HSS (high-speed steel) body — durable for steel, cast-iron and heavy-duty use.
- Thin-wall, multi-flute design — enhanced penetration, efficient chip evacuation and lower machine load.
Benefits
- Large-hole speed: Cuts only a peripheral ring, allowing greater diameter with less material removal vs a twist drill.
- Cleaner result: Reduced burrs, better bore finish and fewer rework steps.
- Improved usability: Lower feed pressure even for large size means better operator comfort, especially in overhead or vertical drilling.
- Robust construction: HSS body + Weldon interface deliver industrial-grade reliability and repeatability.
Extra Information
- Suitable for use with a magnetic-base drill or compatible drill press arbor fitted to a 19.05 mm (3/4″) Weldon shank.
- A pilot pin (sold separately) is required for centring the cutter and slug ejection — ensure correct size for your arbor and material thickness.
- When cutting stainless steel or harder materials, apply suitable cutting fluid and maintain steady feed to protect cutter life and prevent chip clogging.
Pro Tip
- Ensure the magnet base is clean and flat before clamping. Begin at low speed so the cutter locates accurately, then increase feed when consistent curled chips form. For deeper large-diameter cuts, pause periodically to clear chips and re-lubricate to maintain finish and prolong cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC065-2 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 65 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Suitable Materials | Mild & structural steel, cast-iron, large-diameter clearance holes |
| Recommended Machine | Magnetic-base drill / drill press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to control heat and improve chip removal.
- Ensure the magnet base or clamping system is firmly secured and the workpiece stable before drilling; use a tether when working overhead or on angled surfaces.
- Do not use hammer or impact mode; maintain steady feed and allow the slug to eject cleanly — if feed slows, stop and clear chips immediately.
- Disconnect power or disable magnet before changing cutters, shanks or pilot pins.
