ANNULAR HOLE CUTTER HSS 65 X 30MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 65 X 30MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 2,082.00 ZAR
Regular price
Sale price
R 2,082.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

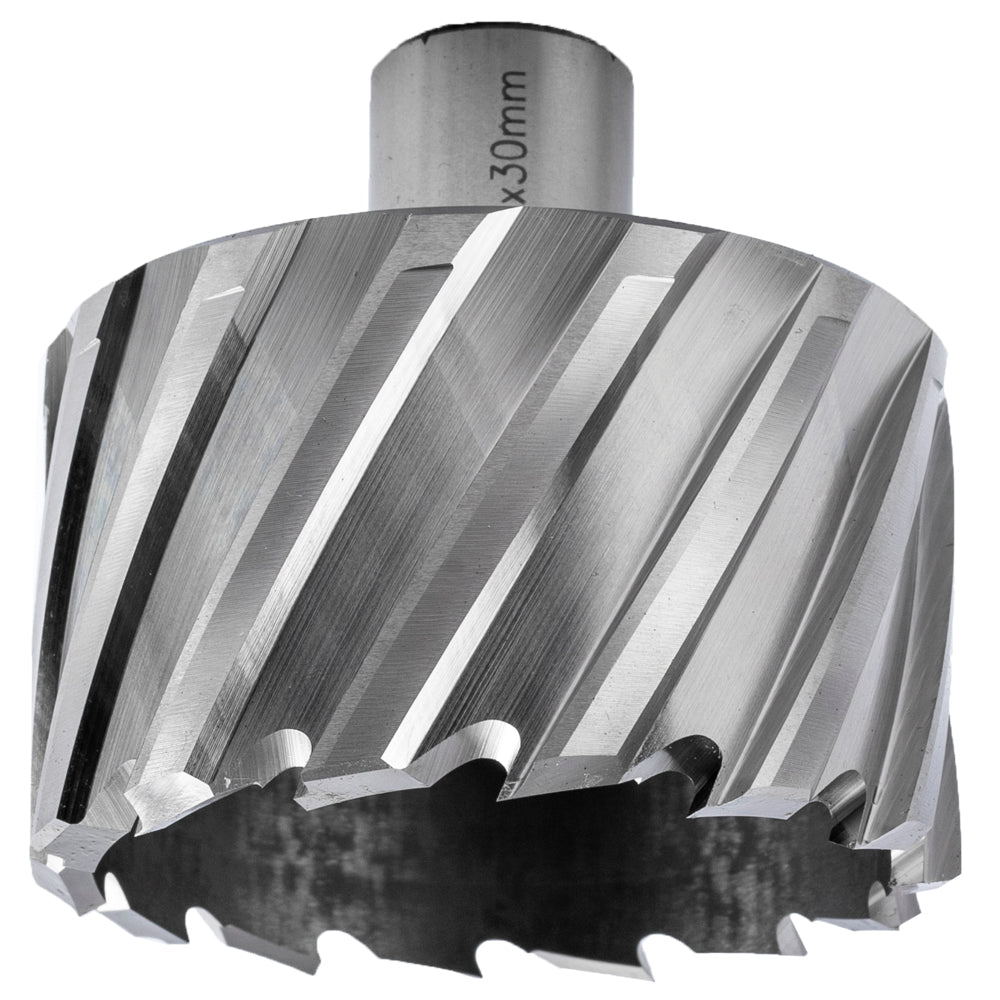

Tork Craft Annular Hole Cutter — HSS 65 × 30 mm, 19.05 mm (3/4') Weldon
Size: 65 mm x 30 mm [3/4' Weldon Shank]
The 65 mm diameter HSS annular cutter from Tork Craft is tailored for large-clearance holes in steel, cast-iron and structural plate when depth is limited. With a 30 mm cutting depth and robust 19.05 mm (3/4″) Weldon shank, it delivers fast, clean broaches with minimal burrs and feed effort — perfect for flange penetrations, pipe clearances or heavy-duty structure work.
Features
- 65 mm diameter — large-clearance holes for bolts, bushings, pipe penetrations.
- 30 mm cutting depth — shallow but large diameter, matches plate or structural section conditions.
- 19.05 mm (3/4') Weldon shank — secure two-flat drive for magnetic drills.
- HSS body — high-speed steel construction suitable for steel and cast-iron penetration.
- Thin-wall, multi-flute design — enables faster penetration and efficient chip ejection even in large size cutters.
Benefits
- Large-hole speed: removes only the material ring, making large holes quicker than conventional twist drilling.
- Cleaner finish: fewer burrs and better fit reduce post-drill work.
- Lower feed effort: even large diameter but shallow depth keeps feed manageable for vertical or overhead work.
- Industrial reliability: HSS body and Weldon shank deliver consistent performance in demanding environments.
Extra Information
- Designed for use in magnetic-base drills or drill presses equipped with a 19.05 mm (3/4″) Weldon shank arbor.
- A pilot pin (sold separately) is required for centring the cutter and ejecting the slug — ensure compatibility with your arbor.
- On stainless steel or harder materials, use suitable cutting fluid and maintain steady feed to protect cutter life and ensure efficient chip removal.
Pro Tip
- Make sure the magnet base is clean and flat before clamping. Begin at low speed until the cutter begins to bite, then increase feed once consistent curled chips appear. For large-diameter shallow holes, often clearing chips and re-lubricating after each hole improves finish and extends cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC065-1 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 65 mm |
| Cutting Depth | 30 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Suitable Materials | Mild & structural steel, cast-iron, shallow-depth large-diameter holes |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; apply cutting fluid to aid heat control and chip removal.
- Ensure the magnet or base clamp is securely fixed and the workpiece stable; use a tether when drilling overhead or on inclined surfaces.
- Do not use hammer or impact drive; maintain smooth feed and allow the slug to eject cleanly — stop immediately if feed lags or chatter begins.
- Disconnect power or disable magnet before changing cutters, pilot pins or shanks.
