ANNULAR HOLE CUTTER HSS 64 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 64 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 2,638.00 ZAR
Regular price
Sale price
R 2,638.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

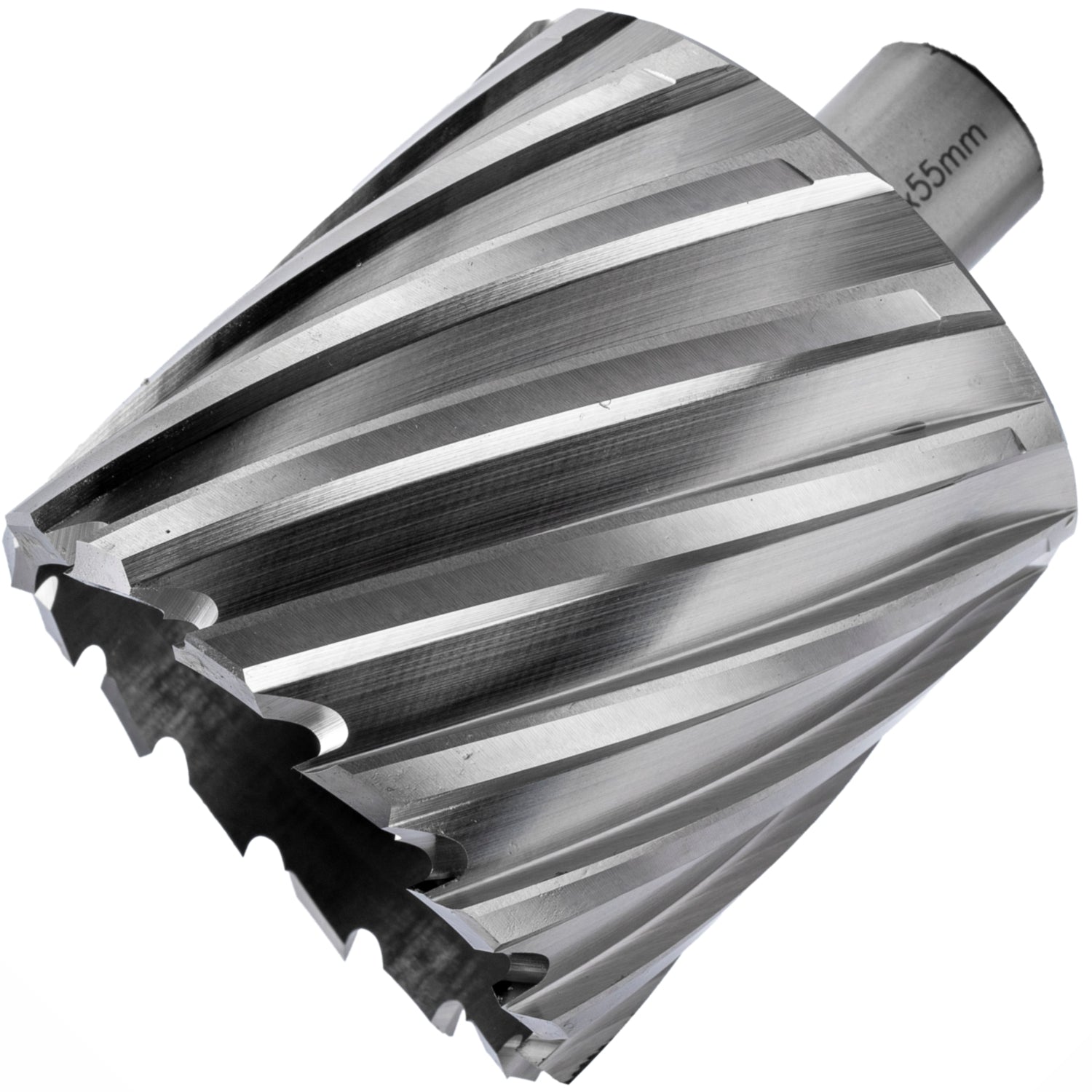

Tork Craft Annular Hole Cutter — HSS 64 × 55 mm, 19.05 mm (3/4') Weldon
Size: 64 mm x 55 mm [3/4' Weldon Shank]
This 64 mm diameter HSS annular cutter from Tork Craft is ideal for large-hole applications in steel and cast-iron where depth is limited. With a 55 mm cutting depth and a secure 19.05 mm (3/4″) Weldon shank, it delivers efficient, clean holes with less feed pressure and minimal burrs — perfect for structural, flange or pipe-clearance work.
Features
- 64 mm diameter — for major clearance holes and structural penetrations.
- 55 mm cutting depth — shallow but large diameter, suitable for plate and structural sections.
- 19.05 mm (3/4') Weldon shank — two-flat drive ensures firm hold in magnetic drills.
- HSS material — high-speed steel construction suitable for heavy-duty metal drilling.
- Thin-wall, multi-flute design — enables faster penetration and efficient chip evacuation even in large sizes.
Benefits
- Large-hole efficiency: removes just the periphery ring, making large diameters faster than conventional twist drills.
- Smoother finish: fewer burrs and cleaner edges mean less finishing work.
- Reduced operator load: even with large size, feed pressure remains manageable, especially with shallow depth.
- Industrial durability: HSS body and Weldon interface deliver reliable performance under tough conditions.
Extra Information
- Use with a magnetic-base drill or drill-press fitted with a 19.05 mm (3/4″) Weldon shank arbor.
- A pilot pin (sold separately) is required for centring and slug ejection — ensure correct size for your arbor.
- When drilling stainless or harder materials, apply cutting fluid and maintain a steady feed to preserve cutter life and chip clearance.
Pro Tip
- Ensure magnet base sits flush on a flat surface; begin at low RPM until nibbing occurs, then increase feed when consistent, curled chips appear. Clear chips often and re-lubricate to reduce heat and maintain finish and tool life even with large diameter cuts.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC064-2 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 64 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Suitable Materials | Mild & structural steel, cast-iron, shallow-depth large-diameter holes |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to manage heat and improve chip removal.
- Ensure the magnet or drill base is firmly secured and the workpiece is stable before drilling; use a tether when working overhead or on angled surfaces.
- Do not use hammer or impact mode; maintain a steady feed and allow the slug to eject cleanly — stop immediately if feed slows or chatter begins.
- Disconnect power or disable magnet before changing cutters, shanks or pilot pins.
