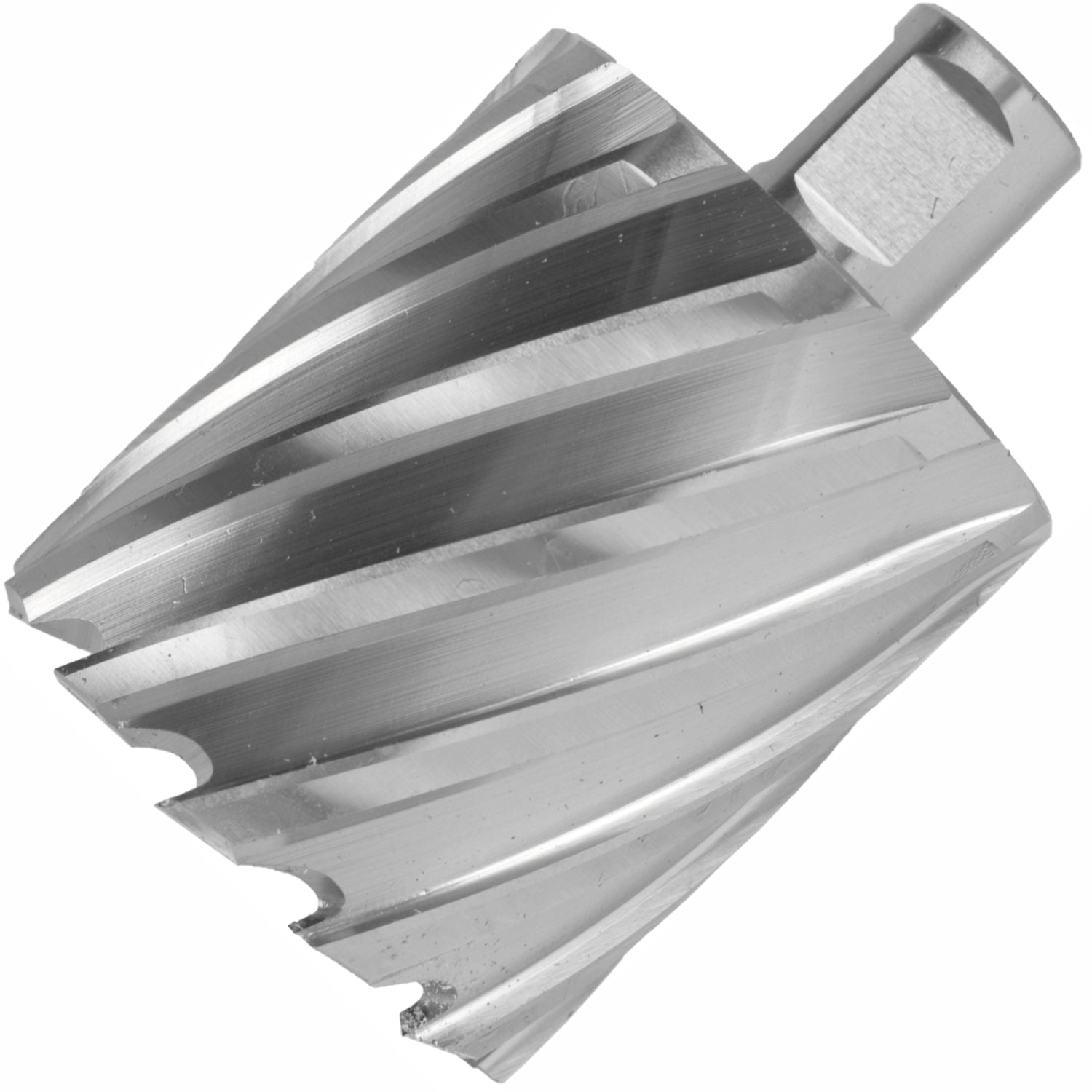

ANNULAR HOLE CUTTER HSS 58 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 58 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 1,973.00 ZAR
Regular price
Sale price
R 1,973.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share
ANNULAR HOLE CUTTER HSS 58 X 55MM WELD SHANK 19.05MM
Features
- 58 mm diameter — ideal for pipe penetrations, large bolt hole work and clearance applications.
- 55 mm cutting depth — perfect for shallow large-hole needs in plate or structural material.
- 19.05 mm (3/4') Weldon shank — two-flat drive ensures secure grip in mag-drills.
- HSS body — high-speed steel construction suitable for heavy duty metal drilling.
- Thin-wall, multi-flute design — enables faster penetration and efficient chip ejection even in large diameters.
Benefits
- Large holes rapidly: removes only the peripheral ring rather than full core, speeding large-diameter hole creation.
- Cleaner finish: fewer burrs and smoother edges mean less post-drill work and faster fit-ups.
- Less operator effort: even with large diameter, feed pressure remains manageable, especially with shallow depth.
- Durable tool: HSS construction and robust Weldon shank provide reliable industrial performance.
Extra Information
- Designed for use with magnetic-base drills or drill-presses fitted with a 19.05 mm (3/4″) Weldon arbor.
- A pilot pin (sold separately) is required for centring and slug ejection — check compatibility for your arbor and slug ejection path.
- On stainless steel or harder-grade substrates, apply suitable cutting fluid and keep feed steady to protect cutter life and ensure good chip clearance.
Pro Tip
- Mount the magnet base on a clean flat surface and verify zero debris under the magnet. Start at low RPM until cutter bites, then increase feed when steady chips form. For large diameters, pause periodically to clear chips and re-lubricate to minimize heat and maintain finish quality.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC058-2 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 58 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Suitable Materials | Mild & structural steel, cast-iron, shallow-depth large-diameter holes |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; apply cutting fluid to control heat and facilitate chip removal.
- Ensure the magnet or base clamp is firmly adhered and workpiece stable before drilling; use tethering when working on angled/overhead surfaces.
- Do not use hammer/impact mode; maintain steady feed and allow slug to eject naturally — stop immediately if feed slows or chatter develops.
- Disconnect power or disable magnet before changing cutters, pilot pins or shanks.
