ANNULAR HOLE CUTTER HSS 55 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 55 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 2,016.00 ZAR
Regular price
Sale price
R 2,016.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

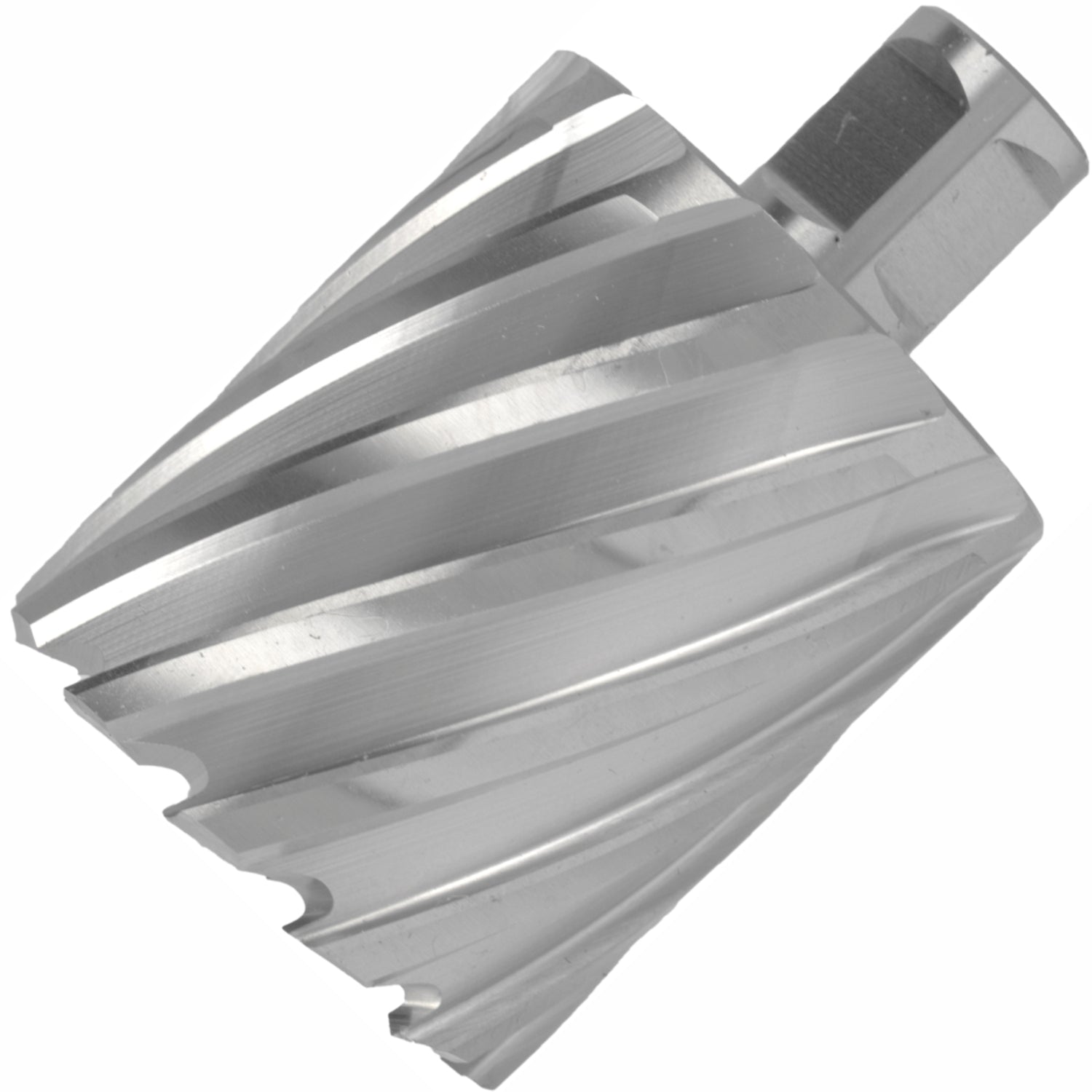

Tork Craft Annular Hole Cutter — HSS 55 × 55 mm, 19.05 mm (3/4') Weldon
Size: 55 mm x 55 mm [3/4' Weldon Shank]
This 55 mm diameter HSS annular cutter from Tork Craft is engineered for large-hole broaching in steel and cast-iron where depth is limited. With a 55 mm cutting depth and robust 19.05 mm (3/4″) Weldon shank, it delivers clean, burr-reduced holes with minimal feed force — ideal for flange, pipe, or structural plate applications where larger clearances are required.
Features
- 55 mm diameter — for large bolt holes, pipe penetrations and clearance applications.
- 55 mm cutting depth — shallow depth for large diameter holes in plate and structural elements.
- 19.05 mm (3/4') Weldon shank — two-flat drive for secure fit in magnetic drills.
- HSS material — high-speed steel construction suitable for steel and cast-iron applications.
- Thin-wall, multi-flute design — fast penetration and efficient slug ejection even in larger diameters.
Benefits
- Large holes made quickly: removes only the ring of material for faster large-diameter hole creation.
- Smoother finish: reduced burrs and cleaner edges for improved fit and less rework.
- Lower feed effort: despite large diameter, feed pressure remains manageable, especially with shallow depth.
- Durable tool life: HSS cutter body and Weldon interface provide industrial-level performance.
Extra Information
- Designed for use with magnetic-base drills or drill-presses equipped with 19.05 mm (3/4″) Weldon arbor.
- A pilot pin (sold separately) is required for centring and slug ejection — confirm size compatibility with your arbor.
- When drilling stainless steel or harder materials, apply suitable cutting fluid and maintain steady feed to protect cutter life and ensure clean chip removal.
Pro Tip
- Ensure magnet base sits flat and secure on the workpiece. Start at low speed until nibbing begins then increase feed. Clear chips frequently and apply lubricant to maintain finish and prolong cutter life even in large-diameter shallow holes.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC055-2 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 55 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Suitable Materials | Mild & structural steel, cast-iron, shallow-depth large-diameter holes |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; apply cutting fluid to control heat and assist chip evacuation.
- Ensure the magnet or base clamp is firmly secured and the workpiece stable before drilling; use a tether when working overhead or on angled surfaces.
- Do not use hammer/impact mode; maintain smooth, steady feed and allow the slug to eject naturally — stop immediately if feed slows or chatter begins.
- Disconnect power or disable magnet before changing cutters, pilot pins or shanks.
