ANNULAR HOLE CUTTER HSS 31 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER HSS 31 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 580.00 ZAR
Regular price
Sale price
R 580.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

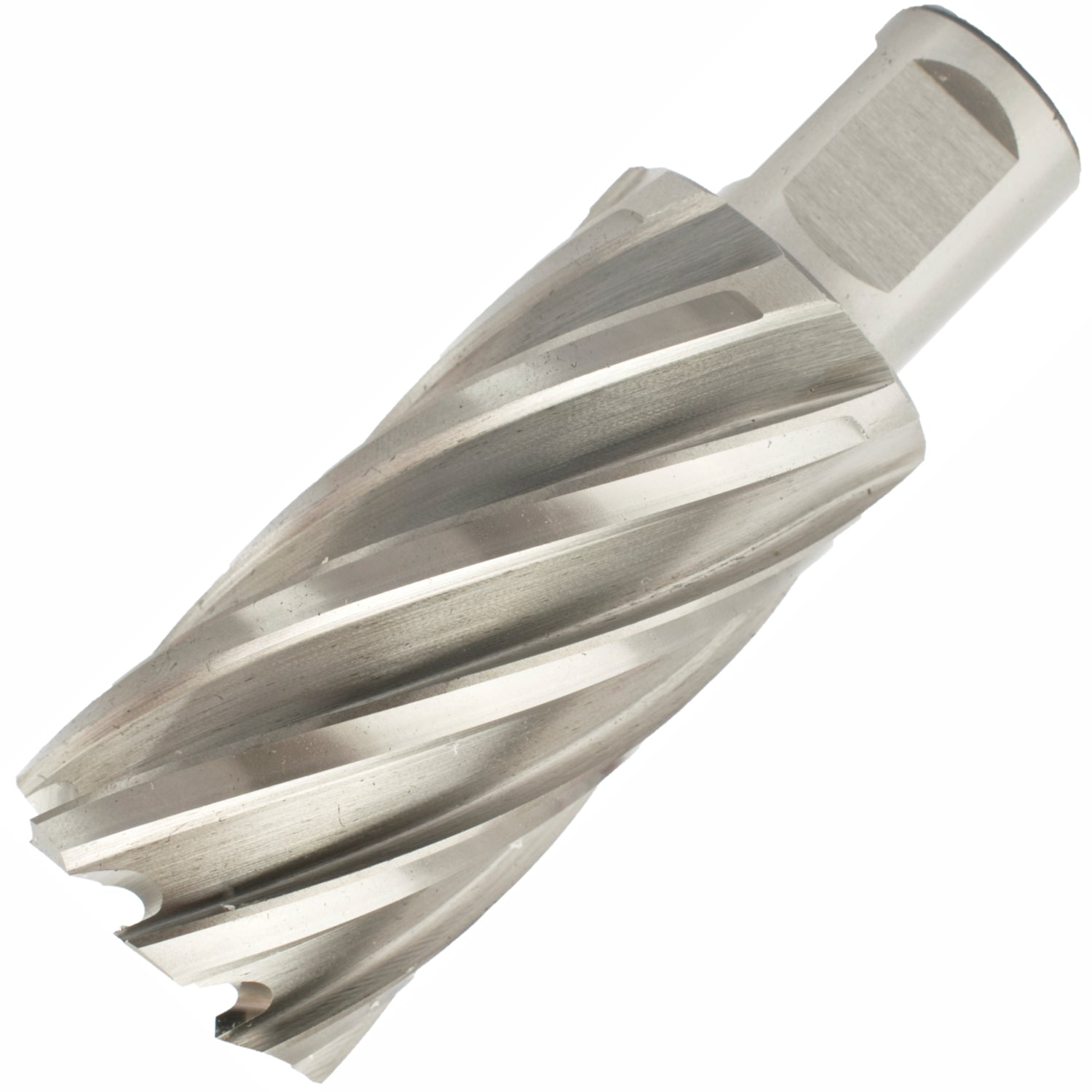

Tork Craft Annular Hole Cutter — HSS 31 × 55 mm, 19.05 mm (3/4') Weldon
Size: 31 mm x 55 mm [3/4' Weldon Shank]
The 31 mm HSS annular cutter from Tork Craft delivers high-performance broaching for steel and cast-iron. With a 55 mm cutting depth and robust 19.05 mm (3/4″) Weldon shank, this tool is built to produce clean, burr-reduced holes efficiently while minimizing feed pressure and maximising machine life.
Features
- 31 mm diameter — suitable for larger bolts, sleeves and clearance holes.
- 55 mm cutting depth — handles substantial plate thicknesses and multi-stack setups.
- 19.05 mm (3/4') Weldon shank — secure two-flat drive for use in magnetic drills and arbors.
- HSS (high-speed steel) body — durable construction for metal drilling applications.
- Thin-wall, multi-flute geometry — faster penetration, efficient chip removal and reduced machine load.
Benefits
- Faster drilling: removes only the ring of material rather than full core, reducing time per hole.
- Cleaner finish: less burr-formation means less cleanup and better fit for bolt/sleeve applications.
- Reduced effort: lower feed pressure required, especially helpful on vertical or overhead drilling.
- Versatile tool life: HSS material and Weldon shank design give longevity and reliable performance for industrial use.
Extra Information
- Designed for use with magnetic-base drills or drill presses fitted with a 19.05 mm (3/4″) Weldon shank arbor.
- A pilot pin (sold separately) is required for centring the cutter and ejecting the slug—confirm compatibility with your arbor.
- When drilling stainless steel or harder materials, apply proper cutting fluid and maintain a steady feed to protect the cutter and ensure efficient chip evacuation.
Pro Tip
- Ensure the magnet or base of the drill sits flat and clean on the workpiece. Start at low RPM, then increase feed once continuous chips form. On deep cuts, pause to clear chips and re-lubricate to avoid overheating and extend cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC031-2 |
| Product Type | Annular hole cutter (HSS) |
| Diameter | 31 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip/Body Material | High-Speed Steel (HSS) |
| Body Design | Alloy steel, thin-wall, multi-flute |
| Suitable Materials | Mild & structural steel, cast iron, general metals |
| Recommended Machine | Magnetic-base drill or drill press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use appropriate cutting fluid to control heat and assist chip removal.
- Ensure the magnet or base is firmly clamped to a flat work surface; confirm workpiece stability and use a tether if drilling overhead or on angled surfaces.
- Do not use hammer or impact mode; feed steadily and allow the slug to eject naturally. If feed slows or chatter begins, stop and clear chips immediately.
- Disconnect power or disable magnet before changing cutters, pilot pins or shanks.
