ANNULAR HOLE CUTTER TCT 30 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER TCT 30 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 725.00 ZAR
Regular price
Sale price
R 725.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

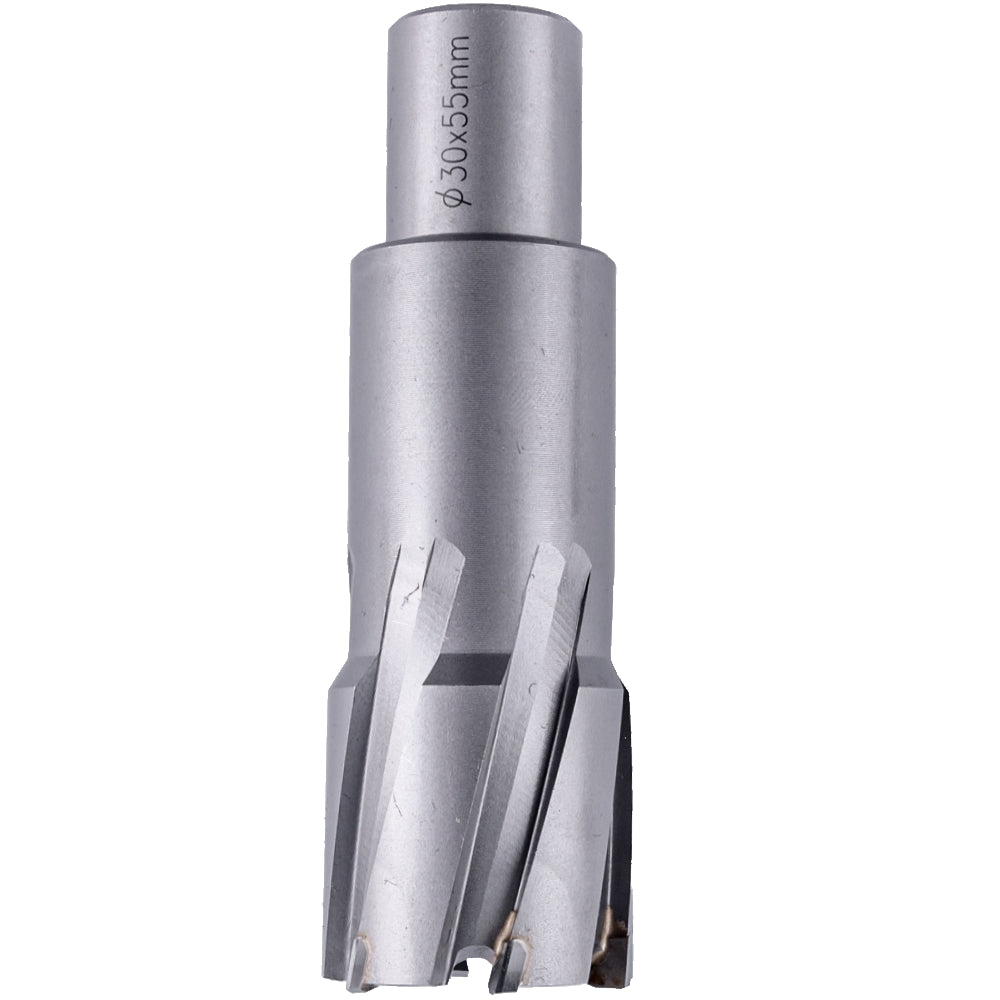

Tork Craft Annular Hole Cutter — TCT 30 × 55 mm, 19.05 mm (3/4') Weldon
Size: 30 mm x 55 mm [3/4' Weldon Shank]
The 30 mm diameter TCT annular cutter from Tork Craft is engineered to deliver high-efficiency holes in structural steel, plate and cast-iron. With a 55 mm cutting depth and robust 19.05 mm (3/4″) Weldon shank, it creates clean, burr-reduced holes with less feed force — ideal for repetitive industrial drilling.
Features
- 30 mm diameter — for larger bolt clearances and conduit penetrations.
- 55 mm cutting depth — accommodates thicker materials and stacked plate.
- 19.05 mm (3/4') Weldon shank — two-flat drive for reliable fit in magnetic drills.
- TCT (tungsten-carbide-tipped) teeth — long life and sustained cutting speed in steel and cast-iron.
- Thin-wall, multi-flute body — faster penetration, efficient chip evacuation and lower heat build-up.
Benefits
- Faster hole making: removes only the peripheral ring of material, making the cut quicker vs a twist bit.
- Cleaner finish: fewer burrs and smoother edges — less post-drill cleanup.
- Extended tool life: carbide tips maintain sharpness even in tough materials.
- Lower operator fatigue: reduced feed pressure, beneficial for vertical or overhead operations.
Extra Information
- Use in a magnetic-base drill or drill press with compatible Weldon shank arbor.
- A pilot pin (sold separately) is required for centring and ejection of the slug.
- When drilling stainless steel or harder-grade materials, apply suitable cutting fluid and maintain steady feed to protect carbide tips and maintain chip-clearance.
Pro Tip
- Ensure the magnet sits flat and clean on the workpiece. Start at low speed, then increase feed once consistent curly chips form. On deeper cuts, pause to clear chips and re-lubricate to avoid heat build-up and preserve finish and tool life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC030-4 |
| Product Type | Annular hole cutter (TCT) |
| Diameter | 30 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip Material | Tungsten-carbide-tipped |
| Body | Alloy steel, thin-wall design |
| Suitable Materials | Mild & structural steel, stainless (with coolant), cast-iron |
| Recommended Machine | Magnetic-base drill / drill press with Weldon arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to control heat and aid chip removal.
- Ensure the magnet or work clamp is firmly secured and the workpiece stable before drilling; tether the drill when working at height or on angled surfaces.
- Do not use hammer or impact mode; maintain a smooth feed and allow the slug to eject naturally — if feed slows or chatter occurs, stop and clear chips immediately.
- Disconnect power or disable the magnet before changing cutters, shanks or pilot pins.
