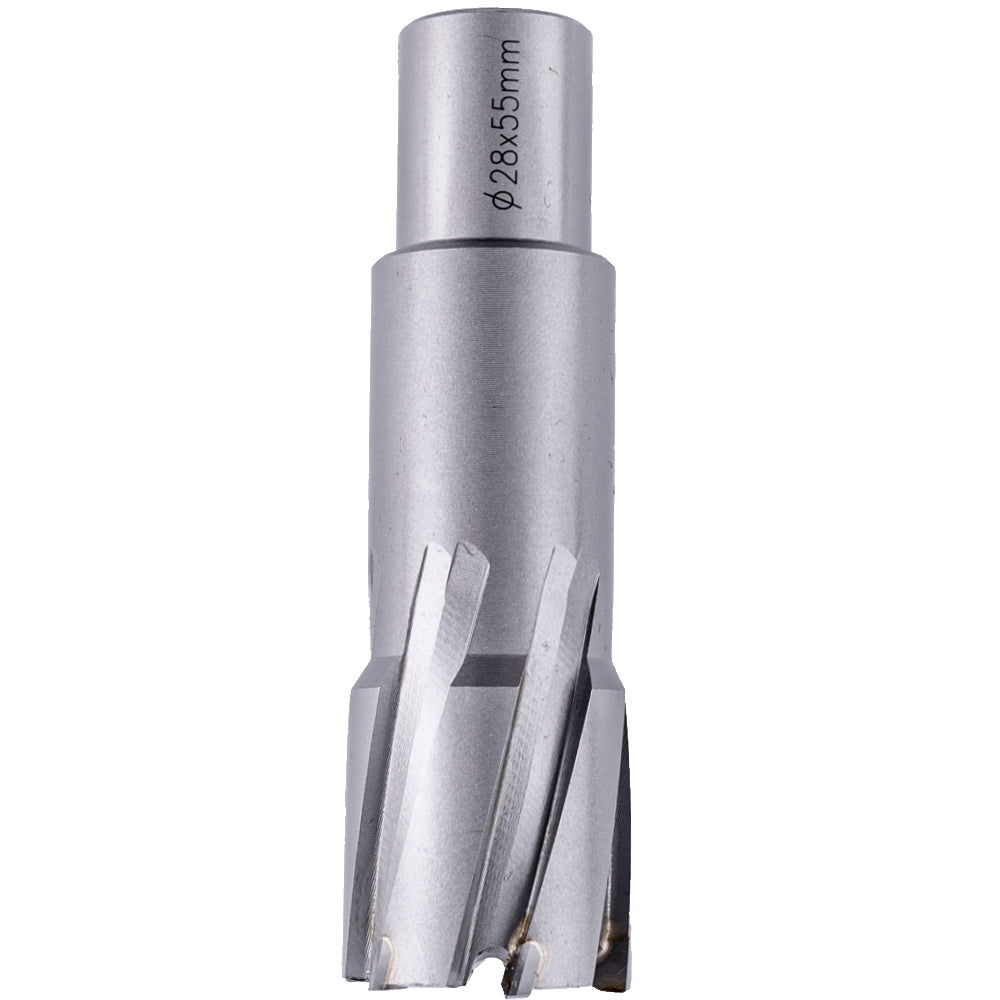

ANNULAR HOLE CUTTER TCT 28 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER TCT 28 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 725.00 ZAR
Regular price
Sale price
R 725.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share
Tork Craft Annular Hole Cutter — TCT 28 × 55 mm, 19.05 mm (3/4') Weldon
Size: 28 mm x 55 mm [3/4' Weldon Shank]
The 28 mm diameter TCT annular cutter from Tork Craft is engineered for high-efficiency hole making in steel and cast-iron. With a 55 mm cutting depth and a rugged 19.05 mm (3/4″) Weldon shank, this tool delivers fast, clean broaches with minimal burrs and reduced feed pressure — ideal for workshop or site use.
Features
- 28 mm diameter — for larger bolt holes, clearance and pipe penetrations.
- 55 mm cutting depth — suitable for standard plate thickness and stacked materials.
- 19.05 mm (3/4') Weldon shank — secure two-flat drive system for magnetic drills.
- TCT teeth — long-life tungsten-carbide tips for demanding materials like cast-iron and heavy-duty steels.
- Thin-wall, multi-flute body — optimized for quick penetration and effective chip removal.
Benefits
- Faster drilling: removes only a peripheral ring of material, not the full core like a twist bit.
- Cleaner holes: lower burr formation means less finishing work.
- Reduced machine load: lower feed force means better performance on overhead or vertical applications.
- Longer tool life: tighter tolerance carbide tips stand up to hard materials and high use.
Extra Information
- Designed for use with a magnetic-base drill or compatible drill press arbor with Weldon shank.
- A pilot pin (sold separately) is required to centre the cutter and eject the slug; check compatibility with your arbor.
- On stainless or harder materials, use suitable cutting fluid, steady feed and periodic chip clearing to protect the tool and maintain finish.
Pro Tip
- Ensure the magnet base sits flat and clean on the workpiece. Begin at lower RPM until the cutter seats, then increase feed once you get consistent curling chips. If you notice increased vibration or are drilling stacked materials, pause to clear chips and re-lubricate to maintain finish and prolong cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC028-4 |
| Product Type | Annular hole cutter (TCT) |
| Diameter | 28 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip Material | Tungsten-carbide-tipped |
| Body | Alloy steel, thin-wall design |
| Suitable Materials | Mild & structural steel, stainless (with coolant), cast-iron |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon shank arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; apply cutting fluid to manage heat and chip flow.
- Ensure the magnet base or work clamp is firmly secured and the workpiece stable before drilling; use a tether when working overhead or on angled surfaces.
- Do not use hammer/impact mode; feed steadily and allow the slug to eject naturally—if feed slows, stop and clear chips immediately.
- Disconnect power or disable magnet before changing cutters, pilot pins or shanks.
