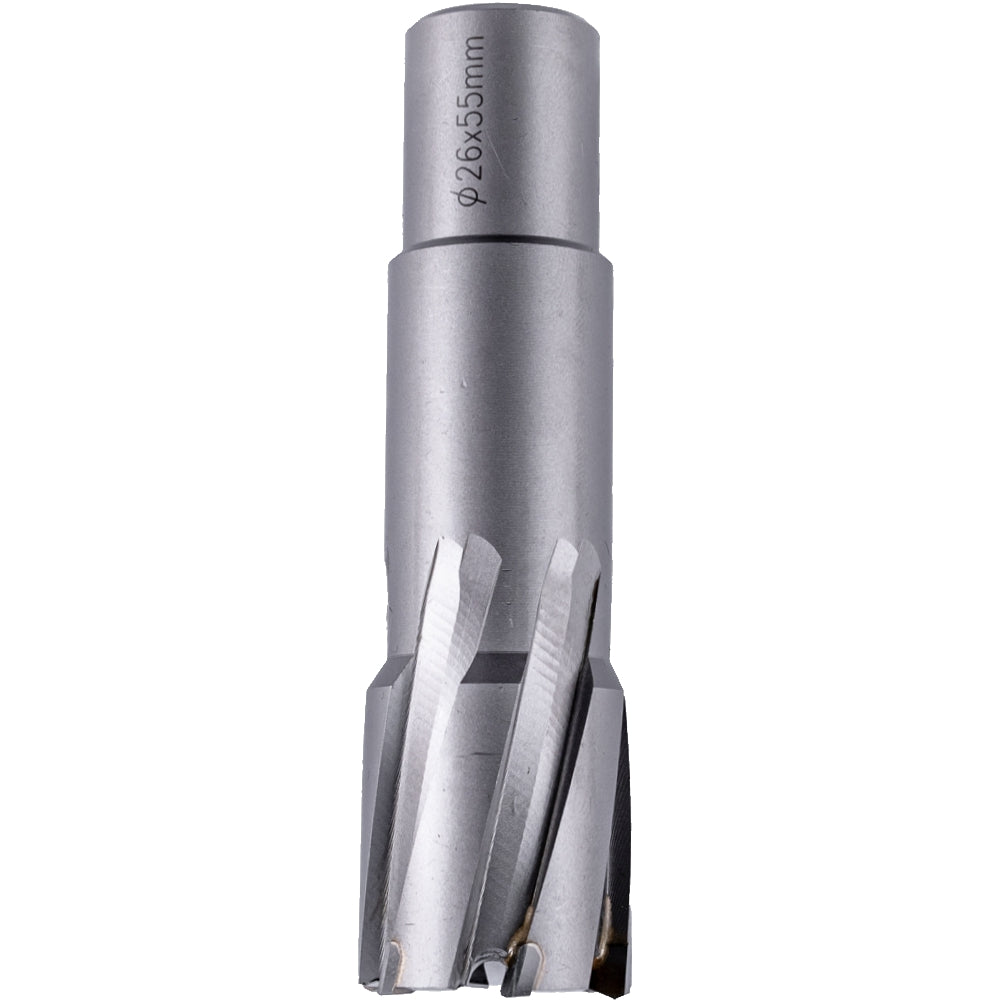

Tork Craft Annular Hole Cutter — TCT 26 × 55 mm, 19.05 mm (3/4') Weldon
Size: 26 mm x 55 mm [3/4' Weldon Shank]
The 26 mm TCT annular cutter by Tork Craft is designed for robust performance in steel and cast-iron drilling. With a55 mm cutting depth and a secure 19.05 mm (3/4') Weldon shank, it delivers fast, clean holes while minimising feed pressure and burr formation.
Features
- 26 mm diameter — accommodates larger anchor bolts and clearance holes.
- 55 mm cutting depth — suitable for thick plate and stacked material.
- 19.05 mm (3/4') Weldon shank — secure two-flat drive fits most magnetic-base drills.
- TCT (tungsten-carbide-tipped) teeth — long life and high cutting speed in demanding materials.
- Thin-wall, multi-flute body — faster penetration with reduced feed force and better chip ejection.
Benefits
- Faster hole-making: only the peripheral material is removed, making the cut quicker than a traditional twist drill.
- Cleaner finish: reduced burrs and smoother edges means less post-drilling clean-up.
- Longer tool life: carbide tips stay sharp for many holes in steel and cast-iron.
- Lower operator fatigue: reduced feed force is helpful especially during overhead or vertical drilling work.
Extra Information
- Use in a magnetic-base drill or a compatible drill-press with Weldon shank arbor.
- A pilot pin (sold separately) is required for centring and slug ejection—check your arbor/holder to match size.
- When drilling stainless steel or harder materials, apply cutting fluid and maintain steady feed to preserve cutter life and chip clearance.
Pro Tip
- Clean the magnet base surface thoroughly and clamp to a flat area. Start the drill at lower speed until the cutter locates, then increase feed until consistent chips form. Stop periodically to clear chips and re-lubricate on deeper cuts to maximise finish and tool durability.
Extra Information
- Use in a magnetic-base drill or a compatible drill-press with Weldon shank arbor.
- A pilot pin (sold separately) is required for centring and slug ejection—check your arbor/holder to match size.
- When drilling stainless steel or harder materials, apply cutting fluid and maintain steady feed to preserve cutter life and chip clearance.
Pro Tip
- Clean the magnet base surface thoroughly and clamp to a flat area. Start the drill at lower speed until the cutter locates, then increase feed until consistent chips form. Stop periodically to clear chips and re-lubricate on deeper cuts to maximise finish and tool durability.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC026-4 |
| Product Type | Annular hole cutter (TCT) |
| Diameter | 26 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat drive |
| Tip Material | Tungsten-carbide-tipped |
| Body | Alloy steel, thin-wall design |
| Suitable Materials | Mild & structural steel, stainless (with coolant), cast-iron |
| Recommended Machine | Magnetic-base drill or drill-press with Weldon shank arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to control heat and aid chip flow.
- Ensure the magnet (or work clamp) is firmly secured and the workpiece stable before operating; tether the drill when working at height or on angled surfaces.
- Do not use hammer or impact action; maintain steady feed and allow the slug to eject naturally to avoid jamming.
- Disconnect power before changing cutters, pilot pins or shanks.
