ANNULAR HOLE CUTTER TCT 24 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER TCT 24 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 688.00 ZAR
Regular price
Sale price
R 688.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

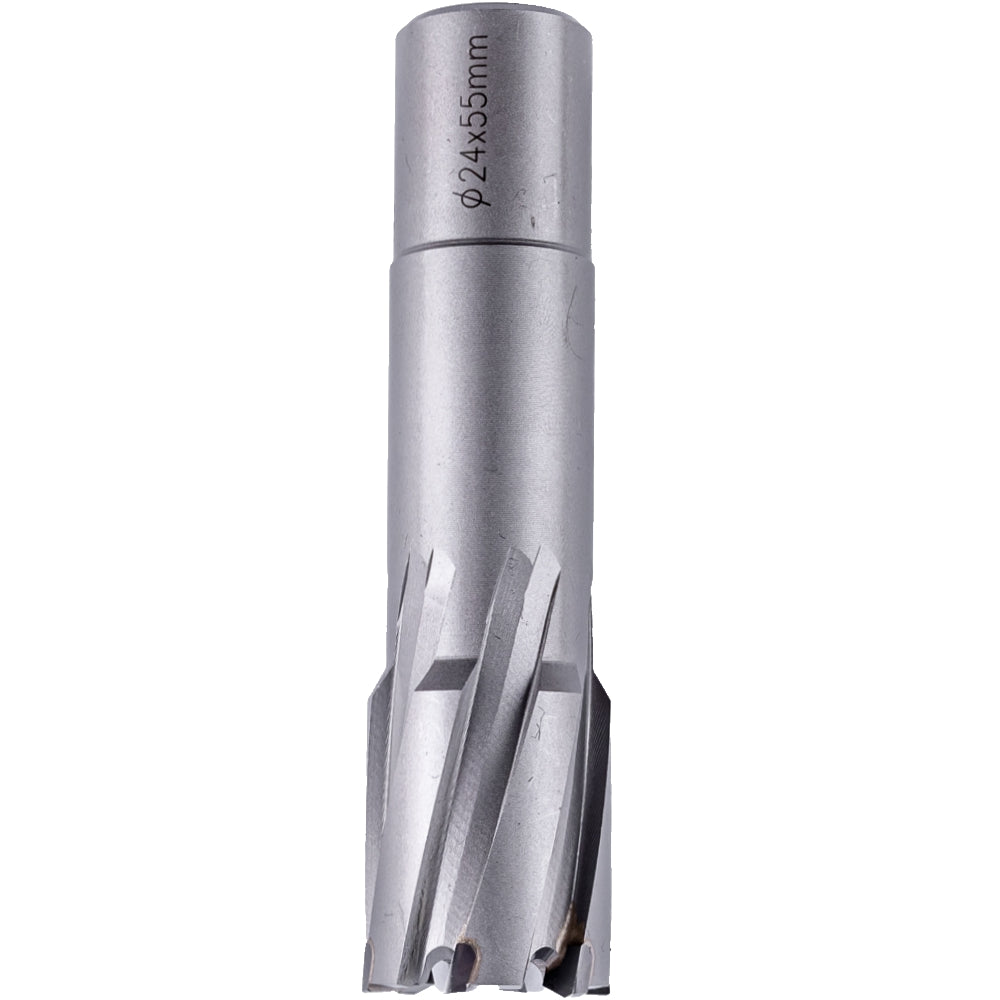

Tork Craft Annular Hole Cutter — TCT 24 × 55 mm, 19.05 mm (3/4') Weldon
Size: 24 mm x 55 mm [3/4' Weldon Shank]
This 24 mm TCT annular cutter is designed for fast, accurate holes through structural steel, plate and cast-iron. The tungsten-carbide-tipped teeth and thin-wall construction deliver high performance while the 19.05 mm (3/4') Weldon shank ensures firm drive engagement in magnetic drills and compatible arbors.
Features
- 24 mm diameter — ideal for larger anchor bolts, bushings and conduit holes.
- 55 mm cutting depth — effective for standard plate thicknesses and thin structural steels.
- 19.05 mm (3/4') Weldon shank — reliable two-flat drive for mag-drills.
- TCT (tungsten-carbide-tipped) teeth — designed for heavy duty cuts through steel and cast-iron with extended tool life.
- Thin-wall, multi-flute body — promotes rapid penetration and efficient chip removal.
Benefits
- High productivity: removes only a thin ring of material so faster cuts and less operator fatigue.
- Cleaner holes: fewer burrs and smoother finishes reduce post-drilling cleanup.
- Extended tool life: carbide tips maintain cut quality across many holes.
- Lower feed force: ideal for vertical or overhead operations where feed effort is crucial.
Extra Information
- Use with magnetic-base drill or compatible drill-press arbor with Weldon shank mounting.
- A pilot pin (sold separately) is required for centring the cutter and ejecting the slug.
- For stainless steel or harder material, apply adequate cutting fluid and maintain steady feed to protect carbide tips and prevent chip clogging.
Pro Tip
- Mount the cutter on a clean, flat surface; ensure magnet is firmly engaged; begin at low RPM and increase feed only when chips form in consistent streams. Clear chips and re-lubricate during deep cuts to preserve finish and cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC024-4 |
| Product Type | Annular hole cutter (TCT) |
| Diameter | 24 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat |
| Tip Material | Tungsten-carbide-tipped |
| Body | Alloy steel, thin-wall |
| Suitable Materials | Mild & structural steel, stainless (with coolant), cast-iron |
| Recommended Machine | Magnetic-base drill / drill-press with Weldon shank arbor |
| Pilot Pin | Required for centring & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to control heat and improve chip flow.
- Ensure the magnet is securely attached and the workpiece is stable before drilling; in overhead or elevated situations use additional anchoring.
- Do not use hammer action; feed steadily and allow the slug to eject—stop and clear chips if feed slows or juddering occurs.
- Disconnect power or disable magnet before changing cutters, shanks or pilot pins.
