ANNULAR HOLE CUTTER TCT 22 X 55MM WELD SHANK 19.05MM
ANNULAR HOLE CUTTER TCT 22 X 55MM WELD SHANK 19.05MM
Available in Store
Available from Supplier
Sold Out
Regular price
R 688.00 ZAR
Regular price
Sale price
R 688.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability
Share

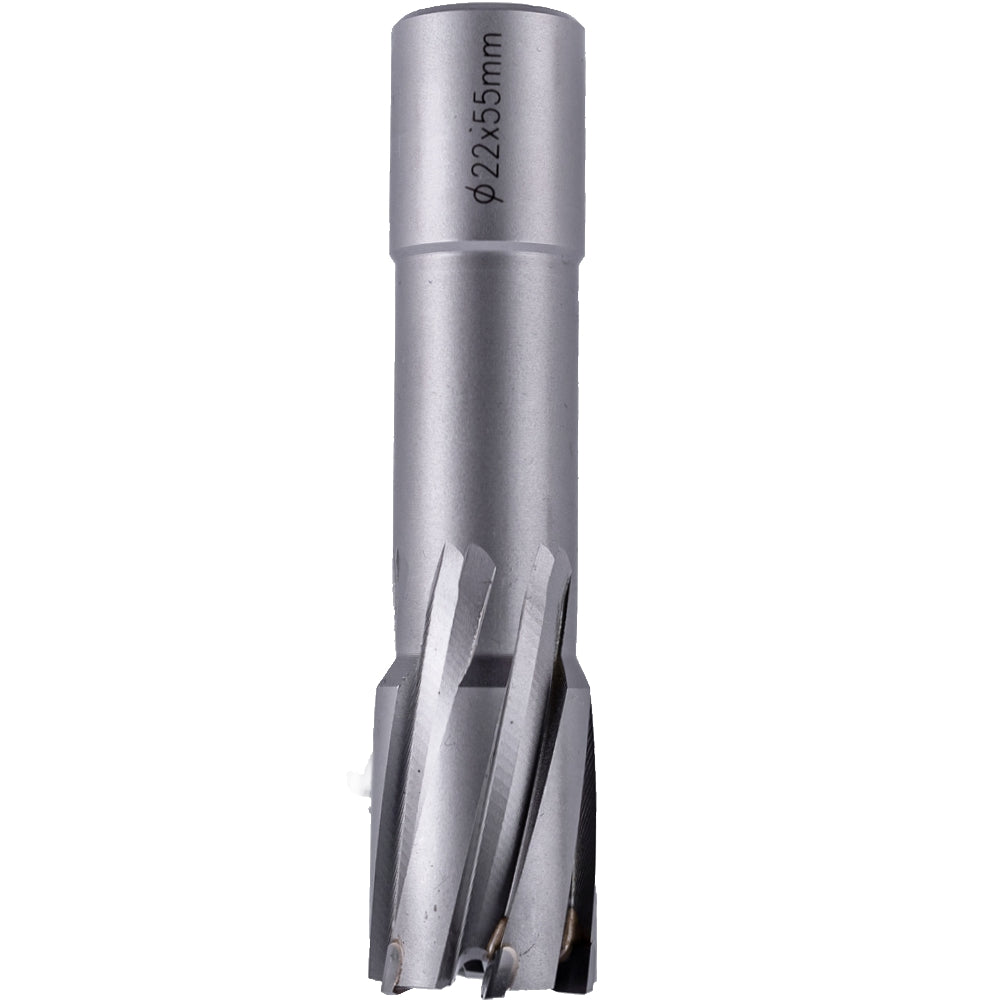

Tork Craft Annular Hole Cutter — TCT 22 × 55 mm, 19.05 mm (3/4') Weldon
Size: 22 mm x 55 mm [3/4' Weldon Shank]
The 22 mm TCT annular cutter removes only a thin ring of material for quicker holes, lower feed pressure and a cleaner finish. Carbide-tipped teeth stay sharp in demanding steels, while the robust 19.05 mm (3/4″) Weldon shank provides secure, slip-free drive in most magnetic-base drills and compatible arbors.
Features
- 22 mm diameter — accurate sizing for anchors, bushings and clearance holes.
- 55 mm cutting depth — handles common plate thicknesses and stacked material.
- 19.05 mm (3/4') Weldon shank — two-flat drive for secure clamping.
- TCT teeth — long life and sustained cutting speed in structural steel and cast iron.
- Thin-wall, multi-flute geometry to speed penetration and evacuate chips efficiently.
Benefits
- Faster holes than twist drilling by removing less material.
- Smoother finish with reduced burrs and less cleanup.
- Extended tool life from wear-resistant carbide tips.
- Lower effort — reduced feed pressure on vertical and overhead jobs.
Extra Information
- Use with magnetic-base drills or drill presses fitted with a Weldon-shank arbor.
- A pilot pin is required for centering and slug ejection (sold separately).
- Apply cutting fluid and steady feed, especially on stainless or harder grades.
Pro Tip
- Ensure the magnet seats on a clean, flat surface. Start at low RPM, then increase feed until chips form in continuous curls. Pause to clear chips and re-lubricate on deep cuts for best finish and tool life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Cat No. | TCAC022-4 |
| Product Type | Annular hole cutter (TCT) |
| Diameter | 22 mm |
| Cutting Depth | 55 mm |
| Shank | 19.05 mm (3/4') Weldon, two-flat |
| Tip Material | Tungsten-carbide-tipped |
| Body | Thin-wall |
| Suitable Materials | Mild & structural steel, stainless (with coolant), cast iron |
| Recommended Machine | Magnetic-base drill / drill press with Weldon arbor |
| Pilot Pin | Required for centering & slug ejection |
| Pack Quantity | 1 |
Safety
- Wear eye, ear and gloves protection; use cutting fluid to manage heat and chip flow.
- Verify magnet adhesion before drilling; tether the drill when working at height.
- Do not use hammer action; maintain straight, steady feed and allow the slug to eject.
- Disconnect power before changing cutters or pilot pins.
