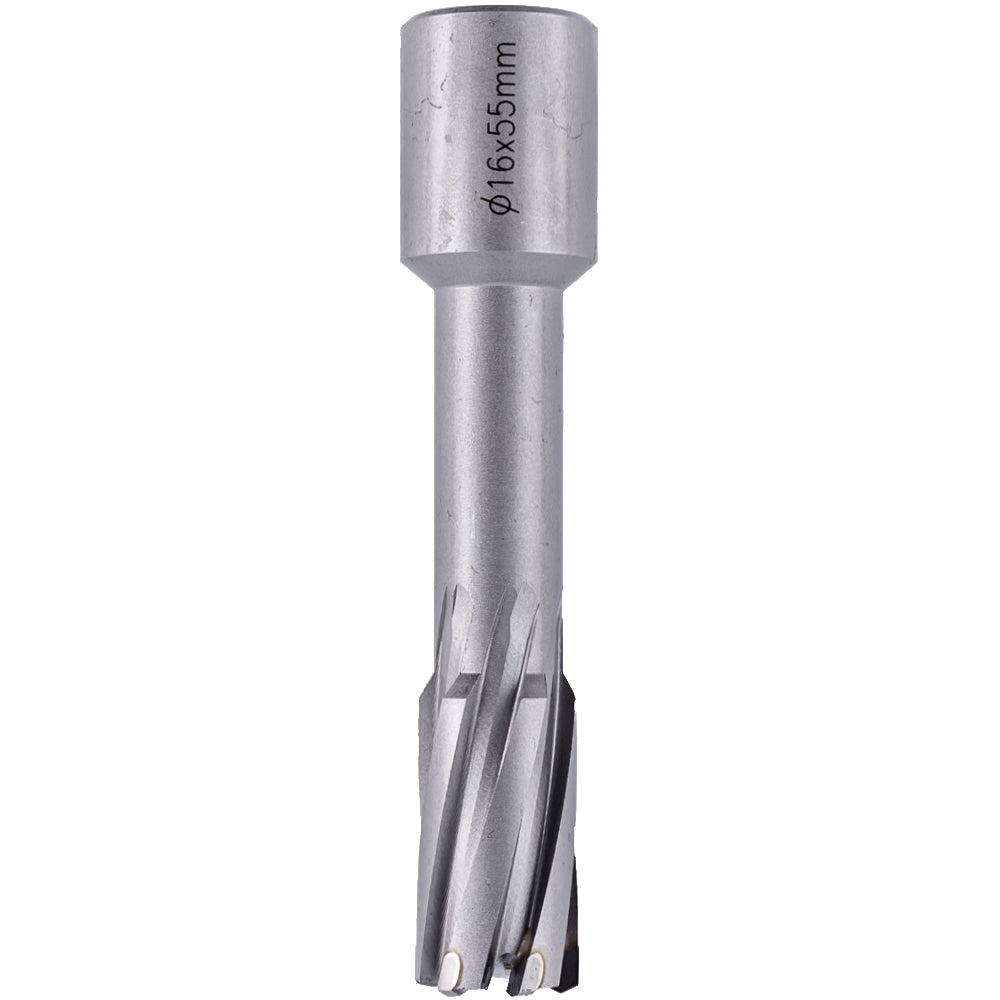

Tork Craft Annular Hole Cutter — TCT, 16 × 55 mm, Weldon Shank 19.05 mm (Model TCAC016-4)
The Tork Craft TCAC016-4 annular cutter features a 16 mm diameter with a 55 mm cutting depth and a 19.05 mm Weldon shank. Built for demanding fabrication work, its tungsten-carbide tipped (TCT) cutting edges ensure fast, clean holes in steel, structural sections or pipe applications where precision and durability matter.
Features
- 16 mm diameter cutting size with a 55 mm cutting depth. :contentReference[oaicite:0]{index=0}
- Weldon shank diameter: 19.05 mm — compatible with most magnetic-drill arbors and core-drilling systems.
- TCT (tungsten-carbide tipped) construction for high performance and long tool life in metal-drilling applications.
- Annular cutter design removes only the hole’s periphery rather than the full core, resulting in faster cuts, less thrust and cleaner holes.
Benefits
- Quick and efficient: Core-drilling reduces cycle time compared to twist drills.
- High finish quality: Produces well-defined holes with minimal burrs thanks to TCT technology.
- Reduced machine load: Less thrust and heat mean lower stress on equipment.
- Reliable in fabrication: Weldon shank provides secure fitting and accuracy under load.
Extra Information
- Designed for use with magnetic drills or core-drilling rigs accepting a 19.05 mm Weldon shank.
- Ensure proper clamping of the workpiece and stable drilling setup to avoid chatter and misalignment.
- Use cutting fluid or lubricant when drilling steel to extend tool life and maintain finish quality.
Pro Tip
- Start drilling at a moderate speed and allow the TCT teeth to cut cleanly — don’t force the feed too fast.
- After the hole is complete, back the cutter slowly and extract the slug cleanly — avoid twisting while the tool is spinning.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / SKU | TCAC016-4 |
| Product Type | Annular Hole Cutter (TCT) – Weldon Shank |
| Diameter | 16 mm |
| Cutting Depth | 55 mm |
| Shank Diameter | 19.05 mm (Weldon) |
| Tip Type | Tungsten Carbide (TCT) |
| Typical Application | Metal core-drilling, structural steel fabrication, pipe / plate penetrations |
Safety
- Wear eye protection, hearing protection and gloves when drilling metal.
- Ensure the magnetic base or drilling machine is secured and the workpiece is clamped before use.
- Do not exceed the cutter’s recommended RPM or feed rate for the material being drilled.
- Allow the tool to stop completely before retracting to avoid damage or tool breakage.
