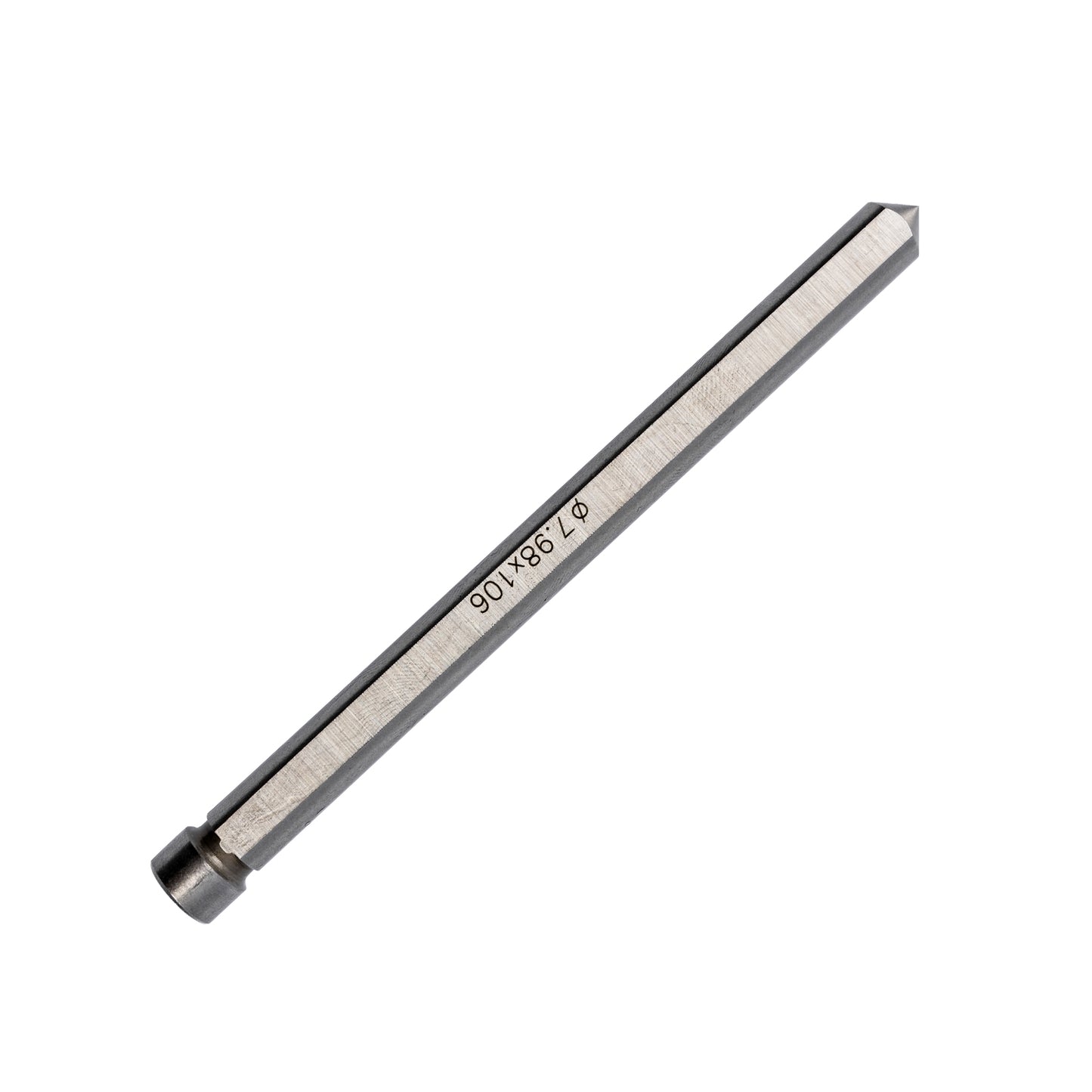

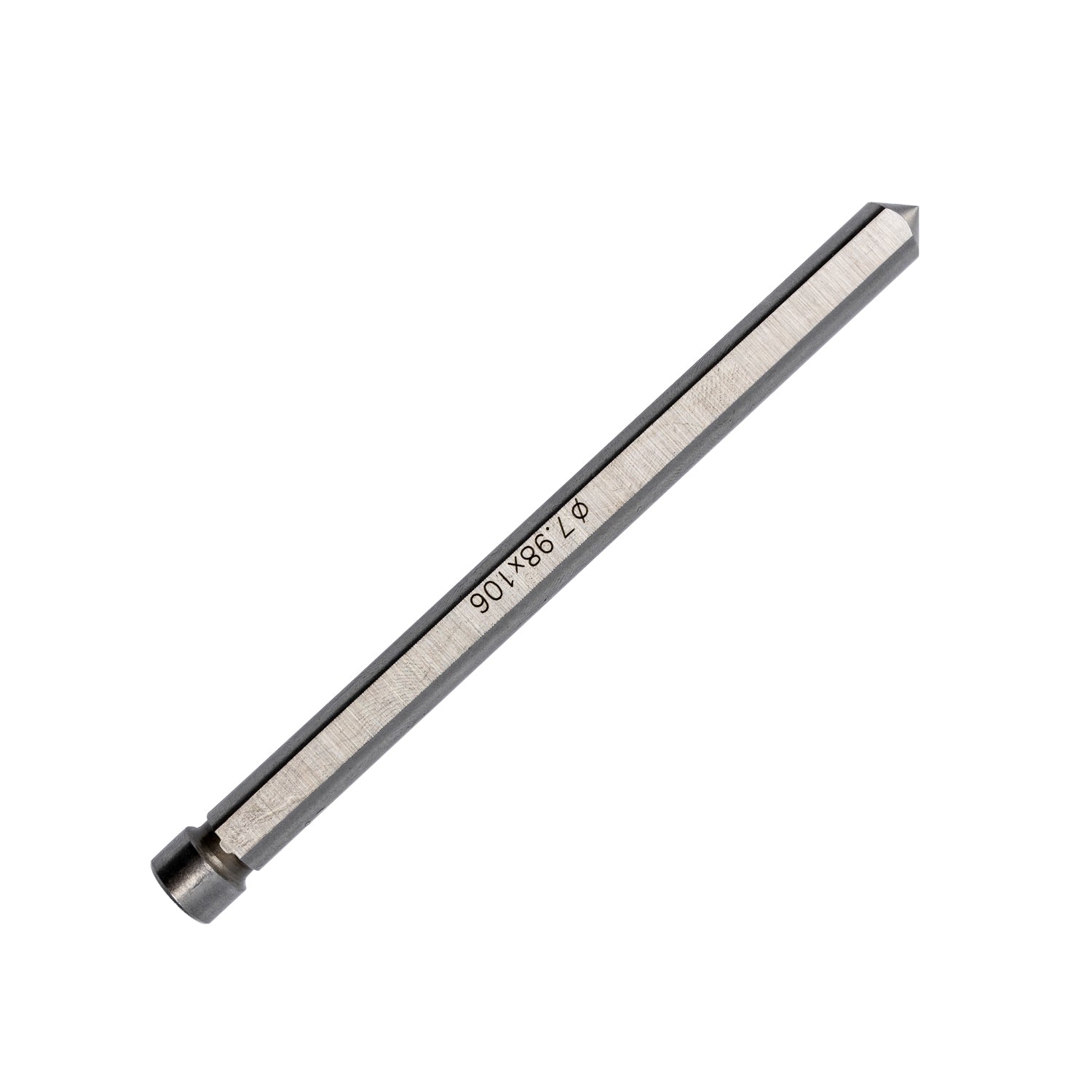

PILOT PIN TCT CUTTER 18MM - 102MM X 50MM 7.9 X 108MM BROACH CUTTE
Features
- Compatible with TCT annular cutters in the 18 mm – 102 mm diameter range.
- Designed for cutters with a 50 mm cutting depth.
- Shank size: 7.9 mm × 108 mm — fits standard drill chucks and arbors.
- Precision pilot drill included for improved centering and cut accuracy.
- High-strength steel construction for durability in demanding fabrication work.
Benefits
- Wide compatibility: Supports a broad range of cutter sizes (18-102 mm) with one mandrel.
- Precise holes: Pilot drill helps maintain true alignment and reduces wanders when initiating a cut.
- Reliable slug ejection: Designed to work with TCT cutters to facilitate clean holes and fast removal of the central slug.
- Longevity: High-quality materials maintain integrity and alignment through repeated use.
Extra Information
- Best suited for TCT annular cutters requiring 50 mm cutting depth and 7.9 mm × 108 mm shank.
- In metal fabrication, use cooling/lubrication to extend cutter and mandrel life.
- Always ensure the pilot drill and shank are securely fixed before operation to prevent misalignment or damage.
Pro Tip
- When using large diameter cutters (e.g., > 50 mm), begin at slower RPM and moderate feed rate to reduce heat and prolong tool life.
- Inspect the pilot drill bit after each job — if worn, replace promptly to maintain accurate centering.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / SKU | TCAC0005-04 |
| Product Type | Pilot Pin / Arbor for TCT Annular Cutters |
| Compatible Cutter Diameter | 18-102 mm |
| Supported Cutting Depth | 50 mm |
| Shank Size | 7.9 mm × 108 mm |
| Material | Hardened Steel with Pilot Drill |
| Typical Use | Metal fabrication, broach drilling, TCT annular cutter setups |
Safety
- Disconnect power tool before fitting or removing the pilot pin and cutters.
- Wear eye, ear and hand protection during drilling operations.
- Ensure the mandrel and hole saw/cutter are securely tightened before use.
- Do not exceed recommended RPM or feed pressure for the cutters in use.
