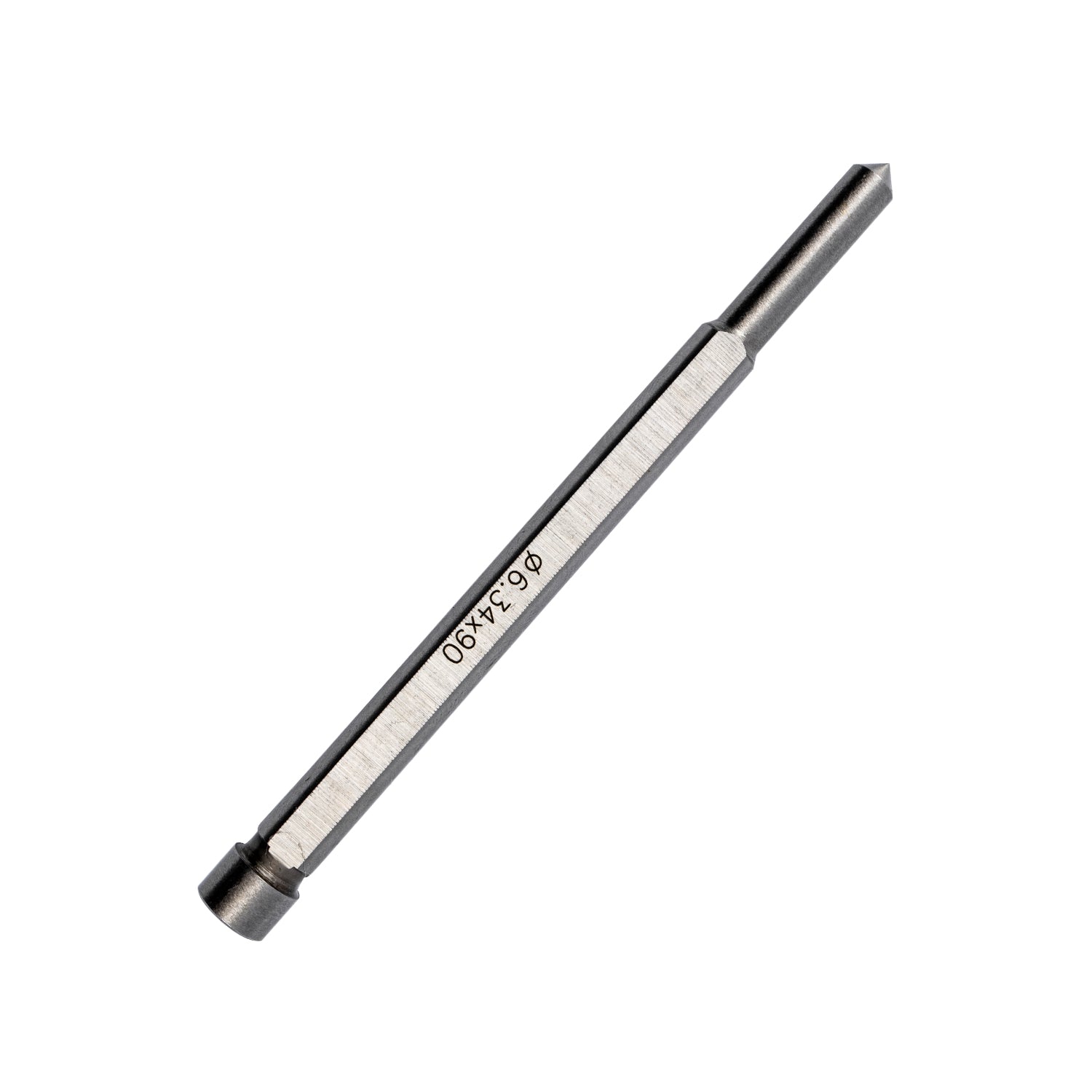

PILOT PIN TCT CUTTER 12 - 17MM X 35MM 6.3 X 90MM BROACH CUTTE
Features
- Compatibile with TCT annular cutters sized 12 mm–17 mm diameter.
- Designed for cutters with 35 mm cutting depth.
- 6.3 mm × 90 mm shank size — fits most standard drill chucks/arbors.
- Precision pilot drill ensures stable centring and less burr at entry.
- High-strength steel construction for durability and accurate performance.
Benefits
- Improved accuracy: Pilot pin prevents cutter wander and improves hole placement.
- Clean finish: Proper centring reduces tear-out and burrs, especially in thin materials.
- Efficient operation: Ensures consistent slug ejection and faster drilling cycles.
- Durable build: Made to withstand repeated use with high-performance cutters.
Extra Information
- Designed for TCT annular cutters (12–17 mm) on magnetic drills, hand drills or arbor systems.
- Use drilling lubricant on metal applications to extend pilot life and maintain finish quality.
- Inspect the pilot drill periodically for wear or damage to maintain accuracy.
Pro Tip
- Apply a minimal amount of lubricant when drilling mild steel to reduce heat build-up and extend cutter life.
- When changing cutters, ensure the pilot pin shank is clean and free of debris for correct seating and true hole alignment.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / SKU | TCAC0005-03 |
| Product Type | Pilot Pin for TCT Annular Cutters |
| Compatible Cutter Diameter | 12 mm – 17 mm |
| Cutting Depth Supported | 35 mm |
| Shank Size | 6.3 mm × 90 mm |
| Material | Hardened steel with pilot drill |
| Intended Use | Broach drilling, centring for TCT hole saws, slug ejection facilitation |
Safety
- Disconnect power before fitting or removing pilot pins or cutters.
- Always wear eye and hearing protection when drilling operations are in progress.
- Ensure secure clamping of workpiece and correct pilot seating before drilling.
