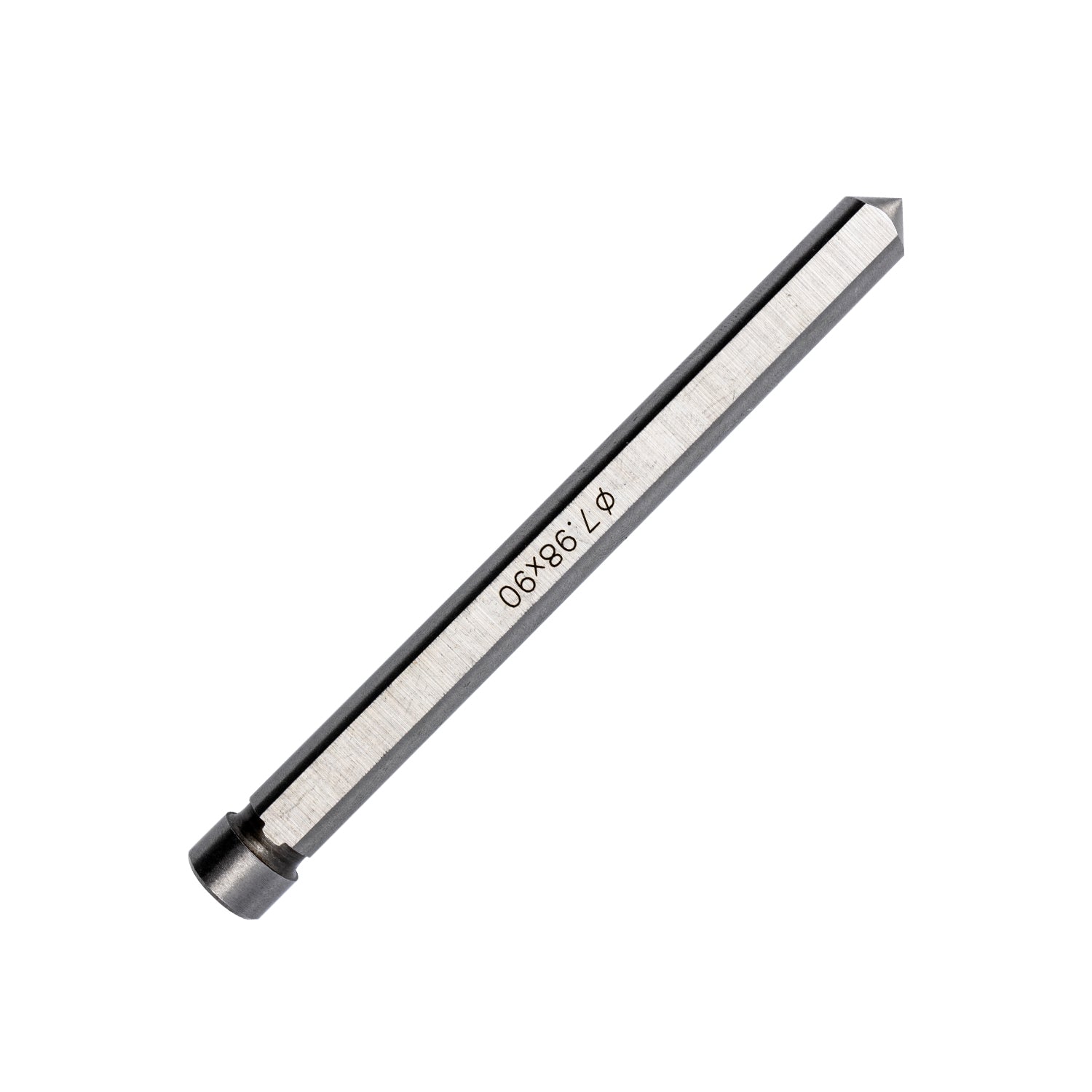

PILOT PIN TCT CUTTER 18 - 102MM X 35MM 7.9 X 90MM BROACH CUTTERS
Features
- Compatible with TCT annular cutters in the 18 mm to 102 mm diameter range.
- Supports a cutting depth of 35 mm.
- Shank size: 7.9 mm × 90 mm — fits standard drill chucks and arbors.
- Precision pilot drill guides the cutter and reduces wander at hole start.
- High-strength steel construction for durability in heavy-use scenarios.
Benefits
- Broad compatibility: Covers large variety of cutter sizes with a single mandrel.
- Accurate results: Pilot drill ensures precise centering and straight holes.
- Reliable operation: Designed for efficient ejection of the slug after drilling.
- Durable build: Hardened steel mandrel resists wear and maintains alignment over time.
Extra Information
- Use with TCT annular cutters sized 18 mm to 102 mm and cutting depth up to 35 mm.
- Ideal for magnetic drills, core drilling systems, and heavy fabrication work in metal or steel applications.
- Regular lubrication of the pilot drill and checking of the mounting thread help maximise service life.
Pro Tip
- Apply a suitable lubricant when drilling steel or stainless surfaces to extend tool and cutter life.
- Replace mandrel if pilot drill becomes worn or oversized, as this can affect hole accuracy and cutter life.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / SKU | TCAC0005-02 |
| Product Type | Pilot Pin / Arbor for TCT Annular Cutters |
| Compatible Cutter Diameter | 18 mm – 102 mm |
| Max Cutting Depth Supported | 35 mm |
| Shank Size | 7.9 mm × 90 mm |
| Material | Hardened Steel with Pilot Drill |
| Typical Use | Broach drilling with TCT cutters, metal fabrication, structural steel work |
Safety
- Disconnect power or the drill tool before installing or removing the mandrel.
- Wear appropriate eye, ear and hand protection when drilling steel or large-diameter holes.
- Ensure correct mounting and secure assembly before starting the drill to avoid vibration or misalignment.
- Observe maximum cutter RPM and feed pressure to prevent mandrel or cutter damage.
