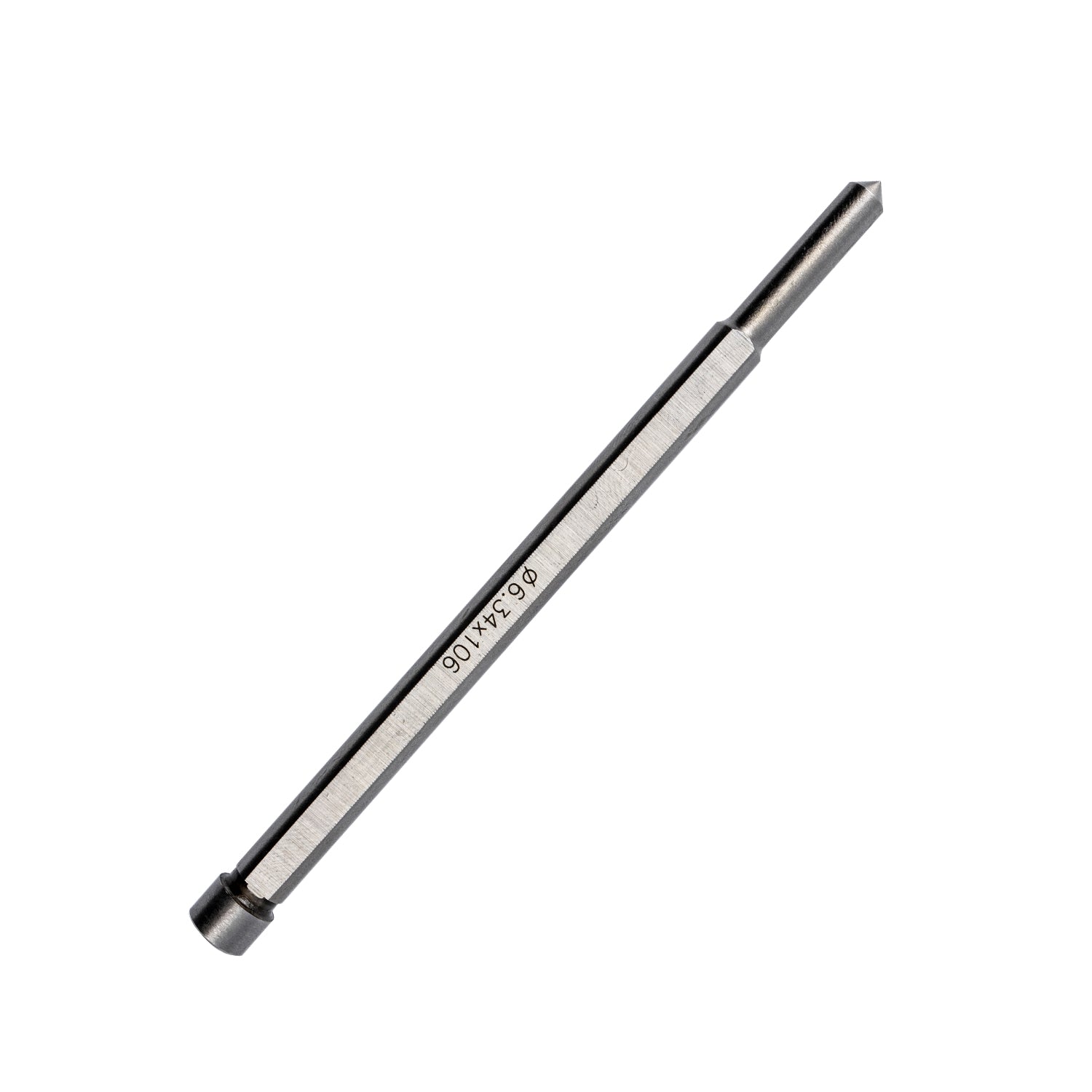

PILOT PIN TCT CUTTER 12 - 17MM X 55MM 6.3 X 106MM BROACH CUTTERS
Features
- Compatible with TCT annular cutters from 12 mm to 17 mm diameter.
- Designed for cutters with a 55 mm cutting depth.
- Made from high-speed steel (HSS) for precision and durability.
- Ensures accurate hole positioning and reliable centering.
- Enables smooth slug ejection for efficient drilling cycles.
- Corrosion-resistant finish enhances tool longevity.
Benefits
- Precision guidance: Maintains perfect alignment when starting holes.
- Clean results: Reduces wandering and improves the quality of drilled holes.
- Improved efficiency: Aids in quick, consistent slug ejection after drilling.
- Long service life: Engineered from quality steel to withstand high cutting loads.
Extra Information
- Compatible with Tork Craft TCT broach cutters and other magnetic drill systems using 6.3 mm × 106 mm pilot pins.
- Ideal for use in construction, fabrication, and metalworking applications.
- Use cutting oil during operation to extend tool life and ensure clean cutting performance.
Pro Tip
- Apply a small amount of lubricant to the pilot pin to prevent sticking during high-speed operations.
- Replace worn pilot pins promptly to maintain accuracy and prevent cutter damage.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / SKU | TCAC0005-01 |
| Product Type | Pilot Pin for TCT Annular Cutters |
| Compatible Cutter Diameter | 12 mm – 17 mm |
| Cutting Depth | 55 mm |
| Overall Length | 106 mm |
| Shank Diameter | 6.3 mm |
| Material | High-speed steel (HSS) |
| Application | Guiding and slug ejection for TCT annular cutters |
| Compatibility | Tork Craft and most standard broach cutters |
Safety
- Disconnect power before changing pilot pins or cutters.
- Use appropriate cutting fluid to reduce heat buildup.
- Wear eye and hand protection when operating magnetic drills.
- Ensure pilot pin is properly seated before drilling to prevent misalignment.
