Battery Charger - Dual Port
Voltage: 20V DC
Input Voltage: 100 - 240V ~ 50 - 60Hz
Output Voltage: 20V DC- 4.5A (x2)

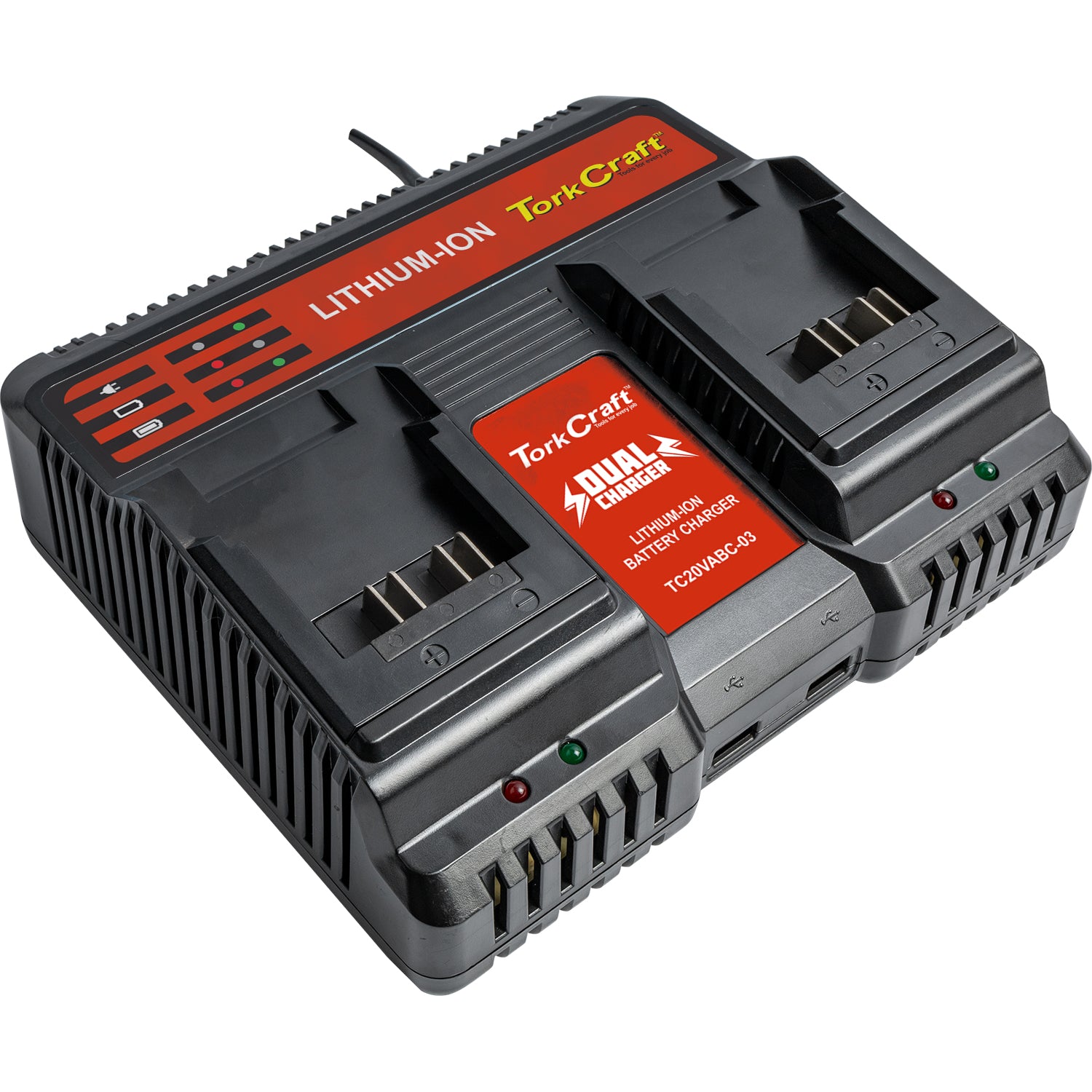

This Tork Craft Battery Charger is a device designed to charge 20V batteries for cordless power tools. It features two charging ports, allowing you to charge two batteries simultaneously. The charger is compatible with 220V power outlets, making it suitable for use in various regions.
Application:
- Compatible with all Tork Craft 20V Cordless tool batteries
Assembly
- Connect the mains plug to a standard main socket. The green LED Lights up. The product is ready for operation.
- Slide the rechargeable battery as far as it will go with the correct polarity into the charging compartment. The red LED lights up and the green LED goes off, it is indicating that the battery is being charged.
| Description | Specification |
| Packaging Type | Cardboard Colour Box |
| Material | Body: Plastic |
| Finish | Black plastic accents |
| Charger Dimensions | 200(L) x 180(W) x 70(H)mm |
| Charger Weight | 1170g |
| Voltage | 20V DC |
| Charger Type | Dual charger |
| Cable Length | 1.8m |
| Battery type | Lithium ion (Li-ion) |
| Input Voltage | 100 - 240V ~ 50 - 60Hz |
| Output Voltage | 20V DC- 4.5A (x2) |
| USB Output | 5V/DC, 1A (x2) |
| Fuse | T6.3A (non-replaceable) |
| Battery charging time |
|
| European - VDE 2 pin standard plug | |
| LED charging status indicator lights | |
| Battery fault detection |
