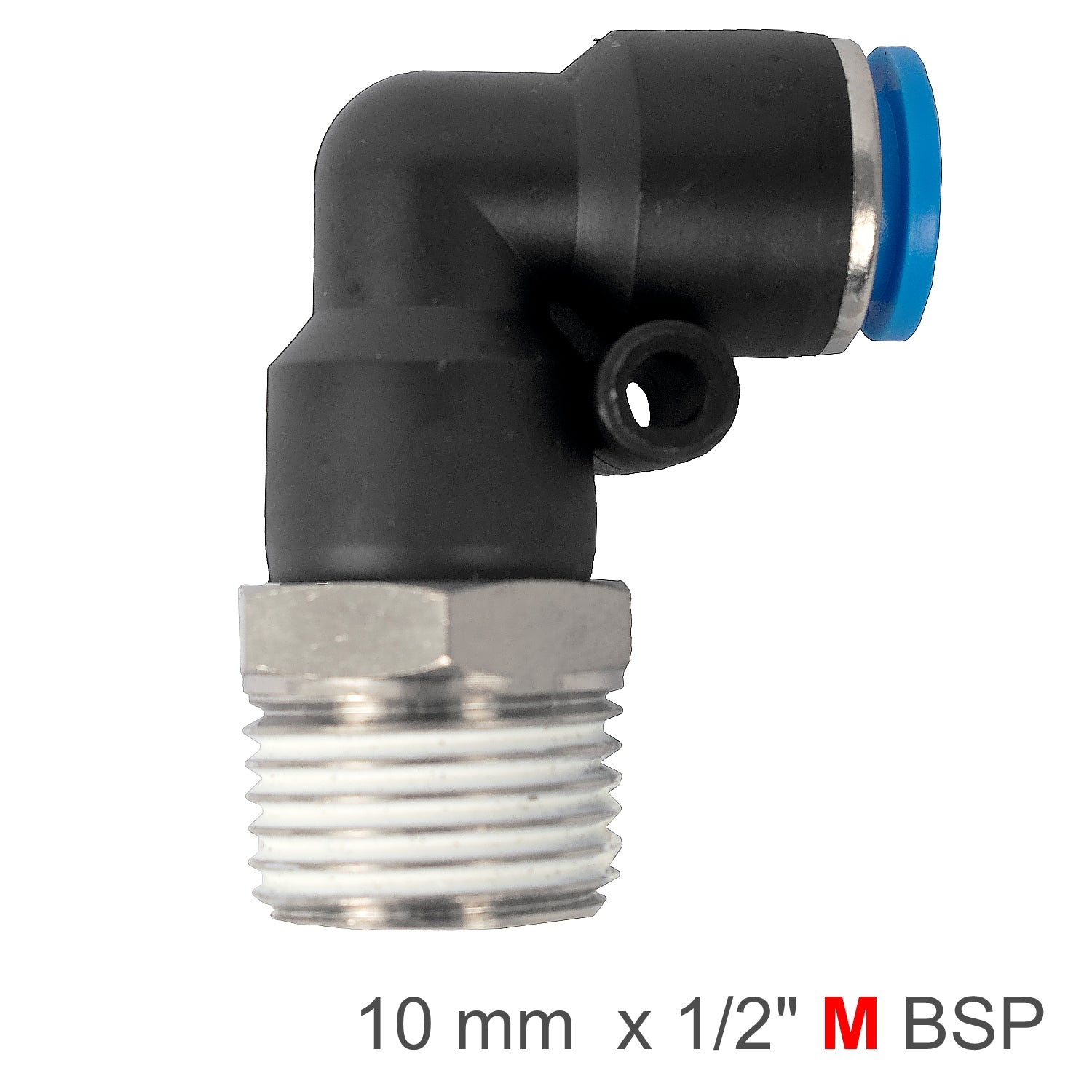

AirCraft PU Hose Fitting Elbow 10mm-1/2" M BSP
At a Glance: 10mm push-in tube connection to 1/2" Male BSP thread in a compact 90° elbow.
When you’re running 10mm tubing and working with a larger port size, this elbow keeps your air line routing neat and stress-free. The AirCraft PU Hose Fitting Elbow 10mm-1/2" M BSP connects 10mm pneumatic tubing to a 1/2" BSP female port using a quick push-in connection, creating a clean 90° turn right at the connection point. It’s ideal for higher-flow compressed-air plumbing on compressors, FRLs, regulators, manifolds and workshop air systems where straight fittings would force awkward bends or strain the tubing.
Fast push-in pneumatic connections built for tidy routing, quick maintenance and reliable performance in workshop and industrial air systems.
Features
- Push-in 10mm tube connection Tool-free tubing fitment for quick installs and fast tube changes.
- 1/2" Male BSP thread Suits common BSP ports on air service units, manifolds and pneumatic equipment.
- 90° elbow design Routes tubing neatly around corners to reduce kinking and stress.
- Compact body Helps keep installations tidy in cabinets, panels and tight spaces.
Benefits
- Cleaner routing: Keeps 10mm tubing runs neat and reduces strain at the port connection.
- Quicker maintenance: Push-in connection speeds up servicing and tubing replacement.
- Reduced leak potential: Correct tube insertion and proper thread sealing help minimise air loss.
Extra Information
- Designed for 10mm OD PU or nylon pneumatic tubing. Use a clean, square-cut tube end for best sealing.
- Thread check: This fitting is 1/2" Male BSP. Confirm your port thread type (BSP vs NPT) before fitting.
- Use a suitable thread sealant (PTFE tape or pneumatic thread sealant) as required by your application and equipment guidelines.
Pro Tip
- Push the tube in firmly until it bottoms out, then tug gently to confirm it’s locked—finish with a quick soapy-water leak test before full pressurisation.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SPL10-04 |
| Product Type | Push-In Pneumatic Elbow Fitting |
| Tube Size | 10mm (OD) |
| Thread Type | BSP |
| Thread Size | 1/2" Male |
| Connection Angle | 90° Elbow |
| Typical Use | Compressed air / pneumatic tubing lines (PU/Nylon) |
Safety
- Isolate and depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air and pressurised lines.
- Do not over-tighten threaded connections—use correct tools and a suitable thread sealant to prevent damage and leaks.
- After installation, leak-test the joint before returning equipment to service.
- Use only within the rated limits of your pneumatic system and compatible tubing/materials.
