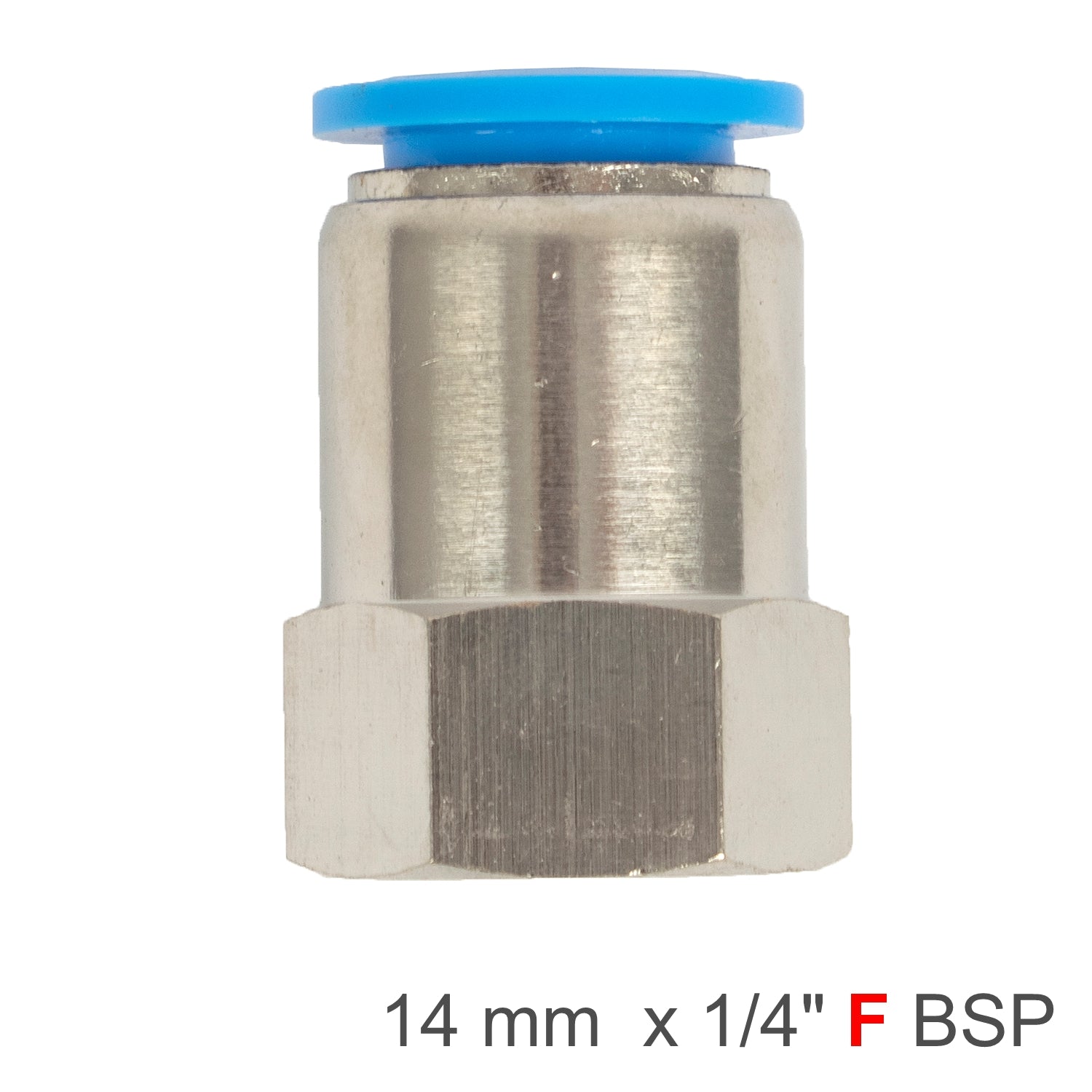

AirCraft PU Hose Fitting Straight Connector 14mm - 1/4" F BSP (SPCF14-02)
At a Glance: Push-in 14mm tube x 1/4" BSP female straight connector for quick, tidy pneumatic connections.
The AirCraft SPCF14-02 straight connector is a clean, time-saving way to connect 14mm PU tubing to a standard 1/4" BSP threaded connection. The push-in collar grips the tube securely for fast installation and easy tube changes, while the 1/4" BSP female thread couples directly onto a matching 1/4" BSP male port. It’s ideal for regulators, manifolds, filter blocks and pneumatic accessories where neat routing and reliable sealing are essential—especially in busy workshop compressed air setups.
Screw onto a 1/4" BSP male port, push in the 14mm tube, and you’ve got a tidy, service-friendly connection that’s easy to maintain.
Features
- Push-in connection for 14mm tube Quick tube insertion with a release collar for easy tube removal.
- 1/4" BSP female thread Couples directly onto common 1/4" BSP male ports on pneumatic equipment.
- Straight fitting profile Keeps hose routing direct and helps minimise tight bends.
- Durable metal body Built for workshop use and repeat servicing.
Benefits
- Faster installs and servicing: Push-fit tubing saves time during builds, repairs and upgrades.
- Neater pneumatic routing: Cleaner hose runs improve access, troubleshooting and overall layout.
- Reliable everyday performance: Secure tube grip helps reduce leaks and accidental pull-out.
Extra Information
- Designed for 14mm outside diameter PU/nylon pneumatic tubing.
- Female thread is 1/4" BSP (fits a matching 1/4" BSP male port).
- For best sealing and grip, cut tubing square and clean and push fully home until it bottoms out.
Pro Tip
- With larger tube sizes, make sure the tube is fully seated and supported—avoid pulling tension on the line to keep the seal consistent and long-lasting.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SPCF14-02 |
| Product Type | PU Hose Fitting (Push-In) - Straight Connector (Female) |
| Tube Size | 14mm (OD) |
| Thread Size | 1/4" BSP Female |
| Connection Style | Straight |
| Typical Use | Regulators, manifolds, filter blocks and workshop compressed air systems |
Safety
- Wear eye, ear and dust protection when working around compressed air systems.
- Depressurise the air line before installing, removing, or releasing tubing from the fitting.
- Check for leaks after installation using soapy water and re-seat connections if bubbles appear.
- Do not use damaged tubing—replace split, kinked, or worn tube to prevent blow-off under pressure.
