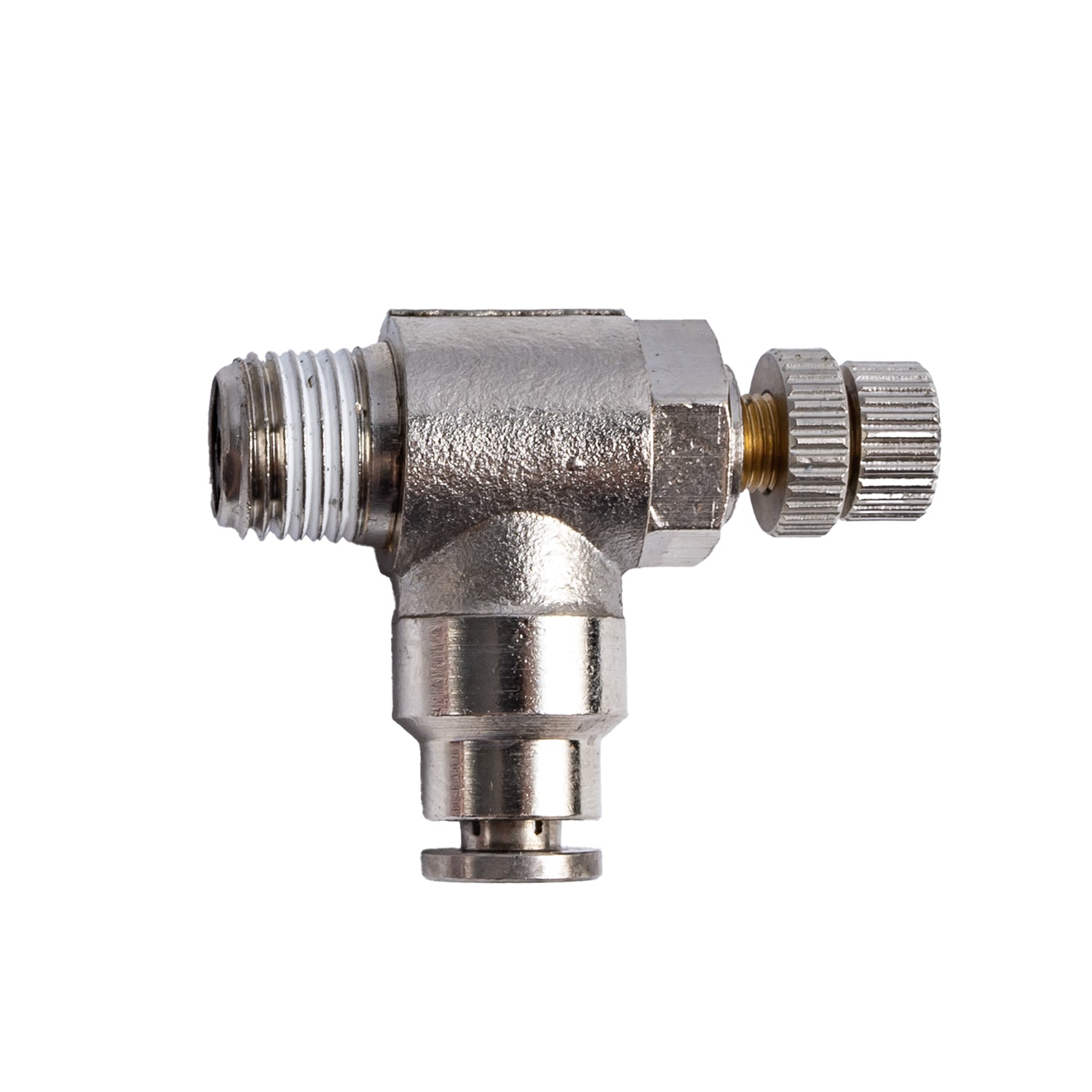

AirCraft Metal Flow Control 4mm x 1/8" Male Thread (SG MSC04-01)
At a Glance: Precision metal flow control valve with 4mm push-in tube port and 1/8" male thread—fine-tune air speed and stability.
When your pneumatic setup needs a little finesse (instead of full send), the AirCraft SG MSC04-01 Metal Flow Control gives you smooth, adjustable control over airflow. Built for 4mm PU air tubing and a 1/8" male threaded connection, it’s ideal for managing actuator speed, reducing air blast, and keeping your air tools and circuits behaving like well-trained robots. Compact, dependable, and satisfying to adjust—because “just enough air” is a real engineering love language.
Make tiny airflow changes that actually stick—perfect for dialing in consistent cylinder movement, reducing jolts, and improving control where smooth motion matters.
Features
- Adjustable flow control Allows accurate tuning of airflow for smoother pneumatic performance.
- 4mm push-in tube connection Quick-fit installation for fast line routing and easy maintenance.
- 1/8" male thread Standard threaded connection for common pneumatic ports and manifolds.
- Metal construction Built for workshop durability and dependable long-term use.
Benefits
- Smoother motion control: Helps reduce jerky cylinder movement and improves repeatability.
- Less air waste and noise: Restrict airflow to what you need instead of venting “extra enthusiasm”.
- Faster troubleshooting: Easy adjustment makes it simpler to tune systems and stabilise performance.
Extra Information
- Ideal for pneumatic cylinders, air circuits, and compact control panels where controlled airflow is required.
- Ensure tubing is clean and square-cut for the best seal and reliable performance.
- Many flow control valves are directional—check any body markings/arrow (if present) to confirm the intended flow direction.
- Admin info (not for specs table): Product weight ±0.05 kg; Dimensions ±45 x 18 x 18 mm.
Pro Tip
- For the most stable control, install the flow control as close as practical to the actuator/cylinder and adjust gradually while the system is running at working pressure.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG MSC04-01 |
| Product Type | Metal Flow Control Valve |
| Tube Size | 4mm |
| Thread Size | 1/8" |
| Thread Type | Male |
| Typical Use | Pneumatic Flow / Speed Control (Compressed Air) |
| Body Material | Metal |
Safety
- Always depressurise the air system before installation, removal, or adjustments near moving parts.
- Wear eye protection when working with compressed air lines and fittings.
- Do not over-tighten threaded fittings—use appropriate sealing method (as required) and tighten to a secure fit.
- After installation, perform a leak test and confirm correct airflow direction before returning equipment to service.
