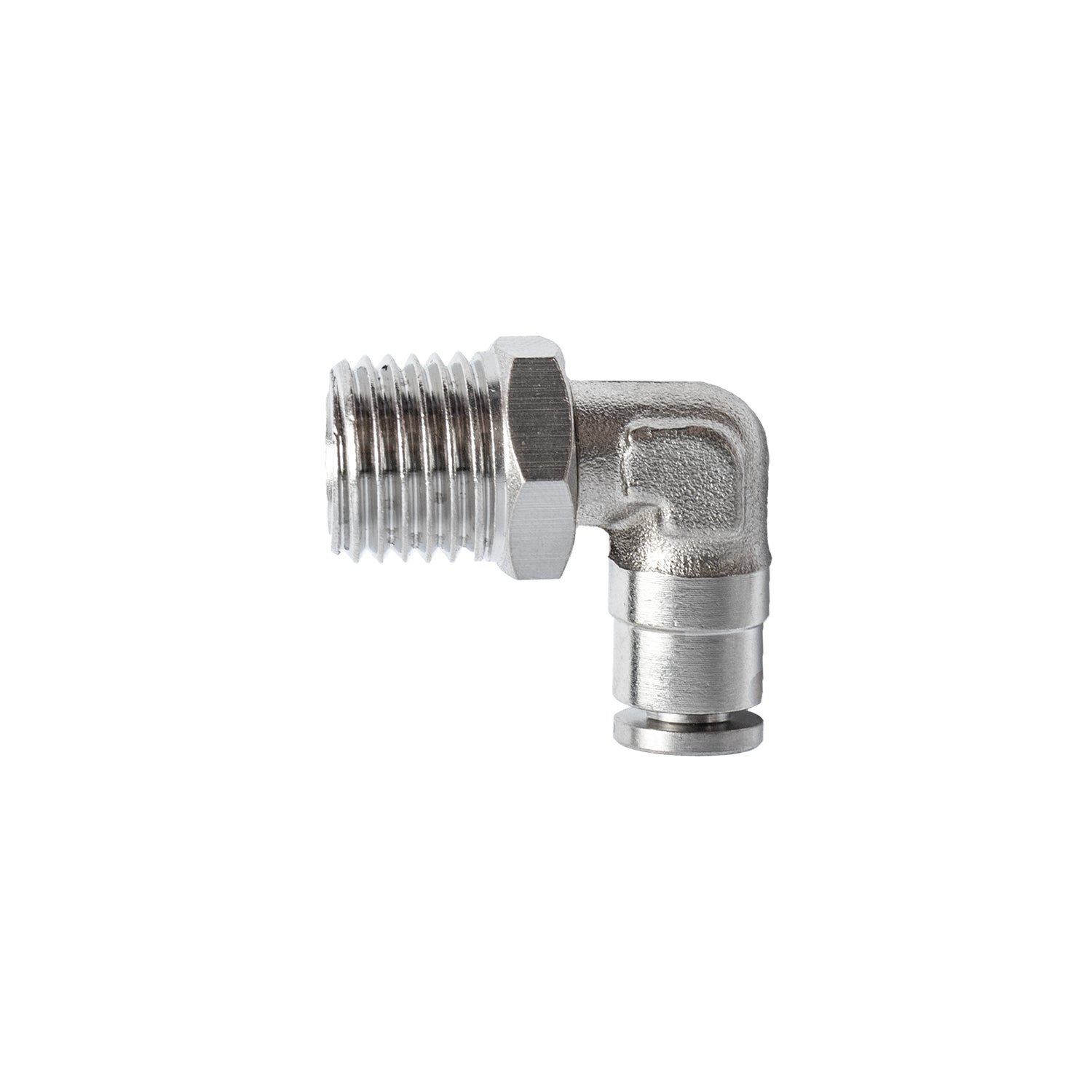

AirCraft Metal PU Fitting Elbow 4mm x 1/4' Male (SG MPL04-02)
At a Glance; Compact 90° elbow with 4mm push-in tube connection and 1/4" male thread.
The AirCraft SG MPL04-02 Metal PU Fitting Elbow is a tidy, workshop-ready solution for turning a 4mm pneumatic line into a 1/4" threaded port without the hassle of bulky bends. It connects 4mm pneumatic/PU tubing to a 1/4" male threaded outlet, giving you a clean 90° turn where space is tight and a neat installation matters. Ideal for compressed-air systems on regulators, manifolds, valves, cylinders and general pneumatic equipment, this metal elbow helps keep your air lines secure, organised and leak-resistant.
Designed for compact pneumatic layouts, this elbow connector keeps routing clean while providing a strong threaded connection to your air system components.
Features
- 90° elbow design Routes tubing neatly around corners in compact pneumatic installations.
- 4mm push-in tube connection Fast, secure tube fitment for efficient assembly and servicing.
- 1/4" male threaded outlet Suits common pneumatic ports on manifolds, regulators and air control components.
- Metal construction Durable, workshop-ready body for everyday compressed-air use.
Benefits
- Neater routing; Keeps air lines tidy and reduces awkward bends where space is limited.
- Faster tube changes; Push-in connection makes maintenance quick and straightforward.
- Dependable sealing; Secure tube grip and solid threaded connection help reduce leak risk.
Extra Information
- Use clean, round 4mm pneumatic/PU tubing and ensure the cut is square before inserting.
- Apply suitable thread sealant/PTFE tape to the male thread if required by your application and port type.
- After inserting the tube fully, do a gentle pull-back test, then pressurise and check for leaks with soapy water.
Pro Tip
- Before inserting the tube, wipe the last few centimetres clean—dust and oil can compromise push-fit sealing.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG MPL04-02 |
| Product Type | Metal PU/Pneumatic Push-In Elbow Fitting |
| Tube Size | 4mm |
| Thread Type | Male |
| Thread Size | 1/4" |
| Angle | 90° Elbow |
| Material | Metal |
Safety
- Always depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air and pressurised lines.
- Do not exceed your system’s rated pressure and inspect tubing regularly for damage or wear.
- Pressurise slowly after installation and check for leaks using soapy water (never use open flames).
