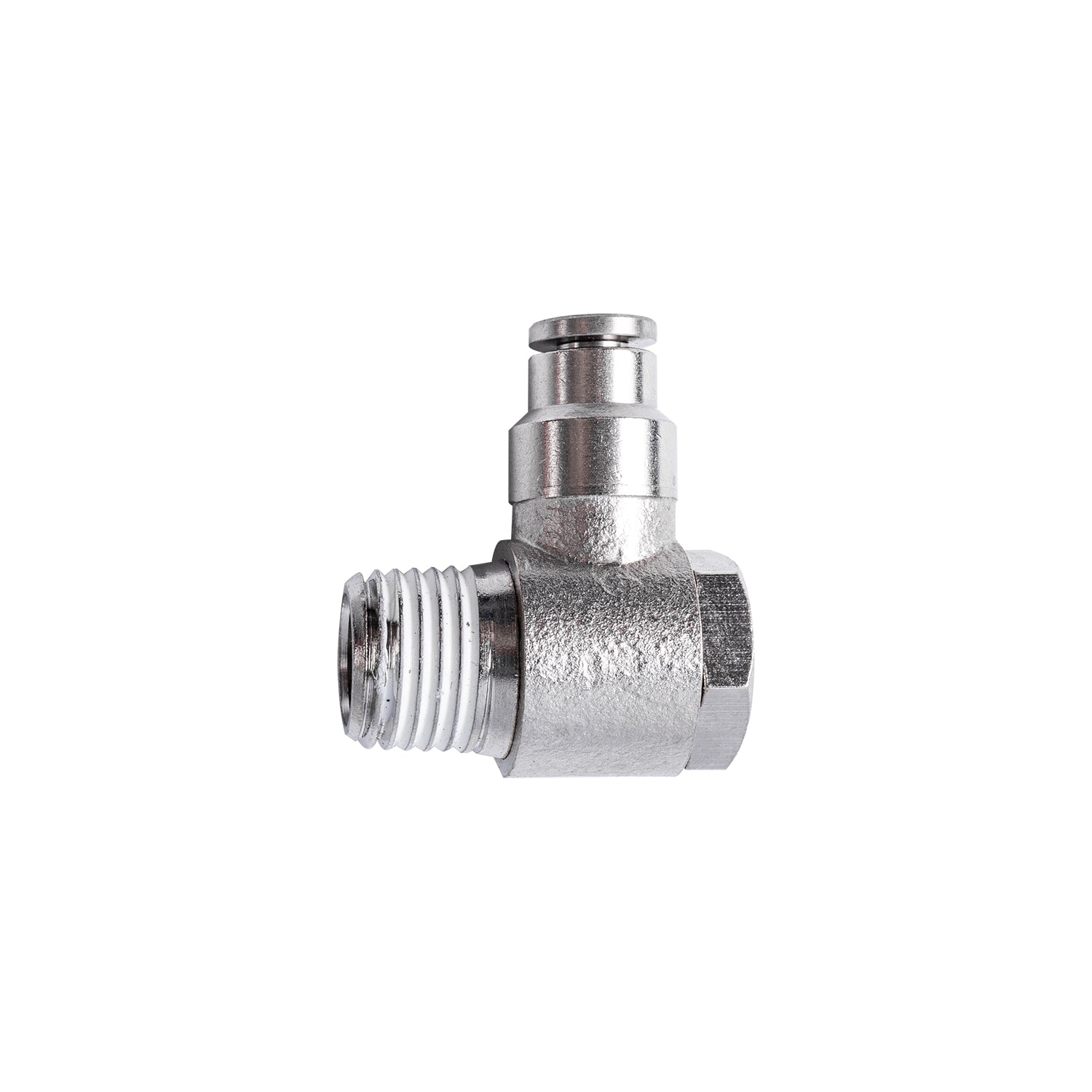

AirCraft Metal Swivel Elbow 4mm x 1/4' Male (SG MPH04-02)
At a Glance; 4mm push-in tube connection to 1/4" male thread in a compact 90° swivel elbow.
The AirCraft SG MPH04-02 Metal Swivel Elbow is built for clean, confidence-inspiring pneumatic installations where space is tight and air lines must turn neatly. It connects 4mm pneumatic tubing to a 1/4" male threaded port, and the swivel design allows you to orient the elbow perfectly after tightening—helping prevent tube twist and awkward line stress. A solid choice for compressed-air setups on valves, regulators, manifolds, cylinders and workshop equipment where a tidy route and a reliable seal matter.
A durable elbow connector that keeps air lines neat, reduces strain and allows easy alignment for professional pneumatic layouts.
Features
- Swivel elbow body Rotates for easy alignment after tightening, improving routing and reducing tube twist.
- 4mm push-in tube connection Quick, secure tubing installation for efficient assembly and servicing.
- 1/4" male threaded outlet Fits common pneumatic ports on regulators, manifolds and air control components.
- Metal construction Robust, workshop-ready durability for everyday compressed-air use.
Benefits
- Cleaner routing; Turns corners neatly in compact spaces without kinks or ugly bends.
- Less stress on tubing; Swivel alignment helps reduce strain that can cause leaks or premature wear.
- Faster maintenance; Push-in connection speeds up installations, replacements and system changes.
Extra Information
- Use a suitable thread sealant/PTFE tape on the male thread if required by your application and port type.
- For best results, cut pneumatic tubing square and keep the tube end clean before inserting.
- After insertion, pull back gently to confirm the tube is locked, then pressurise and check for leaks with soapy water.
Pro Tip
- Route the tube first, then tighten and swivel-align the elbow—your installation will look sharper and the tube will last longer.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SG MPH04-02 |
| Product Type | Metal Pneumatic Swivel Elbow Fitting |
| Tube Size | 4mm |
| Thread Type | Male |
| Thread Size | 1/4" |
| Angle | 90° Elbow |
| Material | Metal |
Safety
- Always depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air and pressurised lines.
- Do not exceed your system’s rated pressure and inspect tubing for cracks, cuts or wear.
- Pressurise slowly after installation and check all joints for leaks using soapy water (never use open flames).
