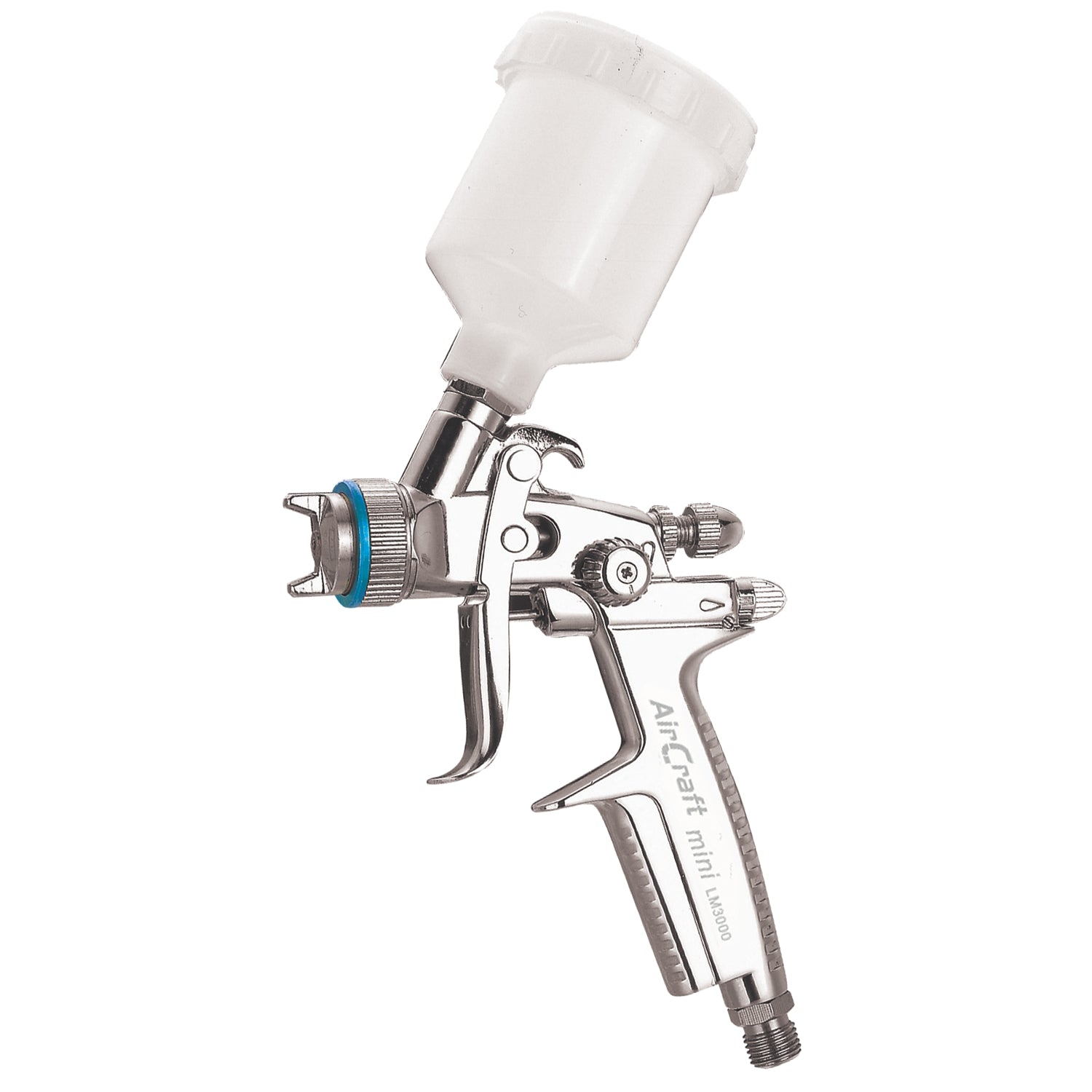

LVMP gravity feed touch up spray gun - 0.8mm
The professional touch up spray gun features the LVMP technology that has an improved transfer efficiency compared to conventional spray guns. It is also a 'fast' spray gun, which means that it needs to be moved/handled faster.
Ideal for spraying large quantities of material.
Features:
- Comfortable, balanced and easy to control by having the gravity cup angled slightly backwards
- Light in weight, thanks to the aluminium body
- Easy spray pattern and fluid control adjustment
- Stainless steel fluid tip and needle
- Rotatable aircap to change spray pattern direction
- Non-drip device on gravity cup
Technology difference
| Description | Specification |
| Working pressure | 29 Psi (2.0 Bar) |
| Cup capacity | 125 ml |
| Feed type | Gravity feed |
| Airflow consumption | 90 - 150 l/min |
| Air inlet hread | 1/4 BSP |
| Nozzle/Needle | Ø 0.8mm |
| Pattern width | 10 cm |
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
Download the Spec Sheet:
View the Spec Sheet:
Download the Exploded view:
View the Exploded view:
